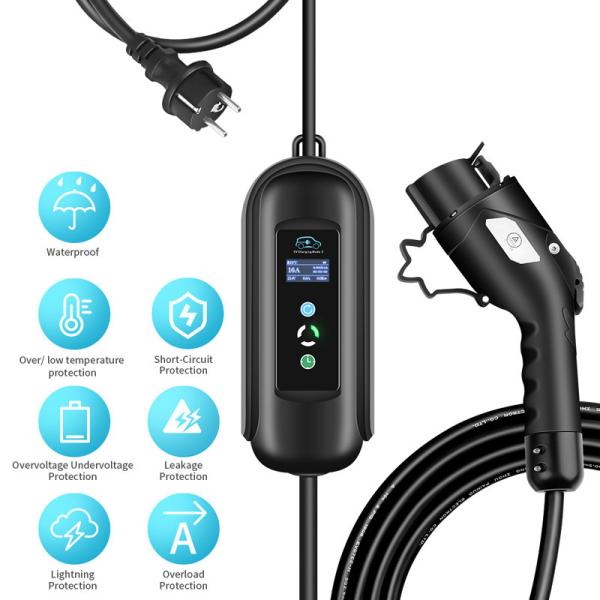

Type 2 22KW 11KW OCPP Car EV Charger Level 2 At Home Charging Station
Type 2 22KW 11KW OCPP Car EV Charger Level 2 At Home Charging Station
Specifications
Product Name :
Level 2 EV Charging Station
Communication method :
GPRS WIFI Ethernet
Charging Capacity :
Up To 22KW
Input Voltage :
220V-380V
Installation :
Wall-mounted/floor-standing
Product Dimension :
280*120* 400mm(W*D*H)
Function :
Voltage Monitoring, temperature monitoring, LCD SCREEN, AUTOMATICAL REPAIR, leakage protection
Charging Standard :
level 1 level 2 level 3
Description

Type 2 11KW OCPP Level 2 EV Charging Station Wall Box 5 Meters Cable

Wall-mount three phase AC charger. It is easy to install, stable in performance, and provides complete protection function. The LCD display can show the charging status, user friendly. It supports 4G/Ethernet/WiFi communication with party system for remote monitoring/maintain/upgrade. The charger can optionally equip with a column support installed outdoors.
Simple installation: no complicated installation process is required, it can be used when power is connected. △ 4.3 Inch LCD Display: LCD screen can display the real-time charging status, including time, voltage, current, power and temperature. IP55, Strong and Durable: Support outdoor harsh environment,waterproof and dust-proof. Rugged shell which could resist the rolling and crash of the car. Easy to install and use: The installation process is simple, payment is convenient and fast, supports IC card swiping. Fully compatible with all EV in the market.
Power supply
3P+N+PE
Input voltage
400VAC±10%(50Hz±5Hz)
Output voltage
400VAC±20%
Output current
16A/32A
Output power
11KW/22KW
Electric energy measurement
Accuracy Class 1 energy meter
HMI
4.3 inch LCD
Plug cable length
5m (Custom)
Protection functions
Over voltage/under voltage protection, over current/short circuit protection, over/under temperature protection, lightning
protection, emergency stop protection, RCD Type A and DC 6mA RCD leakage protection.
Communication
Ethernet/WIFI/4G LTE
Protocol
OCPP-1.6 (JSON)
Insulation resistance
1000VDC≥10MΩ
Dielectric Strength
AC2500≤10mA(input/output to ground)
Connector type
IEC 62196-2
Standards
IEC 61851-1, IEC 62196-1/2
Shell color
Metallic grey
Shell material
(PC+ABS)-Blend
Installation method
Wall-mount/Pole-mount
Dimensions(W*H*D)
300mm*420mm*153.8mm
Ingress protection
IP55
Operating temperature
-30℃-60℃
Storage temperature
-40℃-80℃
Altitude
≤2000m
Humidity
≤95%, non-condensing

Type 2 22KW 11KW OCPP Car EV Charger Level 2 At Home Charging Station
