OCPP 2.0.1 3 Pin Plug Electric Car Charger Domestic Electric Car Charging Point 7kw
OCPP 2.0.1 3 Pin Plug Electric Car Charger Domestic Electric Car Charging Point 7kw
Specifications
Product Name :
EVSE Charger
OCPP protocol :
1.6 or 2.0.1
Charging Standards :
IEC 62196-2, SAE J1772
Cable Length :
5m or custom length
Operating Temperature :
-30 ℃ To 55 ℃
IP :
IP65
Function :
Voltage Monitoring, temperature monitoring, LCD SCREEN, AUTOMATICAL REPAIR, leakage protection
Charging Standard :
level 1 level 2 level 3
Description

J1772 EVSE Type1 Level 2 Station EV Wall Box Charger For Leaf Charging

✔ Press the E-stop button to stop operation at any moment, especially in the event of a malfunction.

✔ The Wallbox comes with its own MCB inside, and the customer's power distribution can be connected directly to the Wallbox.

Power Specification
AC Power Input Rating
SAE Standard
IEC Standard
AC Level 2
1-Phase
3-Phase
240V
220V ± 15%
380V ± 15%
AC Power Output Rating
3.5kW/16A
3.5kW/16A
11kW/16A
7kW/32A
7kW/32A
22kW/32A
10kW/40A
N/A
43kW/63A
Rated Frequency
50/60Hz
50/60Hz
50/60Hz
Connector Type
SAE J1772 (Type 1)
IEC 62196-2 (Type 2)
User Interface & Control
Charging Control
Plug and Play, RFID Card or App

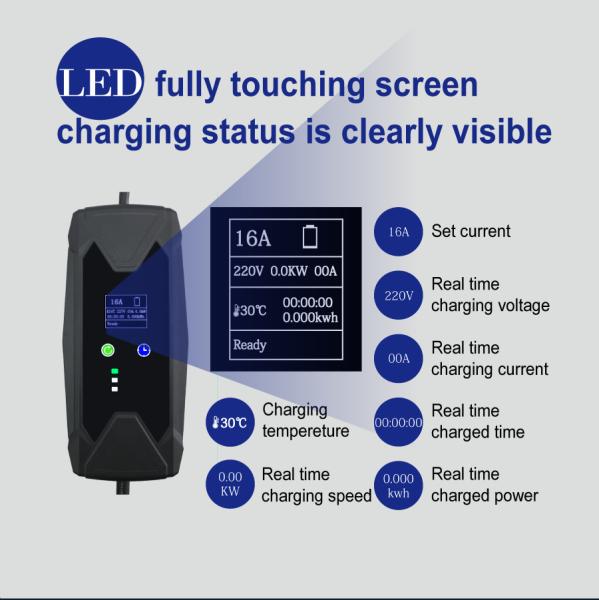

Display Screen
4.3-inch LCD Screen
Voice Prompt (Optional)
Voice guide of the charging process in English
Indicators
4 LED indicators-Power/Connect/Charging/Fault
External Communication
LAN (RJ-45) and Wi-Fi
OCPP Protocol (Optional)
1.6 or 2.0.1
Environmental
Storage Temperature
-40 to 75℃ (-40 to 167℉) ambient
Operating Temperature
-30 to 55℃ (-22 to 131℉) ambient
Operating Humidity
Up to 95% non-condensing
Altitude
≤2000m
Protection
Protection Ratings
IP 65
RCD
Type A / Type B
Over Voltage Protection
Yes
Under Voltage Protection
Yes
Over Load Protection
Yes
Short Circuit Protection
Yes
Earth Leakage Protection
Yes
Ground Protection
Yes
Over-temp Protection
Yes
Surge Protection
Yes
Wallbox Mechanical
Dimension (H x W x D, mm)
410 x 260 x 164
Weight
1-phase＜10kg; 3-phase＜12kg
Charging Cable Length
5m or Customize Length
Enclosure Material
Front-Panel: Tempered Glass; Back-cover: Metal Plate
Mounting Pole Mechanical (Optional)
Dimension (H x W x D, mm)
1400 x 200 x 100
Weight
＜8kg
Enclosure Material
Metal

Attention to know

EV chargers are splash, water and dust resistant and have been tested under strictly controlled laboratory

conditions to achieve an IP65 rating in accordance with IEC standard 62196. However, the resistance to splashes, water and dust is not permanent and may weaken over time under normal use. Damage caused by liquids is not covered by the warranty.

To prevent damage to your charger from liquids, please avoid the following situations :

1. Exposing the charger to pressurised water or high velocity water flow.

2. Intentionally submerging the charger in water.

3.Operating the charger beyond the recommended temperature range or in extremely humid environments

4. Dropping the charger or subjecting it to other shocks.

5. Disassemble the charger, including removing the screws.

If the charger comes into contact with liquid, turn off all power until it is completely dry.

Placing the unit in front of a fan so that cold air is blowing directly on the charging connector may help to speed up the drying process.

Do not use an external heat source to dry the charger, or insert foreign objects such as cotton swabs or paper towels into the charging port.
