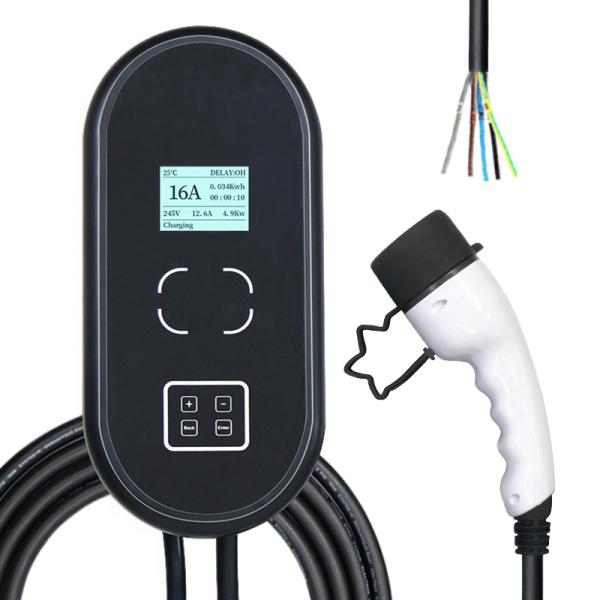

8A Outdoor Electric Portable EV Charger For Home TPE Cable IEC 621962
8A Outdoor Electric Portable EV Charger For Home TPE Cable IEC 621962
Specifications
Product Name :
Portable Ev Charging Box
Charging Port :
no usb
Rated Current :
8-16A
Pin :
Cooper Alloy + Sliver Plating
Charging Standard :
Type2/ IEC 62196-2
IP protection class :
IP 65 ( Working Condition)
Connection :
L+N+PE
Shell Material :
PC+PBT
Description

16A Single Phase Type 2 Adjustable Portable EV Charging Box

Control box

Leakage protection
Over voltage/under voltage protection
Over load protection
Lighting protectionAmperew options
1. Fix ampere 10A
2. Fix ampere 16A
3. Fix ampere 32A
4. Adjustable 6-8-10-13-16A
5. Adjustable 10-16-20-24-32A
6. Adjustable 10-16A
7. Adjustable 6-8-10-13A
8. Adjustable 6-8-10-15A
9. Adjustable 6-8-10A

Product Name:
EV portable charger
Application Standard:
IEC 62196-1-2016/IEC62196-2-2016/IEC62752
Certification:
CE/RoHS
UV Resistant:
Yes
Warranty:
12 months
Cable option:
TPE/TPU
Rated current:
16A
Operation voltage:
250V
Insulation resistance:
> 1000M Ω (DC500V)
Withstand voltage:
2000V
Terminal temperature rise:
<50K
Contact impedance:
0.5m Ω Max
Cable specification
3*2.5mm2+2*0.5mm2
Cable color
:black/orange optional

CAUTION


Don't submerge the EV charging cable in water.
Don't step on, fold, or knot the cable.
Don't drop the EV charging box or place a heavy object on it.
Don't place the charging cable near a high-temperature object when charging.
Don't operate the EVSE in temperatures beyond its operating range of-25°C to 55°C.
Power-supply side input cable should be at least 3*2 .5mm recommended 3*4mm), with a standard 16A socket. It is suggested that the power distribution is done by the professionals.
Don't put your fingers into the charging connector when the power plug is still connected to the power.
Don't use this EV charging box when the cable is damaged. The EV charging box is only for EV charging
Don't use this device with another brand's extension cord or adaptor.
