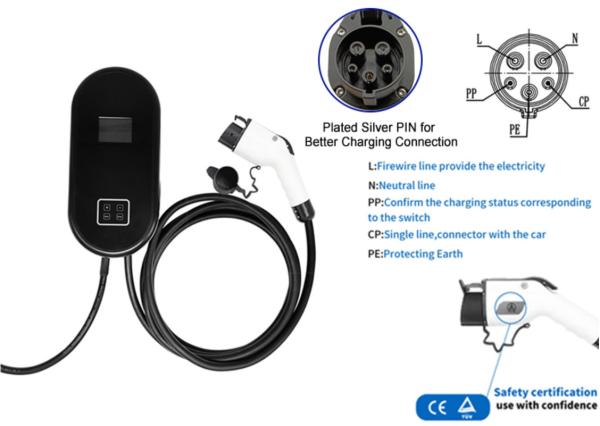

10m Cable 32A Home EV Charger Portable Level 2 Ev 62196 2
10m Cable 32A Home EV Charger Portable Level 2 Ev 62196 2
Specifications
Brand Name :
LINKIN
Place of Origin :
China
Payment Terms :
L/C, T/T
Delivery Time :
5-8 work days
Type :
Electric EV Charger For Home
Charging Port :
3 ports, 2 ports, 1port, 4 ports, Type C
cable length :
5M/10M/15M
Operating Temperature :
-30℃~50℃
Protection :
IP54 IP65 IP66
Operation mode :
touch button
Current :
6A-16A, 32A
Charging Plug :
Type 1 Type 2
Connector type :
IEC 62196 / SAE J1772
Installation :
portable ,no install
Description

CE ROHS 62196-2 Car Charging Electric EV Charger Box For Home

Specification
EV charger parameter
In put Power:
110V-250V AC
ChargingCurrent :
6A/8A/12A/14A/16A
Length :
5 meters
Output Power:
3.5KW
Mechanical life:
plug in/out > 10000 times
Impact of external force:
can afford 1m drop and 2t vehicle run over pressure
Insulation resistance:
> 1000MD (DC500V)
Terminal temperature rise:
< 50K
Housing Fire Rating:
UL94V-0

Appearance
Rated power
Type 2: 7/22kw
Type 1: 9kw
Input Voltage
Single phase:230V±10%
Three phase:400V±10%
Output Current
Type 2:7kw-single phase 32A
22kw-three phase 32A
Type 1:9kw-single phase 40A
Functional Features
User Interface
Emergency Stop/LED indicator/RFID
Safety Features
Overvoltage/undervoltage protection, overload protection,
leakage protection, Overcurrent protection
Communication
Internet Interface
Ethernet(WIFI, 3g/4gLTE as optional)

OCPP
OCPP 1.6J
Working environment
Working latitude
<2000m
Working temperature
-30° C～+55° C
Working humidity
5 %~ 95%
Protection level
IP55
Cooling
Natural cooling
Safety standards
IEC61851-1/2017
Special protection
Anti-UV protection

All products must pass the following inspection before leaving the factory:


1. Function test:


A. charging function control test,
B. communication function test,
C. insulation detection function test,
D. vehicle plug locking function test,
E. pre-charging function test


2. Charging output test:


A. four ui large constant power output test,
B. power control test,
C. low-voltage auxiliary power test,
D. output current response time test,
E. transmission out current stopping rate test,
F. efficiency test,
G. power factor test.


3. control guide test:


A. charging control state test,
B. charging connection control timing test,
C. control guide voltage limit test,
D. communication interruption test,
E. protection grounding continuity loss test,
F. connection detection signal disconnection test,
G. battery voltage and communication message does not match the test,
H. battery voltage exceeds the charger range test,
I. draw battery two protection function vehicle zu high allowable total voltage mismatch test,
J. charging demand is greater than Battery parameters test.
