Specifications
Brand Name :
LINKIN
Place of Origin :
China
Payment Terms :
L/C, T/T
Delivery Time :
5-8 work days
Product Name :
Home Car Charging Point
Cable length :
5m
Operating Voltage :
110V. 220V
Protection :
IP54
Current :
16A

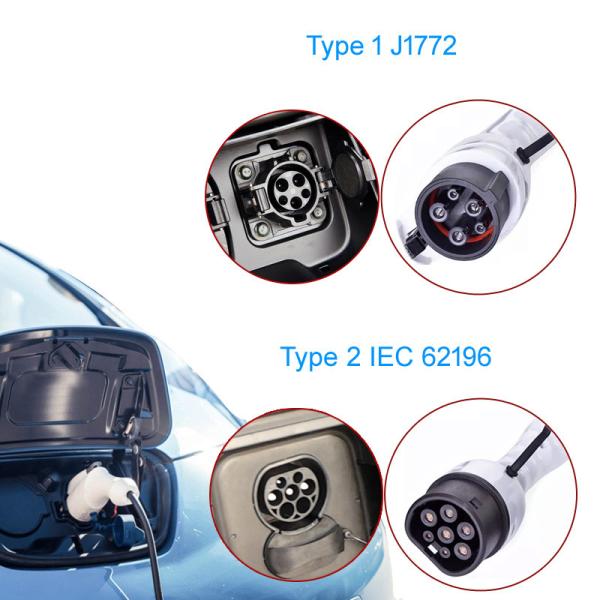

Charging Plug :
Type 1 Type 2
Charging Standard: :
SAE J1772
Color :
Black
Charging protocol :
OCPP 1.6J option
Function :
APP Control
Description

110V Home Car Charging Point Portable IP54 Level 2 Charging Station

Function

• Smart: The mobile phone APP provides functions such as search, navigation, query, and appointment of charging.
• Seflient: Support services such as swiping cards and mobile apps
• System: Advanced cloud fast charging platform system, providing big data monitoring

Mechanical Performance Mechanical Life
Coupled Insertion Force
Withstandable Impact
Material Enclosure
Cable Material
Terminals/Pins
Safety and Warranty Ingress Protection
Certification
Certification Standard
Charging Protection
Warranty
Environment Work Temperature
Work Humidity
Work Altitude

Appearance
Rated power
Type 2: 7/22kw
Type 1: 9kw
Input Voltage
Single phase:230V±10%
Three phase:400V±10%
Output Current
Type 2:7kw-single phase 32A
22kw-three phase 32A
Type 1:9kw-single phase 40A
Functional Features
User Interface
Emergency Stop/LED indicator/RFID
Safety Features
Overvoltage/undervoltage protection, overload protection,
leakage protection, Overcurrent protection
Communication
Internet Interface
Ethernet(WIFI, 3g/4gLTE as optional)
OCPP
OCPP 1.6J
Working environment
Working latitude
<2000m
Working temperature
-30° C~+55° C
Working humidity
5 %~ 95%
Protection level
IP55
Cooling
Natural cooling
Safety standards
IEC61851-1/2017
Special protection
Anti-UV protection

Feature

1. Have protection functions such as input under voltage, input overvoltage, output short-circuit, output overvoltage, output overcurrent, battery reverse connection, insulation detection, communication failure, etc.
2. Have an external running indication, which can display the real-time status.
3. Wide range of AC output voltage, high suitability of utility grid, three phase three wire input without null line in the rectifier unit.
4. Has the function of protocol self-recognition, can realize the charging for electric vehicles without limitation of brand.
5. Compatible with coaches and cars charging function

FAQ

Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.

Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.

Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.

Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.

Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.
