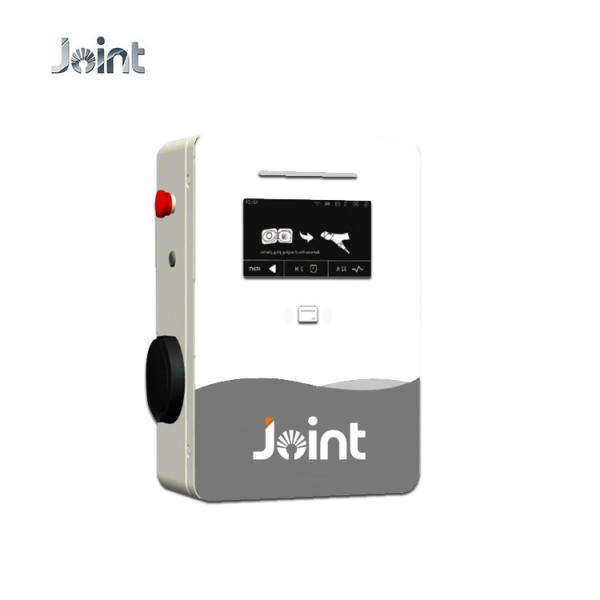

IP55 Up To 60KW DC Fast EV Charger Station With CHAdeMO
IP55 Up To 60KW DC Fast EV Charger Station With CHAdeMO
Specifications
Brand Name :
Joint
Model Number :
JNT-EVC06
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 10000-50000/SET
Payment Terms :
T/T, L/C, , Western Union
Supply Ability :
3000/Month
Delivery Time :
5-30 Days
Packaging Details :
Standard Package
Phases / Lines :
3 phase + neutral + PE
Output Voltage :
200~500V DC/400V AC/200~1000V DC
Housing Material :
Galvanized steel
Cable Length :
5M
Emergency Stop Button :
Yes
EN-GATE v.s. Backend :
Ethernet/4G/WIFI
Working Humidity :
5%~95% without condensation
Cooling Method :
Fan colloing with heat exchange technology
Safety Standard :
IEC/EN 61851-1, IEC/EN 61851-23
Installation Method :
Floor-stand
Communication Protocol :
OCPP 1.6 (JSON)
Working Altitude :
<2000M
Noise :
≦60dB
Warranty :
2 years
LED Indicator :
Yes
RFID Function :
Yes
Customised :
Yes
Frequency :
50Hz
Max. Power :
One gun working 60KW/Two gun working 120KW
Charging Outlet :
DC CCS 2
LCD Screen :
Color touch screen
RCD :
Yes
Operating Temperature :
-30 °C ~ +50 °C
Protection Grade :
IP55
MTBF :
100,000 hours
Net Weight :
185kg
Product Dimension :
750*400*1830mm (W*D*H)
External Packing :
Wooden case
Rated Power :
60KW/43KW/60KW
Charge Connector :
CHAdeMO/Type 2 cable/CCS2
Description

Up to 60KW DC Fast EV Charger Station With CHAdeMO/Type 2 cable/CCS2

AC & DC Integration
  • One charger with three outputs, simultaneously charging
  • One AC connector: Type 2, with output up to 43kW
  • Two DC connectors: CCS1/CCS2 and CHAdeMO, with output up to 60kW
Intelligent Control
  • Ethernet/4G/Wi-Fi communication all supported
  • OCPP communication protocol with CMS
  • Intelligent operation by App and cashless payment
Flexible Option
  • App operation or RFID authentication or plug and play
  • High protection grade as IP54, with IP65 optional
  • Optional POS terminal for contactless credit card payment
Secure and Safe
  • Type A RCD for residual current protection
  • MID certified AC meter and PTB certified DC meter
  • ISO15118 prepared for advanced feature of Plug&Charge

IP55 Up To 60KW DC Fast EV Charger Station With CHAdeMOIP55 Up To 60KW DC Fast EV Charger Station With CHAdeMO
