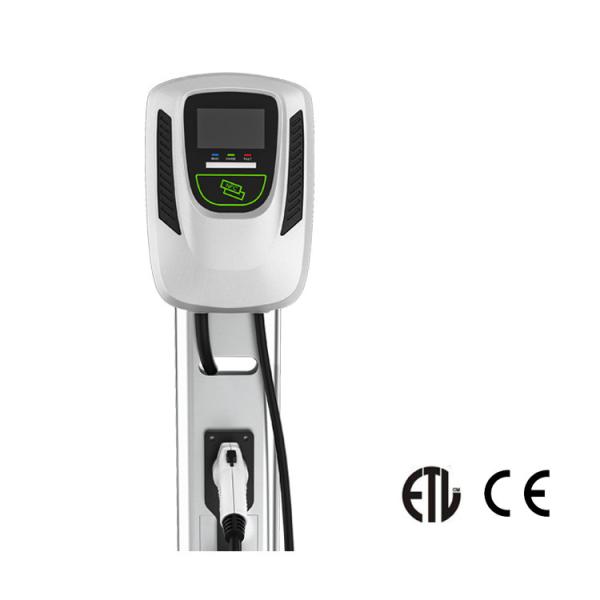

OCPP 1.6J 2.0 Compatible 9.6KW 40A Level 2 Car Chargers
OCPP 1.6J 2.0 Compatible 9.6KW 40A Level 2 Car Chargers
Specifications
Brand Name :
Joint
Model Number :
JNT-EVC10-09C1C
Certification :
ETL, CE
Place of Origin :
China
MOQ :
1
Price :
USD 250-450/SET
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30000 pcs/Month
Delivery Time :
28 Days
Packaging Details :
Standard Package
IP Rating :
IP65
Working Temperature :
-30C°~+50C°
Current :
40A
Frequency :
50/60Hz
Rated Power :
9.6KW
Charge Connector :
SAE J1772 Plug with 18ft Cable
LED Indicator :
Green/Blue/Red
Weight :
24.3lb-94.8lb
RFID Reader :
Optional
LCD Display :
4.3" LCD screen
Internal :
OCPP 1.6 JSON (OCPP 2.0 Compatible)
Description

OCPP 1.6J 2.0 Compatible 9.6KW 40A Level 2 AC Electric Vehicle Charging Station

Level 2, 240 volt electric vehicle (EV) charging station charges any EV up to 9X faster than a normal portable outlet, with flexible amperage settings up to 48 amps (16A-48A) and plug-in or hardwired installation. Use the Joint app to pick the right amperage for your home or commercial after installation.

Works with all electric cars, tested on leading EV models: Chevrolet Volt and Bolt EV, Hyundai Kona and Ioniq, Kia NIRO, Nissan LEAF, Tesla models, Toyota Prius Prime, BMW i3, Honda Clarity, Chrysler Pacifica, Jaguar I-PACE, and many more

Charge faster and smarter with the Joint app. Set a schedule to only charge when electricity is cheapest, set reminders so you never forget to plug in, and see all your charging data in one place

Safe and reliable, with a 3-year backed support. UL listed for electrical safety.

Easy for any electrician to install indoors or out. Plug-in installation with NEMA 6-50 or 14-50 outlet (6-50 currently selected) requires circuits rated 40A or 50A. For other circuit ratings, including 60A-80A for 48A-50A charging, the plug is easily removed for hardwired installation. Select the amperage that works best for home and public, helping to avoid electrical upgrades.

EV Charger Station Features:

Model Name
 EVC10-03C1C
EVC10-07C1C
EVC10-09C1C
EVC10-11C1C
Input Rating
200-240Vac
Frequency
60Hz
Input Current
16A
 32A 40A 48A
Output Current
16A
 32A 40A 48A
User Authentication
RFID (ISO 14443)
External
LAN (optional) + 4G (optional) or Wi-Fi (optional)
Internal
OCPP 1.6 JSON (OCPP 2.0 compatible)
Operating Temperature
-22˚F~122˚F(-30˚C~50˚C)
Humidity
Max. 95% RH
Altitude
≦ 2000m
IP Level
IP65 for box
Dimension(WxDxH)
350x250x130mm (13.8″x9.8″x5.1″)
Charging Outlet
18ft charging cable(25ft charging cable optional)
CCID
CCID20
Charging Interface
SAEJ1772
Multiple Protection
Over current, Under voltage, Over voltage, Residual current, Surge protection,
Short circuit, Over temperature, Ground fault, Current leakage protection
OCPP 1.6J 2.0 Compatible 9.6KW 40A Level 2 Car ChargersOCPP 1.6J 2.0 Compatible 9.6KW 40A Level 2 Car ChargersOCPP 1.6J 2.0 Compatible 9.6KW 40A Level 2 Car Chargers
