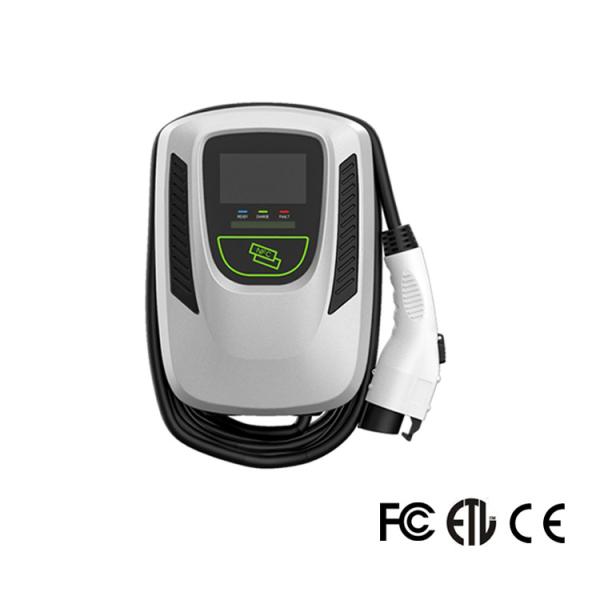

IK08 Outdoor 9.6KW 40A EV Level 2 Home Charger
IK08 Outdoor 9.6KW 40A EV Level 2 Home Charger
Specifications
Brand Name :
Joint
Model Number :
JNT-EVC10-09C1C
Certification :
ETL, CE, FCC
Place of Origin :
China
MOQ :
1
Price :
USD 250-450/SET
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30000 pcs/Month
Delivery Time :
28 Days
Packaging Details :
Standard Package
IP Rating :
IP65
Working Temperature :
-30C°~+50C°
Current :
40A
Frequency :
50/60Hz
Rated Power :
9.6KW
Charge Connector :
SAEJ 1772 Plug with 16ft Cable
LED Indicator :
Green/Blue/Red
Weight :
24.3lb-94.8lb
RFID Reader :
Optional
LCD Display :
4.3" LCD screen
Description

IK08 IP65 Ourdoor Level 2 EV-charger Home EV Charging Station

How fast you can charge an electric car at home

Charging speed for electric cars is measured in kilowatts (kW).

Home charging points charge your car at 3.7kW or 7kW giving about 15-30 miles of range per hour of charge (compared to 2.3kW from a 3 pin plug which provides up to 8 miles of range per hour).

Maximum charging speed may be limited by your vehicle’s onboard charger. If your car allows up to a 3.6kW charging rate, using a 7kW charger will not damage the car.

How to charge an electric car at home

To charge an electric car at home, you should have a home charging point installed where you park your electric car. You can use an EVSE supply cable for a 3 pin plug socket as an occasional backup.

  • Drivers usually choose dedicated home charging point because it's faster and has built-in safety features.
  • A home charger is a compact weatherproof unit that mounts to a wall with a connected charging cable or a socket for plugging in a portable charging cable.
  • Dedicated home charging points are installed by qualified specialist installers.

EV Charger Station Features:

Model Name
 EVC10-03C1C
EVC10-07C1C
EVC10-09C1C
EVC10-11C1C
Input Rating
200-240Vac
Frequency
60Hz
Input Current
16A
 32A 40A 48A
Output Current
16A
 32A 40A 48A
User Authentication
RFID (ISO 14443)
External
LAN (optional) + 4G (optional) or Wi-Fi (optional)
Internal
OCPP 1.6 JSON (OCPP 2.0 compatible)
Operating Temperature
-22˚F~122˚F(-30˚C~50˚C)
Humidity
Max. 95% RH
Altitude
≦ 2000m
IP Level
IP65 for box
Dimension(WxDxH)
350x250x130mm (13.8″x9.8″x5.1″)
Charging Outlet
18ft charging cable(25ft charging cable optional)
CCID
CCID20
Charging Interface
SAEJ1772
Multiple Protection
Over current, Under voltage, Over voltage, Residual current, Surge protection,
Short circuit, Over temperature, Ground fault, Current leakage protection
