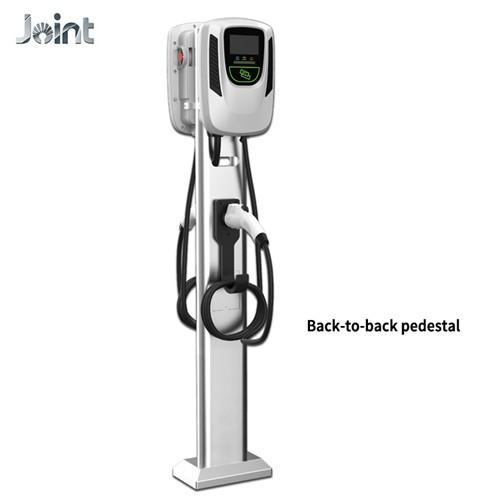

48A OCPP1.6J IP65 Level 2 Electric Car Charger Via App
48A OCPP1.6J IP65 Level 2 Electric Car Charger Via App
Specifications
Brand Name :
Joint
Model Number :
JNT-EVC10-11C1C
Certification :
ETL, CE, FCC
Place of Origin :
China
MOQ :
1
Price :
USD 250-450/SET
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30000 pcs/Month
Delivery Time :
28 Days
Packaging Details :
Standard Package
Voltage :
Single or 3 phase
IP Rating :
IP65
Working Temperature :
-30C°~+50C°
Maximum Current :
48A
Frequency :
50/60Hz
Rated Power :
11.5KW
Charge Connector :
SAE J1772 Plug with 18ft Cable
LED Indicator :
R/G/B
Weight :
24.3lb-94.8lb
RFID Reader :
Optional
LCD Display :
4.3" RCD screen
Description

EV charger with 32A/40A/ 48A OCPP1.6J IP 65/ IP 54 Level 2 AC EV Charger smart charging via App

EV Charger Station Features:

Model Name
 EVC10-03C1C
EVC10-07C1C
EVC10-09C1C
EVC10-11C1C
Input Rating
200-240Vac
Frequency
60Hz
Input Current
16A
 32A 40A 48A
Output Current
16A
 32A 40A 48A
User Authentication
RFID (ISO 14443)
External
LAN (optional) + 4G (optional) or Wi-Fi (optional)
Internal
OCPP 1.6 JSON (OCPP 2.0 compatible)
Operating Temperature
-22˚F~122˚F(-30˚C~50˚C)
Humidity
Max. 95% RH
Altitude
≦ 2000m
IP Level
IP65 for box
Dimension(WxDxH)
350x250x130mm (13.8″x9.8″x5.1″)
Charging Outlet
18ft charging cable(25ft charging cable optional)
CCID
CCID20
Charging Interface
SAEJ1772
Multiple Protection
Over current, Under voltage, Over voltage, Residual current, Surge protection,
Short circuit, Over temperature, Ground fault, Current leakage protection
Feature:
7.2kW/9.6kW/11.5KW
OCPP 1.6 J
MID approved Meter
RCD CCID 20 protection
Wifi +LAN or GPRS+LAN and Ethernet for option
RFID reader as standard
Optional LCD screen
IP65
Payment via Apple pay and google pay
