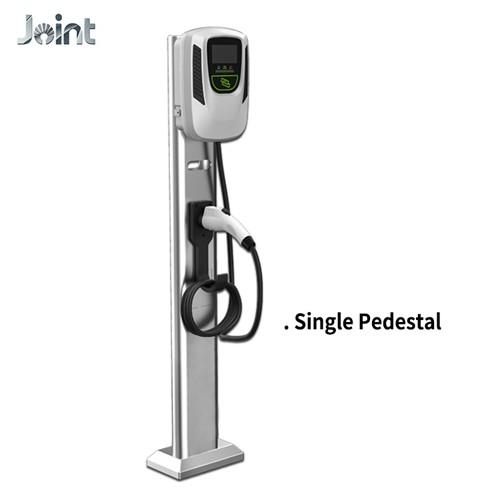

SAEJ 1772 Play And Plug 11.5KW 48A 240V EV Charger Station
SAEJ 1772 Play And Plug 11.5KW 48A 240V EV Charger Station
Specifications
Brand Name :
Joint
Model Number :
JNT-EVC10-11C1C
Certification :
ETL, CE, FCC
Place of Origin :
China
MOQ :
1
Price :
USD 250-450/SET
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30000 pcs/Month
Delivery Time :
28 Days
Packaging Details :
Standard Package
Voltage :
Single or 3 phase
IP Rating :
IP65
Working Temperature :
-30C°~+50C°
Maximum Current :
48A
Frequency :
50/60Hz
Rated Power :
11.5KW
Charge Connector :
SAE J1772 Plug with 18ft Cable
LED Indicator :
Green/Blue/Red
Weight :
24.3lb-94.8lb
RFID Reader :
Optional
LCD Display :
4.3" RCD screen
Description

SAEJ 1772 Play And Plug 11.5KW 48A 240V EV Charger Station
Level 2 chargers feature 16-48Amp models working within a range of 200V - 240V. Thus providing 6 Times Faster than your manufacturer provided Level 1 110v charger! The 32Amp model charges at 7.2kw/hour giving 26 miles of range per hour! The 40Amp model charges at 9.6kw/hour giving you 33 miles of range per hour!

4.3" LCD screen — Our charger features a real time data screen that displays relevant information such as, real-time charging Amperage, actual charging Voltage, total kilowatt consumption, current temperature, and other informative data values.

LED Indicator -- Show if it is charging or not


Intelligent chip — Intelligent chip automatically adjusts amperage by communicating with EV's computer to SAFELY supply the requested amperage.

Smart chargers are waterproof and are safe to use outdoors.

EV Charger Station Features:

Model Name
 EVC10-03C1C
EVC10-07C1C
EVC10-09C1C
EVC10-11C1C
Input Rating
200-240Vac
Frequency
60Hz
Input Current
16A
 32A 40A 48A
Output Current
16A
 32A 40A 48A
User Authentication
RFID (ISO 14443)
External
LAN (optional) + 4G (optional) or Wi-Fi (optional)
Internal
OCPP 1.6 JSON (OCPP 2.0 compatible)
Operating Temperature
-22˚F~122˚F(-30˚C~50˚C)
Humidity
Max. 95% RH
Altitude
≦ 2000m
IP Level
IP65 for box
Dimension(WxDxH)
350x250x130mm (13.8″x9.8″x5.1″)
Charging Outlet
18ft charging cable(25ft charging cable optional)
CCID
CCID20
Charging Interface
SAEJ1772
Multiple Protection
Over current, Under voltage, Over voltage, Residual current, Surge protection,
Short circuit, Over temperature, Ground fault, Current leakage protection
SAEJ 1772 Play And Plug 11.5KW 48A 240V EV Charger Station
