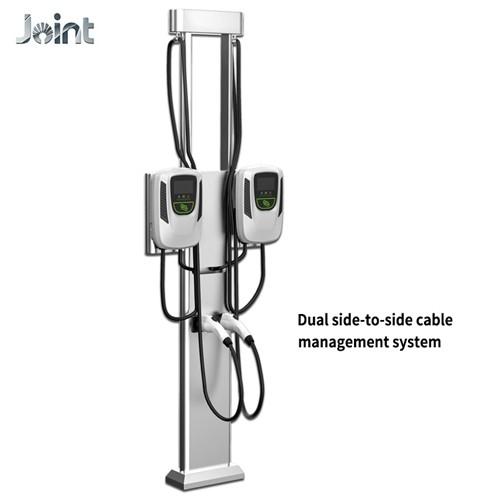

Compact IP65 EVSE 9.6KW Type 1 EV Charger Station
Compact IP65 EVSE 9.6KW Type 1 EV Charger Station
Specifications
Brand Name :
Joint
Model Number :
JNT-EVC10-09C1C
Certification :
ETL, CE, FCC
Place of Origin :
China
MOQ :
1
Price :
USD 250-450/SET
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30000 pcs/Month
Delivery Time :
28 Days
Packaging Details :
Standard Package
IP Rating :
IP65
Working Temperature :
-30C°~+50C°
Current :
40A
Frequency :
50/60Hz
Rated Power :
9.6KW
Charge Connector :
SAEJ 1772 Plug with 16ft Cable
LED Indicator :
Green/Blue/Red
Weight :
24.3lb-94.8lb
RFID Reader :
Optional
LCD Display :
4.3" RCD screen
Description

EVSE Type 1 Compact EV Charger Station with Wifi 4G OCPP protocol

Next, you’ll need to determine whether you want a Level 1 or a Level 2 charger. Level 2 chargers do the job quicker than Level 1 chargers, but often require a different power outlet that you may not already have available in your household. Some chargers are hardwired, while others can simply be plugged in. Decide whether you want a plug-and-play solution or a charger that requires professional installation from an electrician.

Lastly, if you aren’t installing your charger inside a garage, make sure to purchase one that is durable when exposed to sun, wind, and water. You’ll want to make sure the charger you’re purchasing is outdoor rated.

EV Charger Station Features:

Model Name
EVC10-03C1C
EVC10-07C1C
EVC10-09C1C
EVC10-11C1C
Input Rating
200-240Vac
Frequency
60Hz
Input Current
16A
32A40A48A
Output Current
16A
32A40A48A
User Authentication
RFID (ISO 14443)
External
LAN (optional) + 4G (optional) or Wi-Fi (optional)
Internal
OCPP 1.6 JSON (OCPP 2.0 compatible)
Operating Temperature
-22˚F~122˚F(-30˚C~50˚C)
Humidity
Max. 95% RH
Altitude
≦ 2000m
IP Level
IP65 for box
Dimension(WxDxH)
350x250x130mm (13.8″x9.8″x5.1″)
Charging Outlet
18ft charging cable(25ft charging cable optional)
CCID
CCID20
Charging Interface
SAEJ1772
Multiple Protection
Over current, Under voltage, Over voltage, Residual current, Surge protection,
Short circuit, Over temperature, Ground fault, Current leakage protection

Compact IP65 EVSE 9.6KW Type 1 EV Charger Station
