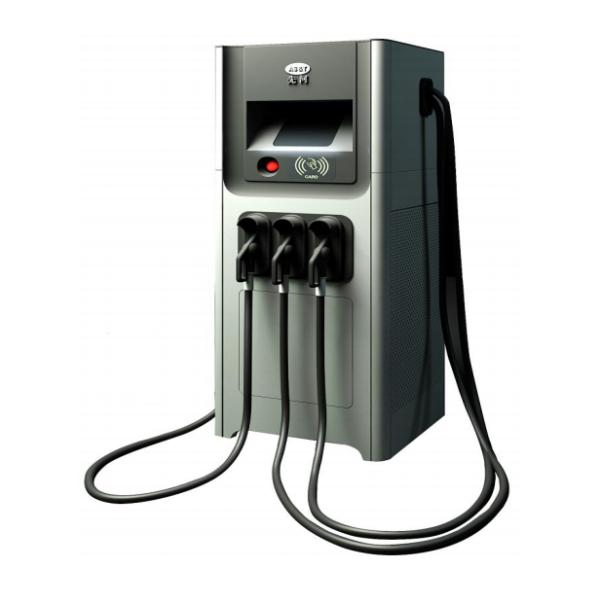

TUV Commercial EV DC Charging Station 60kW CCS CHAdeMo 9'' Touch Screen
TUV Commercial EV DC Charging Station 60kW CCS CHAdeMo 9'' Touch Screen
Specifications
Brand Name :
ANS
Model Number :
ANS-DCT-60kW
Certification :
TUV, CE
Place of Origin :
China
MOQ :
1pc
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10pcs one day
Delivery Time :
30days
Packaging Details :
standard export package
Name :
DC Charging Station
Charging interface :
CCS, CHAdeMO and AC control pilot
Charge Point Protocal :
OCPP1.6 / OCPP2.0
Enclosure Protection againstExt ernal Mechanical Impacts :
IK10 according to IEC 62262
User authentication :
Paypal and (or) NFC card
Network interface :
Ethernet (standard); Wi-Fi, 4G (optional)
Display :
9” touch screen
Support language :
English (Other languages available upon request)
Output power :
DC: 60kW AC: 22kW
Output rating :
200V-750V DC
Description

DC Charging Station 60kW with CCS & CHAdeMo & AC Charger Commercial Charge Point

TUV Commercial EV DC Charging Station 60kW CCS CHAdeMo 9'' Touch Screen

CCS, CHAdeMO and AC control pilot charging standard compliant
CCS and CHAdeMO output max. 60kW; AC output max. 22kW
OCPP integration
Remote diagnostics, repair and updates
Easily connect to Charging points Management System
Compact design
Item Number 3P60K-AD3-100A-EU01 3P60K-AD3-80A-EU02
Power input Input rating 400V 3ph 125A max. 400V 3ph 125A max.
Number of phase / wire 3ph / L1, L2, L3, PE
Power factor >0.98
Current THD <5%
Efficiency >95%
Power output Output power DC: 60kW AC: 22kW DC: 60kW AC: 22kW
Remark: only one gun is available in a charging session.
Output rating 200V-750V DC 200V-1000V DC
Protection Protection Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Ov er temperature, Ground fault
User interface & c ontrol Display 9” touch screen
Support language English (Other languages available upon request)
Charge option Charge options to be provided upon request: Charge by duration, Charge by energy, Charge b y fee
Charging interface CCS2 / CHAdeMO / Control pilot
User authentication Paypal and (or) NFC card
Communication Network interface Ethernet (standard); Wi-Fi, 4G (optional)
Open Charge Point Protocal OCPP1.6 / OCPP2.0
Environmental Operating temperature minus 20 ℃to+55℃ (derating when over 55℃)
Storage temperature -40 ℃to+70℃
Humidity < 95% relative humidity, non-condensing
Altitude Up to 2000 m (6000 feet)
Mechanical Ingress protection IP54
Enclosure Protection againstExt
ernal Mechanical Impacts		 IK10 according to IEC 62262
Cooling Forced air
Charging cable length 5m
Dimension (W*D*H) mm 700*750*1750 700*750*1750
Weight 280kg 300kg
Regulation Certificate / Compliance CE / EN 61851-1/-23
