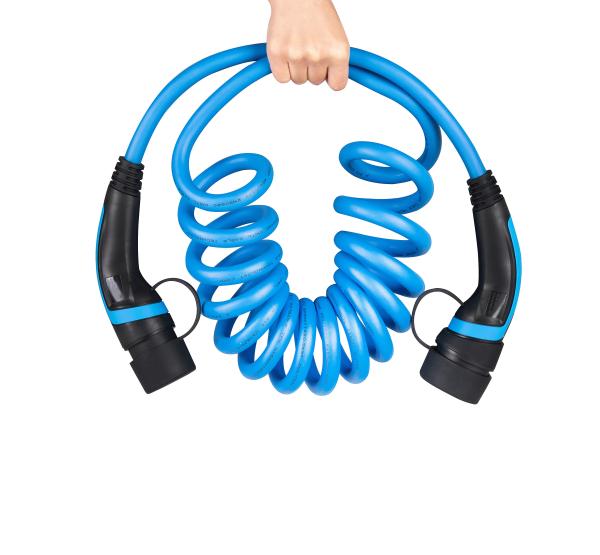

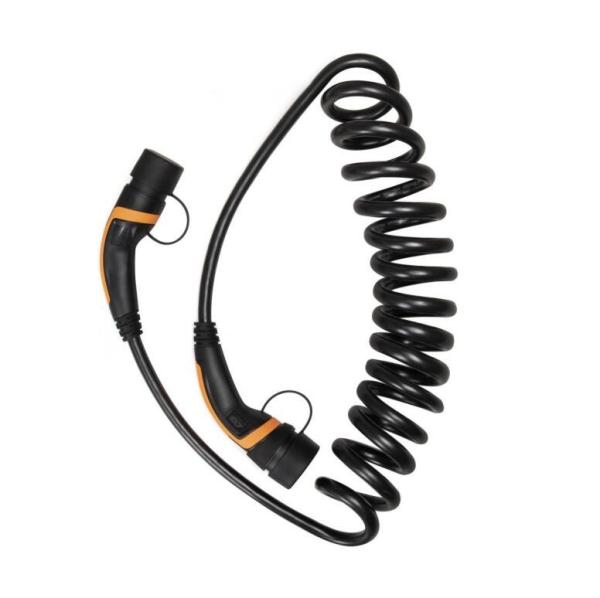

Spiral 7kW Type 2 To Type 2 Charging Cable 32A 250V 1 Phase IEC 62196 Standard
Spiral 7kW Type 2 To Type 2 Charging Cable 32A 250V 1 Phase IEC 62196 Standard
Spiral 7kW Type 2 To Type 2 Charging Cable 32A 250V 1 Phase IEC 62196 Standard
Spiral 7kW Type 2 To Type 2 Charging Cable 32A 250V 1 Phase IEC 62196 Standard
Specifications
Brand Name :
ANS
Model Number :
ANSAG-T2-T2-32A
Certification :
TUV,CE,RoHs, REACH
Place of Origin :
China
MOQ :
1pcs
Price :
USD
Payment Terms :
L/C, D/A, T/T, D/P, Western Union
Supply Ability :
1000pcs one day
Delivery Time :
20-30days
Packaging Details :
standards export package
product name :
Type 2 To Type 2 EV Charging Cable
amps :
32A
charging mode :
mode 3 ev charging cable
connector standard :
type 2 to type 2
Voltage :
250V
materials :
Huntsman
Plug Standard :
IEC 62196
Grounding :
Standard Grounding
Warranty :
24 months
phase :
1phase
Description

IEC 62196 standard 32A 250V 1 phase 7kW ev charging leads type 2 to type 2 spiral ev cables

Product Features

  • Standard Connector, can be identified by EV (with Type 2 inlet) correctly and charge effectively.
  • Rugged design. Its structural strength is sufficient enough to support the rolling of an electric car.
  • Unique Arc Extinguishing technique makes sure that there won't have any electric sparks when plugging in and plugging out.
  • Safe & Reliable. The cable is made of flame-retardant TPU material, which can withstand the direct fire combustion within a safe time.
  • Durable. The advanced Crimping Technology ensures a working life of over 3000 times safe plugging in or out without any off-line error.
ProductModel: ANSAG-T2-T2-32A
Product Type Type 2 to Type 2 ev charging cable
Stardard: IEC 62196-2
Rated Voltage: AC 250V

Rated Current:

 32A
Withstanding voltage: 2000V
Working temperature: -30℃ to +65℃
StorageTemperature: -40℃ to +70℃
Terminal temperature rise: <50K
Contact impedance: 0.5mMax
Protection level: IP67

Certifications:

 TUV CE
Warranty: 2 years
Plug Colour: Black, Red, Orange, Yellow, Green, Blue or Customization
Mechanical life: No-load plug in/pull out>10000 times
Insertion and Extration Force: 45N<F<100N

Impato fex ternal force:

Can afford 1m drop and 2T vehicle run over pressure

Part name Material Supplier
Cable PUR (TPU) HUNTSMAN: A85P4380
Shell of plug PC+PBT SABIC:V3900WX
Head of plug PA66+GF25 DUPONT: FR50

Spiral 7kW Type 2 To Type 2 Charging Cable 32A 250V 1 Phase IEC 62196 Standard

Spiral 7kW Type 2 To Type 2 Charging Cable 32A 250V 1 Phase IEC 62196 Standard

Spiral 7kW Type 2 To Type 2 Charging Cable 32A 250V 1 Phase IEC 62196 Standard

TPU Materials cables Components

Spiral 7kW Type 2 To Type 2 Charging Cable 32A 250V 1 Phase IEC 62196 Standard

Spiral 7kW Type 2 To Type 2 Charging Cable 32A 250V 1 Phase IEC 62196 Standard

Advantage
  • Conform to the provisions and requirements of IEC 62196-2 2016 2-lle
  • Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle ,plug conveniently
  • XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
  • Excellent protection performance, protection grade achieved IP55 ( working condition )
  • Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )

Applied Materials

  • Shell material: thermoplastics, flame retardant grade UL94-0

  • Pin: copper alloy, silver-plate and use thermoplastic at the top

Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949 Spiral 7kW Type 2 To Type 2 Charging Cable 32A 250V 1 Phase IEC 62196 StandardSpiral 7kW Type 2 To Type 2 Charging Cable 32A 250V 1 Phase IEC 62196 Standard
