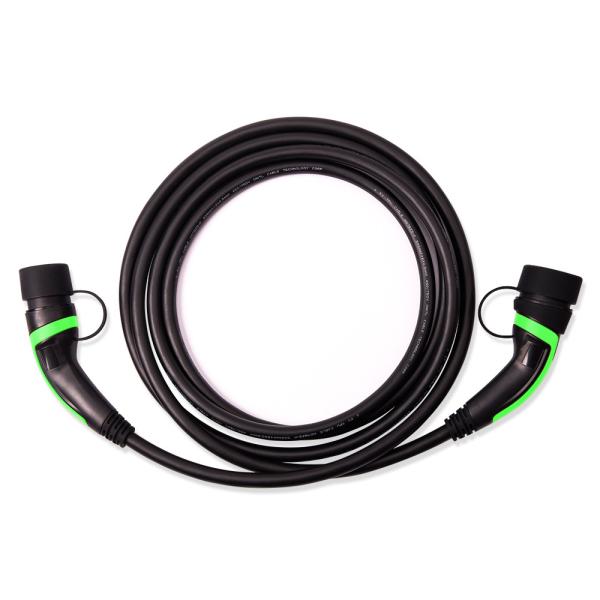

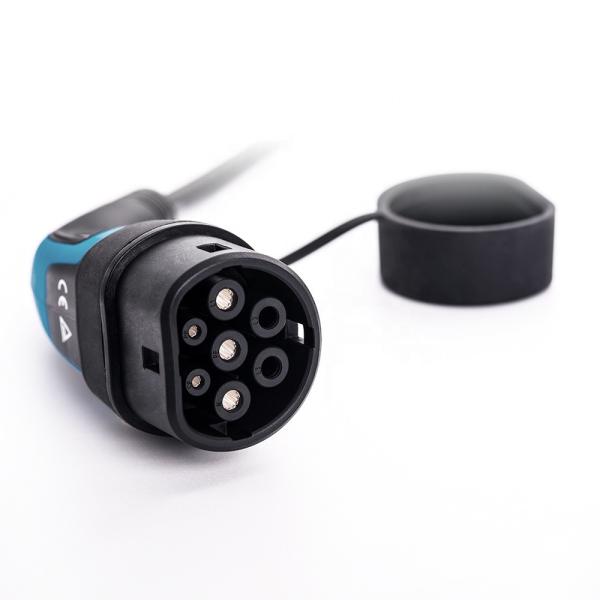

32A 480V 22kW Type 2 To Type 2 EV Charging Cable IP55 protection Grade
32A 480V 22kW Type 2 To Type 2 EV Charging Cable IP55 protection Grade
32A 480V 22kW Type 2 To Type 2 EV Charging Cable IP55 protection Grade
32A 480V 22kW Type 2 To Type 2 EV Charging Cable IP55 protection Grade
32A 480V 22kW Type 2 To Type 2 EV Charging Cable IP55 protection Grade
32A 480V 22kW Type 2 To Type 2 EV Charging Cable IP55 protection Grade
32A 480V 22kW Type 2 To Type 2 EV Charging Cable IP55 protection Grade
32A 480V 22kW Type 2 To Type 2 EV Charging Cable IP55 protection Grade
Specifications
Brand Name :
ANS
Model Number :
ANSAG-T2-T2-32A
Certification :
TUV,CE,RoHs, REACH
Place of Origin :
China
MOQ :
1pcs
Price :
USD
Payment Terms :
L/C, D/A, T/T, D/P, Western Union
Supply Ability :
1000pcs one day
Delivery Time :
20-30days
Packaging Details :
standards export package
product name :
Type 2 to Type 2 EV Charging Cables
amps :
32A
charging mode :
mode 3 ev charging cable
voltage :
480V
length :
5M
materials :
Huntsman
Plug Standard :
IEC 62196
Grounding :
Standard Grounding
Warranty :
24 months
phase :
3phase
Description

EV Charging Plugs with TPU Materials Cables 32A 480V 22kW Waterproof IP55 Type 2 to Type 2 EV Charging Cables

Product Features

  • Conform to the provisions and requirements of IEC 62196-2 2016 2-lle
  • Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently
  • XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
  • Excellent protection performance, protection grade achieved IP55 ( working condition )
  • Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )

​Applied Materials

Shell material: thermoplastics, flame retardant grade UL94-0

Operating temperature: -30°C~ +50°C

ProductModel: ANSAG-T2-T2-32A
Product Type Type 2 to Type 2 ev charging cable
Stardard: IEC 62196-2
Rated Voltage: AC480V

Rated Current:

 32A
Withstanding voltage: 2000V
Working temperature: -30℃ to +65℃
StorageTemperature: -40℃ to +70℃
Terminal temperature rise: <50K
Contact impedance: 0.5mMax
Protection level: IP67

Certifications:

 TUV CE
Warranty: 2 years
Plug Colour: Black, Red, Orange, Yellow, Green, Blue or Customization
Mechanical life: No-load plug in/pull out>10000 times
Insertion and Extration Force: 45N<F<100N

Impato fex ternal force:

Can afford 1m drop and 2T vehicle run over pressure

Part name Material Supplier
Cable PUR (TPU) HUNTSMAN: A85P4380
Shell of plug PC+PBT SABIC:V3900WX
Head of plug PA66+GF25 DUPONT: FR50

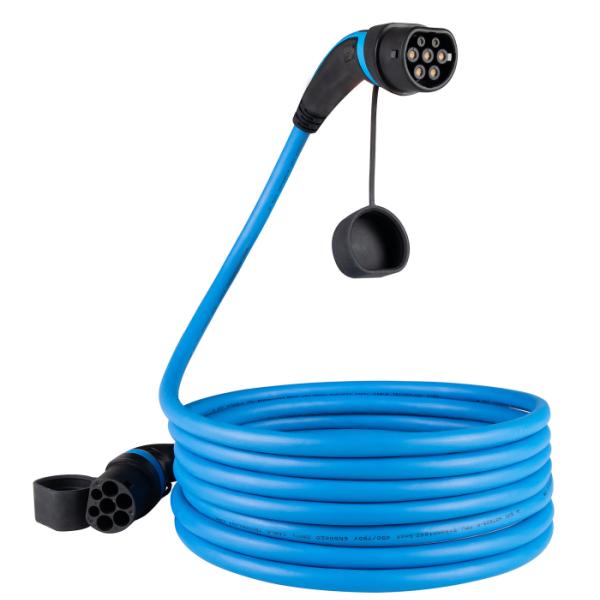

32A 480V 22kW Type 2 To Type 2 EV Charging Cable IP55 protection Grade
Our advantages
  • Wide range of products from AC to DC,total around 55 categories
  • Advanced tech and the first TPU ev cable supplier
  • Different color selection of plugs without MOQ--aound 6 differnet
  • colors now as standard
  • OEM service--print your own logo and make your own
  • color for the charging items
  • High competitive price comparing to other products on the market
  • All charging prudcts are with CE/TUV/UL listed. ISO etc.Total 16certifications
  • High quality of raw materials from Huntsman,Sabic,Dupont
  • Product quality is widely aprroved by many car and charger factories as well, like JAC,BYD
  • China, and Haima New energy etc.
  • 2years warranty, life-time tech support
  • High comment.We Have won around 688 positive feedbacks from customers
  • Professional and efficient sales team offering you one stop charging solution for your business
  • OEM service--Always making any samples meeting customers’ requirements. we can produce
  • by your samples or technical drawings and can build the molds and fixtures.
  • Fast delivery--We will send out your order usually within 7days for samples

Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949
