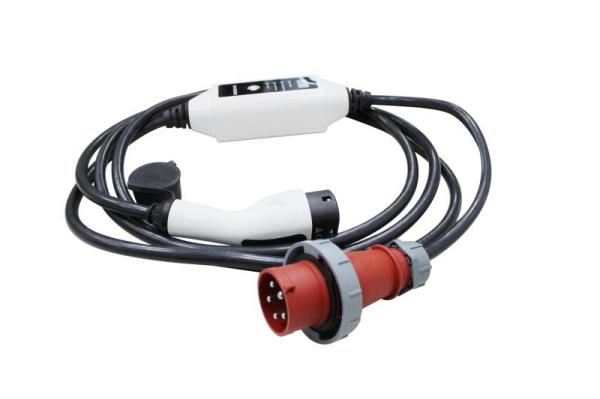

380V 16A 11KW Portable EV Charger 3 Phase With RED CEE Plug
380V 16A 11KW Portable EV Charger 3 Phase With RED CEE Plug
380V 16A 11KW Portable EV Charger 3 Phase With RED CEE Plug
380V 16A 11KW Portable EV Charger 3 Phase With RED CEE Plug
Specifications
Brand Name :
ANS
Model Number :
ANSYH-CCS-125
Certification :
TUV
Place of Origin :
china
MOQ :
1
Price :
USD323
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000PCS/month
Delivery Time :
20-30days
Packaging Details :
15.7*15*3.15(in)
product name :
16A portable EV Charger
Brand :
ANS
Rated Current: :
16A
Stardard :
IEC62196-3
Protection level: :
IP67
Warranty :
2years
Certifications: :
TUV/CE
Operating temperature: :
-30℃-+50℃
Application :
AC Home Charging
Description

380V 16A 11KW Duosida 3 phase portable charger & adjustable ev charger with RED CEE plug portable EV Charger



Product Description

1 Electric parameter
1.1 Rated Frequency
50/60Hz
1.2 Rated current
8/10/13/16/32A
1.3 Rated voltage
single-phase, 230V±15%, 50/60Hz
2 Mechnical Parameter
2.1 IP Code
IP67
2.2 Charging Adapter Cable
5 meters cable or custom length
2.3 Dimensions
W × D × H = 230 × 93× 62 mm
2.4 Weight
＜5kg
2.5 Input Plug Standard
Select one of the following options:Blue CEE, NEMA Plug, UK Plug, Schuko Plug or AU Plug
3 Functional Description
3.1 Charging Control Model
Plug and play
3.2 Display Screen(Optional)
OLED screen (display charging current, voltage, output energy, charging time, state information, fault information and etc.)
3.3 Indicator Light
4 LED indicators-Power/ Connection/ Charging/ Fault
3.4 RCD type
Type A
3.5 Adjustable output current
Button options: 8A/10A/13A/16/32A
3.6 Preset function
Preset charging time trough the button
3.7 Safety Protection
surge protection, over temperature, leakage, over/under voltage, over current, ground protection
4 Environmental Conditions
4.1 Operational environment
indoor or outdoor, good ventilation, no flammable, explosive or corrosive gases
4.2 Vibration
＜0.5G, no violent vibration and impact
4.3 Altitude
≤2000 meters
4.4 Storage Temperature
-30 ~ 75 ℃ (-22 ~ 167 ℉)
4.5 Operating Temperature
-30 ~ 55 ℃ (-22 ~ 131 ℉)
4.6 Operating humidity
95%RH, no water droplet condensation




Product Detail

380V 16A 11KW Portable EV Charger 3 Phase With RED CEE Plug





Features

This 5 meter mobile charger can be used to charge your Tesla from a red 32A single phase CEE socket. The charger is rated at 32A max. Your electric vehicle will charge at 11kW

Please make sure you charge from a correctly installed red CEE socket as depicted on the left, that is able to deliver 32A, installed with minimum 6mm² wires and is electrically protected with an RCBO.
The charger features:
1.Earth leakage protection
2.Over current protection
3.Over voltage protection
4.Low voltage protection
5.Short circuit protection
6.Overheat protection





FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
