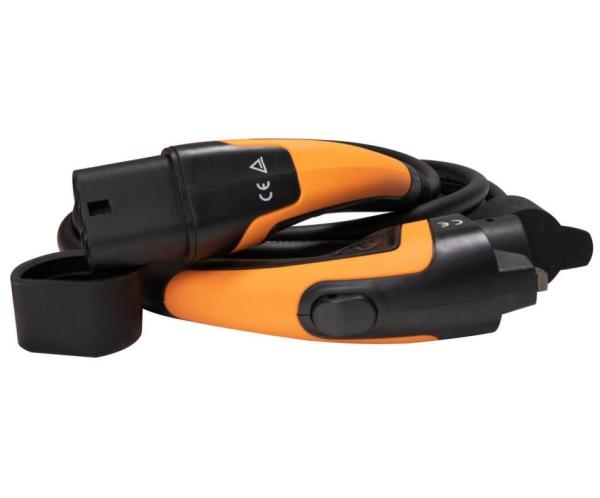

Model 3 16A 250V Type 2 To Type 1 Charging Cable 3kW For Nissan Leaf
Model 3 16A 250V Type 2 To Type 1 Charging Cable 3kW For Nissan Leaf
Model 3 16A 250V Type 2 To Type 1 Charging Cable 3kW For Nissan Leaf
Model 3 16A 250V Type 2 To Type 1 Charging Cable 3kW For Nissan Leaf
Specifications
Brand Name :
ANS
Model Number :
ANSAG-T1-T2-16A
Certification :
TUV,CE,RoHs, REACH
Place of Origin :
China
MOQ :
1pcs
Price :
USD
Payment Terms :
L/C, D/A, T/T, D/P, Western Union
Supply Ability :
1000pcs one day
Delivery Time :
20-30days
Packaging Details :
standards export package
amps :
16A
voltage :
250V
charging mode :
mode 3 ev charging cable
connector standard :
type 2 to type 2
length :
5M
materials :
Huntsman
Plug Standard :
IEC 62196
Grounding :
Standard Grounding
Warranty :
24 months
phase :
1phase
Description

Model 3 electric vehicle car chargers 16A 250V 3kW Type 1 - type 2 nissan leaf type 1 ev cables

Product Features

-Standard Connector, can be identified by EV (with Type 2 inlet) correctly and charge effectively.
-Rugged design. Its structural strength is sufficient enough to support the rolling of an electric car.
-Unique Arc Extinguishing technique makes sure that there won't have any electric sparks when plugging in and plugging out.
-Safe & Reliable. The cable is made of flame-retardant TPU material, which can withstand the direct fire combustion within a safe time.
-Durable. The advanced Crimping Technology ensures a working life of over 3000 times safe plugging in or out without any off-line error.

ProductModel: ANSAG-T1-T2-16A
Product Type Type 2 to Type 2 ev charging cable
Stardard: IEC 62196-2
Rated Voltage: AC250V

Rated Current:

 16A
Withstanding voltage: 2000V
Working temperature: -30℃ to +65℃
StorageTemperature: -40℃ to +70℃
Terminal temperature rise: <50K
Contact impedance: 0.5mMax
Protection level: IP67

Certifications:

 TUV CE
Warranty: 2 years
Plug Colour: Black, Red, Orange, Yellow, Green, Blue or Customization
Mechanical life: No-load plug in/pull out>10000 times
Insertion and Extration Force: 45N<F<100N

Impato fex ternal force:

Can afford 1m drop and 2T vehicle run over pressure

Part name Material Supplier
Cable PUR (TPU) HUNTSMAN: A85P4380
Shell of plug PC+PBT SABIC:V3900WX
Head of plug PA66+GF25 DUPONT: FR50

Model 3 16A 250V Type 2 To Type 1 Charging Cable 3kW For Nissan Leaf

Model 3 16A 250V Type 2 To Type 1 Charging Cable 3kW For Nissan Leaf

Model 3 16A 250V Type 2 To Type 1 Charging Cable 3kW For Nissan Leaf

Model 3 16A 250V Type 2 To Type 1 Charging Cable 3kW For Nissan Leaf

Advantage
  • Conform to the provisions and requirements of IEC 62196-2 2016 2-lle,SAE J1772
  • Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently
  • XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
  • Excellent protection performance, protection grade achieved IP55 ( working condition )
  • Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )
  • Developed and produced based on IATF 16949 and ISO9001 standards
  • injection molded with waterproof IP55, it can use in the raining.

Applied Materials

Shell material: thermoplastics, flame retardant grade UL94-0

Operating temperature: -30°C~ +50°C

Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949

Model 3 16A 250V Type 2 To Type 1 Charging Cable 3kW For Nissan Leaf
