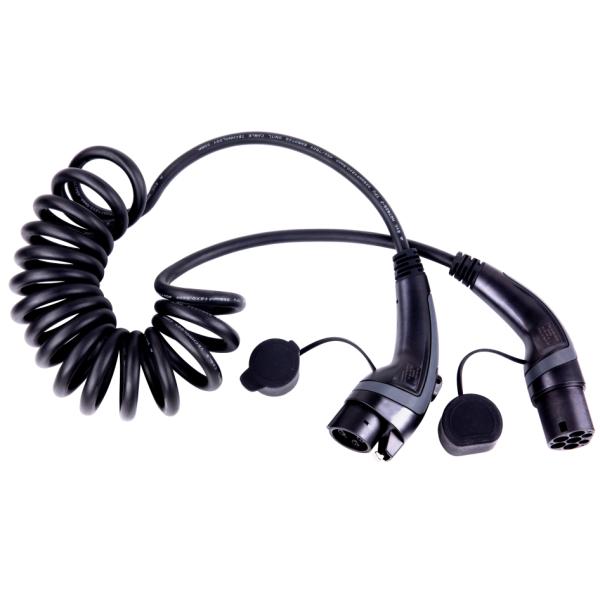

32A 250V 7kW Type 1 To Type 2 EV Charging Cable IEC 62196-2 Mode 3 Charging Cable
32A 250V 7kW Type 1 To Type 2 EV Charging Cable IEC 62196-2 Mode 3 Charging Cable
32A 250V 7kW Type 1 To Type 2 EV Charging Cable IEC 62196-2 Mode 3 Charging Cable
32A 250V 7kW Type 1 To Type 2 EV Charging Cable IEC 62196-2 Mode 3 Charging Cable
32A 250V 7kW Type 1 To Type 2 EV Charging Cable IEC 62196-2 Mode 3 Charging Cable
32A 250V 7kW Type 1 To Type 2 EV Charging Cable IEC 62196-2 Mode 3 Charging Cable
32A 250V 7kW Type 1 To Type 2 EV Charging Cable IEC 62196-2 Mode 3 Charging Cable
32A 250V 7kW Type 1 To Type 2 EV Charging Cable IEC 62196-2 Mode 3 Charging Cable
Specifications
Brand Name :
ANS
Model Number :
ANSAG-T1-T2-32A
Certification :
TUV,CE,RoHs, REACH
Place of Origin :
China
MOQ :
1pcs
Price :
USD
Payment Terms :
L/C, D/A, T/T, D/P, Western Union
Supply Ability :
1000pcs one day
Delivery Time :
20-30days
Packaging Details :
standards export package
Product name :
Type 1 To Type 2 EV Charging Cable
amps :
32A
charging mode :
mode 3 ev charging cable
connector standard :
type 1 to type 2
length :
5M
materials :
Huntsman
Plug Standard :
IEC 62196 SAE J772
Grounding :
Standard Grounding
Warranty :
24 months
phase :
1phase
Description

32A 250V 7kW spring cables IEC 62196-2 AC Mode 3 type 2 to type 1 Coiled EV charging cable

Product Features

  • Conform to the provisions and requirements of IEC 62196-2 2016 2-lle,SAE J1772
  • Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently
  • XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
  • Excellent protection performance, protection grade achieved IP55 ( working condition )
  • Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )
  • Operating temperature: -30°C~+50°C
ProductModel: ANSAG-T1-T2-32A
Product Type Type 2 to Type 2 ev charging cable
Stardard: IEC 62196-2
Rated Voltage: AC250V

Rated Current:

 32A
Withstanding voltage: 2000V
Working temperature: -30℃ to +65℃
StorageTemperature: -40℃ to +70℃
Terminal temperature rise: <50K
Contact impedance: 0.5mMax
Protection level: IP67

Certifications:

 TUV CE
Warranty: 2 years
Plug Colour: Black, Red, Orange, Yellow, Green, Blue or Customization
Mechanical life: No-load plug in/pull out>10000 times
Insertion and Extration Force: 45N<F<100N

Impato fex ternal force:

Can afford 1m drop and 2T vehicle run over pressure

Part name Material Supplier
Cable PUR (TPU) HUNTSMAN: A85P4380
Shell of plug PC+PBT SABIC:V3900WX
Head of plug PA66+GF25 DUPONT: FR50

32A 250V 7kW Type 1 To Type 2 EV Charging Cable IEC 62196-2 Mode 3 Charging Cable

32A 250V 7kW Type 1 To Type 2 EV Charging Cable IEC 62196-2 Mode 3 Charging Cable

32A 250V 7kW Type 1 To Type 2 EV Charging Cable IEC 62196-2 Mode 3 Charging Cable

32A 250V 7kW Type 1 To Type 2 EV Charging Cable IEC 62196-2 Mode 3 Charging Cable

Mechanical properties

Mechanical life: no-load plug> 10000

Lmpact of external force:can afford 1 m drop and 2t vehicle run over pressure

Applied Materials

Shell material: thermoplastics, flame retardant grade UL94-0

Operating temperature: -30°C~ +50°C

32A 250V 7kW Type 1 To Type 2 EV Charging Cable IEC 62196-2 Mode 3 Charging Cable

32A 250V 7kW Type 1 To Type 2 EV Charging Cable IEC 62196-2 Mode 3 Charging Cable

32A 250V 7kW Type 1 To Type 2 EV Charging Cable IEC 62196-2 Mode 3 Charging Cable

Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949

32A 250V 7kW Type 1 To Type 2 EV Charging Cable IEC 62196-2 Mode 3 Charging Cable
