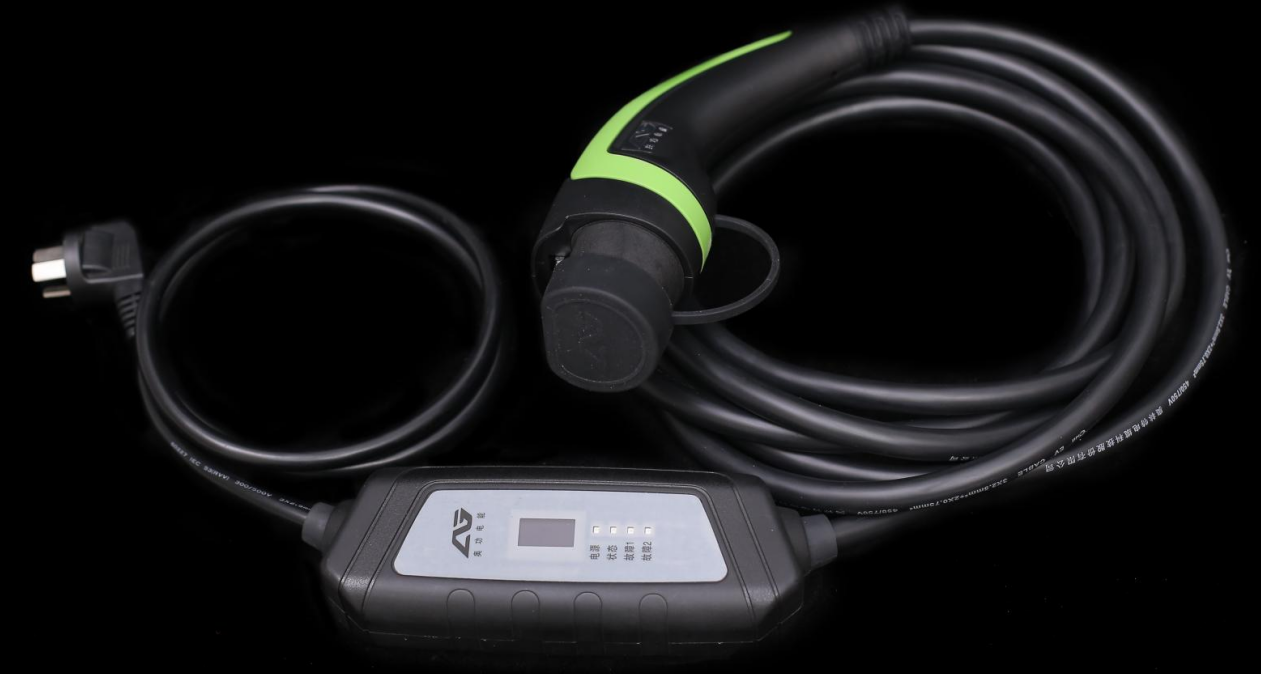

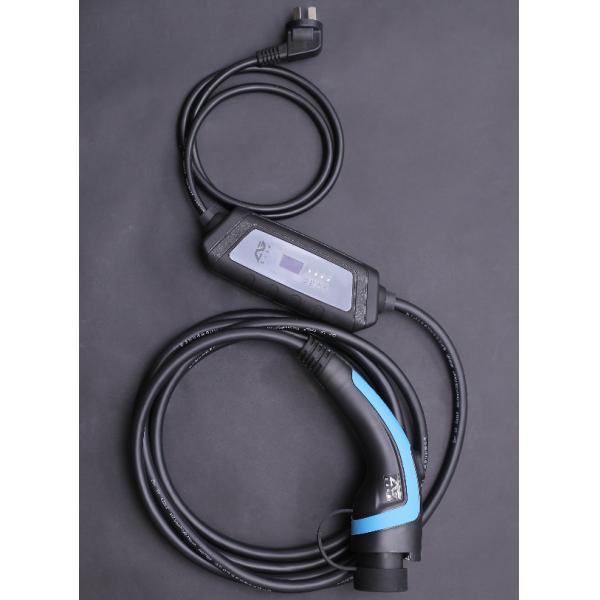

16A 250V 3.6kW GBT EV Charger GB/T Standard With Ground Protection
16A 250V 3.6kW GBT EV Charger GB/T Standard With Ground Protection
16A 250V 3.6kW GBT EV Charger GB/T Standard With Ground Protection
16A 250V 3.6kW GBT EV Charger GB/T Standard With Ground Protection
Specifications
Brand Name :
ANS
Model Number :
ANS-GB-16A
Certification :
3C
Place of Origin :
China
MOQ :
1pc
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500pcs a week
Delivery Time :
25days
Packaging Details :
standard export package
product name :
GB/T Standard EV Portable Charger
amps :
16A
voltage :
250V
cables size :
2.5mm2
color :
green，blue ，orange ，grey
cable length :
5M cable length or based on requirement
logo :
support customzation
Description

GB/T Standard EV Portable Charger 3.6kW 16A 250V EV Chargers for GB/T Cars

Features

  • Conform to the provisions and requirements of GB/T20234.2-2015,GB/T 18487.1-2015
  • Using riveting pressure process with none screw ,have a beautiful appearance.Hand-held design conform tothe ergonomic principle , plug conveniently
  • The panel of lC-CPD used screen to display the current and voltage, the charging state and the temperatureof the circuit board in real time.
  • Excellent protection performance, protection grade of lC-CPD achieved lP66 and achieved lP55 of plug( working condition )
  • Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green.,grey )
  • Mechanical life : no-load plug>10000
  • Lmpact of external force : can afford 1m drop and 2t vehicle run over pressure

rated current 13A 16A
rated voltage 220V
Insulation resistance >1000M Ω DC500V
Pins temperature rise < 50K
Withstand voltage 2500V
Contact impedance 0.5m Ω Max
Shell material thermoplastics,lame retardant grade UL94
Duty cycle 21.67%
Envirommental perommance -30℃- +50℃
cables size 3*2.5+2*0.5mm2

Function:

  • Over-voltage,under-voltage protection
  • Over-current protection
  • earth leakage protection
  • Ground protection: continuous monitoring grounding protection
  • Lightning protection
  • Over-temperature protection: break the circuit when the temperature is over 85 ℃ and continuous 3s
