Bidirectional 750V 15kW EV DC DC Converter
Bidirectional 750V 15kW EV DC DC Converter
Bidirectional 750V 15kW EV DC DC Converter
Bidirectional 750V 15kW EV DC DC Converter
Specifications
Brand Name :
ANS
Model Number :
ANS-Module
Certification :
TUV
Place of Origin :
china
MOQ :
1
Price :
USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000PCS/month
Delivery Time :
20-30days
Packaging Details :
15.7*15*3.15(in)
product name :
EV charging Module
Brand :
ANS
Material :
TPU
Stardard :
IEC62196-3
Warranty :
2years
Certifications: :
TUV
Operating temperature: :
-30℃-+50℃
Input Voltage: :
750V
Type :
DC Converters
Size: :
84mm(H)x226mm(W)x395mm(D)
Description

15kW 750V Bidirectional DC2DC Converter EV Charging Module


Product Description

Specification
Model
 ANS-Module
Structure
Application scenes
DC fast EV charger
Housing material
Metal case
Dimension
226 x 395 x 84mm (LxWxH)
Installation method
Pluggable type
Cables
AREG20KW1 cables/black 1.8m 10AWG power cable-input and output
Weight
≤ 11kg
Electrical specifications
Input voltage
260 - 530Vac 3-phase
Input frequency
45 - 65Hz
Rated power
20kW @ ≥ 800V
Output voltage
150 - 1000Vdc
Output current
0 - 25Aac
Efficiency
≥ 95.5%
Power factor
≥ 0.99
Function design
User interface
Green led: normal operation, Yellow led: alarm, Red led: failure
Charging standards support
CCS-1/2, CHAdeMO, GB/T
Communication
CAN BUS
Environment condition
Application place
Indoor/Outdoor
Working temperature
-20°C ~ +75°C, above 55°C needs output derating
Working humidity
5% ~ 95% without condensation
Altitude
<2000m
Storage temperature
-40°C ~ +75°C
Cooling
Fan cooling
MTBF
>500,000h
Safety standards
CE, TUV




Product Detail

Product Introduction

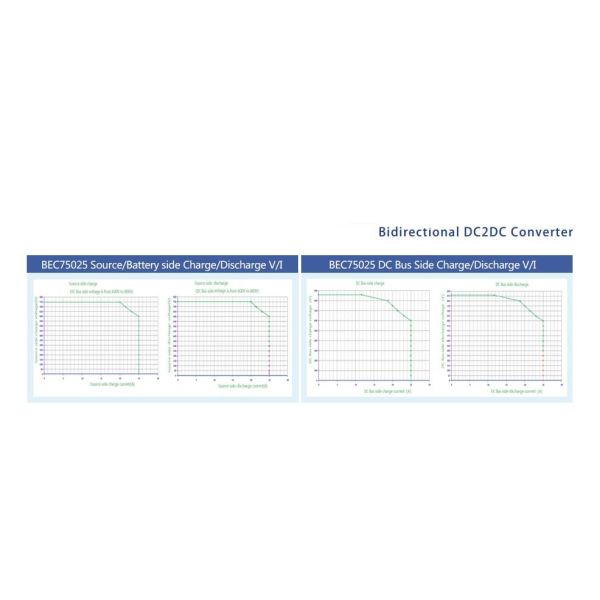

BEC75025/BEC30050isthebidirectional DC2DC converter,been used for connecting the battery to a DC bus, the battery can been discharged or charged through the same converter. It can be used
in the energy storage and retired battery using application It has inner high frequency transformer isolationWith the high frequency MOSFET/SiC
switch technology,excellent performance,high power density, high expansion ability, high reliability and low cost is achieved


Bidirectional 750V 15kW EV DC DC Converter

Unique function
Bidirectional converter
Inside high frequency transformer isolation
Wide voltage range in source/battery side,300V-750VDC,suitable for multiple battery packs
Smooth transition when power flow changing direction
Main feature :
Constant current keeps the larger power in source side
Max efficiency is higher than 96%
Low standby power consumption,less than 20w
Maximum 32 converters in parallel work DCBUS
=Plug &play
Duo CAN communication interface Batter
Application:
EV charger with Energy storage

Smart Grid with DC bus and Energy storage

Retired battery using



We have been ready to share our knowledge of advertising and marketing worldwide and recommend you suitable products and solutions at most competitive price ranges. So ANS supply you best benefit of money and we're ready to create with each other with Car Dc Charger , Charge Battery Fast , Ac To Dc Converter , We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
