1. Working principle

The circulation of the solution in the equipment mainly depends on the forced flow generated by the external force. The cycle speed can generally reach 1.5-3.5 m/s. High heat transfer efficiency and production capacity. The raw material liquid is driven from bottom to top by the circulating pump and flows upward along the tube of the heating chamber. Steam and liquid foam mixture into the evaporation chamber after separation, vapor from the upper discharge, fluid blocked fall, through the conical bottom of the circulation pump inhalation, and then into the heating tube, continue to cycle.

2. Application Area :

It is suitable for the evaporation and crystallization of materials with high concentration, high viscosity, insoluble solids and so on .

For example, the recovery of sodium chloride, sodium sulfate, ammonium chloride, ammonium sulfate, and so on.

3. Mainly parameter :

1). The concentration ratio is large and the circulation type is forced, so that the liquid with larger viscosity is easy to flow and evaporate.

2).Through the forced circulation, the evaporator can be heated evenly in the tube and can prevent the "dry wall" phenomenon.

3).The disadvantages are mainly the large volume of the pump and the relatively high electricity consumption. At the same time, due to the large flow of the pump, the equipment will vibrate greatly and it must be attached to the support of the workshop or the steel structure.

4.System introduction

Evaporator, separator (crystallizer), condenser, circulation pump, inter action pump or material control valve, vacuum and drainage system, sub cylinder, operation platform, electrical instrument control cabinet, valve and pipeline system.

5. Drawing for forced circulation evaporator ( Triple effect forced circulation evaporator )

6. Energy Cost for forced circulation evaporator

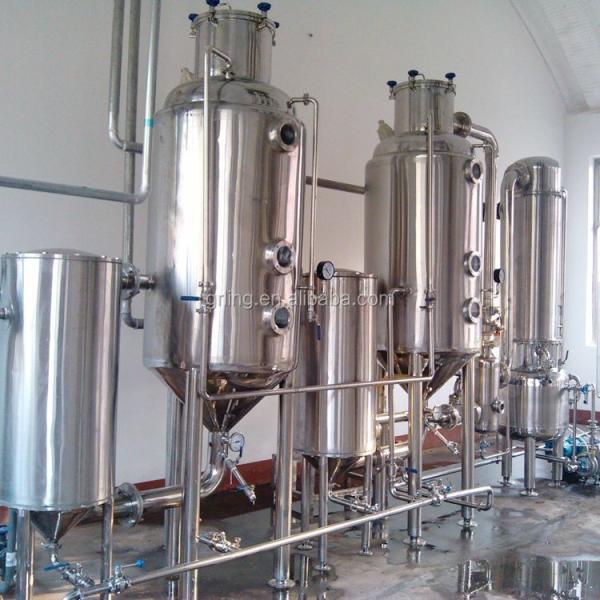

7. Pictures shows for forced circlation evaporator
