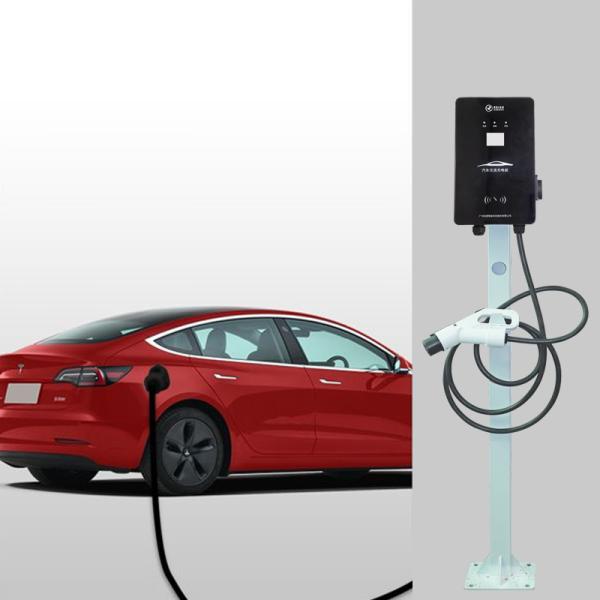

Level 2 AC Electric Car Wall Charger 7kw 32a With OLCD Screen
Level 2 AC Electric Car Wall Charger 7kw 32a With OLCD Screen
Specifications
Brand Name :
RUISU
Model Number :
RSAC220-7KW
Certification :
CE ISO
Place of Origin :
GUANGZHOU,CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1500 Pcs Per Month
Delivery Time :
20-40 DAYS
Packaging Details :
Dimension (H*W*D)(mm) 220*110*355
Input Frequency :
45~55Hz
Box Materia :
Engineering plastics
Installation Method :
Floor Stand
Cable Length :
5m
Human-machine Display :
4.3" Color Screen
Charging Operation :
Swiping card / scanning code
Description

7kw 32a Type 1 2 Level 2 EV AC Station OLCD Screen Car Manufacture Electric Vehicle Charger With Battery

Advantages:
1.Sheet metal box,with a protection level of outdoor IP54;
2.Accurate measurement,time-of-use billing; start by swiping card scanning code, support WeChat/Alipay payment;
3.Have protection function against lightning,overload,short-circuit,over-temperature,current leakage,emergency stop,etc
4.Easy to install (wall/post-mounted)and maintain;
5.Charging options: settings forcharging time,SOClevel,fee and appointment;
6.It can be connected to 380V three-phase power supply,and the power can reach 11KW;
7.Have a variety ofversions to meet different needs;

Technical Parameters:

Product Type 7KW AC Charger (Universal Operation Version)
Product Model RSAC220-7KW
Dimension (H*W*D)(mm) 220*110*355
Height (mm) 1466mm high after mounted on the post
Display Mode LED Display
Input Voltage 220VAC, 1 phase + N+PE
Output Power (KW) 7
Input Frequency (HZ) 45~55Hz
Max. Output Current (A) 32
Length of Charging Gun (m) 5
Electric Leakage Protection (mA) 30
Human-machine Display 4.3" Color Screen
Charging Operation Swiping card / scanning code
Measuring and Accounting Time-sharing accounting
Running Indication Power supply, charging, fault
Heat Dissipation Control Natural cooling
Protection Function Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc
Charging Selection Self-provided, timing, quantitation, fixed fee, appointment etc.
Payment Method RFID card, WeChat Official Account, Alipay
Communication Interface CAN with standard configuration, Ethernet, RS485, RS232, GPRS
Protection Grade / Shell Material Outdoor IP54 / sheet metal shell
Optional Install the bracket when landing hanger
Product Introduction 1. 7KW intelligent AC charger is capable of running status monitoring, fault monitoring, charging measuring and accounting, remote control during charging and other functions;
2. Humanized operation: the charging, accounting and other operations can be realized on phone APP;
3. Reliable material: sheet metal shell is adopted to make it can be used outdoor and resist against complex climate And environment, with the waterproof and dust-proof grade up to IP54;
4. Safe and stable: it's capable of lightning protection, over-load, short-circuit, electric leakage protection;

Level 2 AC Electric Car Wall Charger 7kw 32a With OLCD Screen

After-sale Service:
1. Two years warranty for the whole body.
2. If any parts break during the period, it's free replacement.
3. Professional technical engineer support for installation&operation and communication connection assistance between your app and our OCPP platform.
Additional Options:
1. Customized cable length.
2. Customized charger connector.
3. Customized Box color and customized logo.
