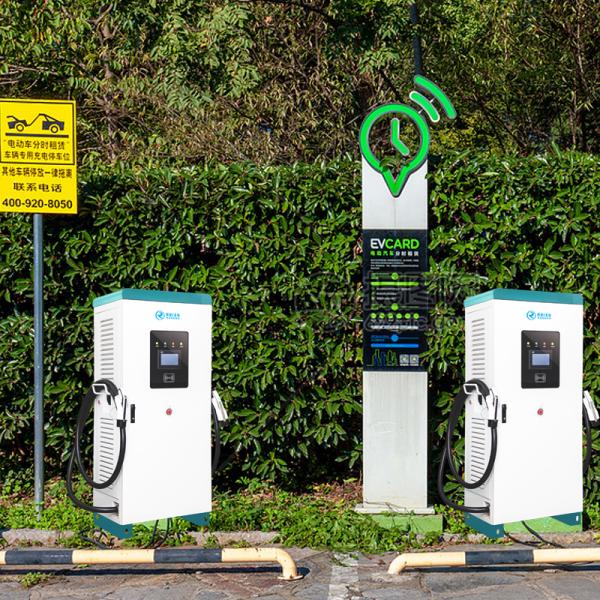

Fast DC 60kw EV Charger With LCD Display Double Charging Gun
Fast DC 60kw EV Charger With LCD Display Double Charging Gun
Specifications
Brand Name :
RUISU
Model Number :
RSDC1000-60KW
Certification :
CE ISO
Place of Origin :
GUANGZHOU,CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1500 Pcs Per Month
Delivery Time :
20-40 DAYS
Packaging Details :
Dimension (H*W*D)(mm) 830*824*1966
Input Voltage :
380VAC, 1 phase + N+PE
Output Power (KW) :
60KW
Input Frequency (HZ) :
45~55Hz
Output Voltage (V) :
200-1000Vdc
Max. Output Current (A) :
0-250
Optional :
Install the bracket when landing; hanger
Description

60KW Fast DC Ev Charger Electric Vehicle LCD Charging Station Double Charging Gun

Advantages:

1. Meet the charging requirements of all models of electric vehicles with different powers and dynamically match the charging power required by the electric vehicles connected to any terminal.

2. Equip intelligent charging module, which has the advantages of high power, outstanding efficiency, low harmonics, and high intelligence.

3. Dynamically allocate the charging power according to the charging demand from the BMS of the charging vehicle to ensure charging safety.

4. Standard 4G communication module; charging operation swipe card / scan code; payment method: RFID card / WeChat/Alipay.

5. Have two chargers in standard configuration, but optionally have single charger.

Technical Parameters:

Product Type RSDC 60KW DC Charge
Product Model RSDC1000-60KW
Dimension (H*W*D)(mm) 810* 511*1685
Display Mode LED Display
Input Voltage 380VAC, 1 phase + N+PE
Output Power (KW) 60
Input Frequency (HZ) 45~55Hz
Output Voltage (V) 200-1000Vdc
Max. Output Current (A) 0-250
Length of Charging Gun (m) 5
Electric Leakage Protection (mA) 30
Human-machine Display 7" Color Screen
Charging Operation Swiping card / scanning code
Measuring and Accounting Time-sharing accounting
Running Indication Power supply, charging, fault
Heat Dissipation Control Natural cooling
Protection Function Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc
Charging Selection Self-provided, timing, quantitation, fixed fee, appointment etc.
Payment Method RFID card, WeChat Official Account, Alipay
Communication Interface CAN with standard configuration, Ethernet, RS485, RS232, GPRS
Protection Grade / Shell Material Outdoor IP54 / sheet metal shell
Optional Install the bracket when landing; hanger
Product Introduction 1.60KW Intergrated charger is capable of running status monitoring, fault monitoring, charging measuring and accounting, remote control during charging and other functions;
2.Humanized operation: the charging, accounting and other operations can be realized on phone APP;
3.Reliable material: sheet metal shell is adopted to make it can be used outdoor and resist against complex climate And environment, with the waterproof and dust-proof grade up to IP54;
4.Safe and stable: it's capable of lightning protection, over-load, short-circuit, electric leakage protection;

Fast DC 60kw EV Charger With LCD Display Double Charging Gun

After-sale Service:
1. Two years warranty for the whole body.
2. If any parts break during the period, it's free replacement.
3. Professional technical engineer support for installation&operation and communication connection assistance between your app and our OCPP platform.
Additional Options:
1. Customized cable length.
2. Customized charger connector.
3. Customized Box color and customized logo.

Factory Show

Fast DC 60kw EV Charger With LCD Display Double Charging Gun

R&D and production

Fast DC 60kw EV Charger With LCD Display Double Charging Gun

Produce Department

Fast DC 60kw EV Charger With LCD Display Double Charging Gun

Using Applications

Fast DC 60kw EV Charger With LCD Display Double Charging Gun
