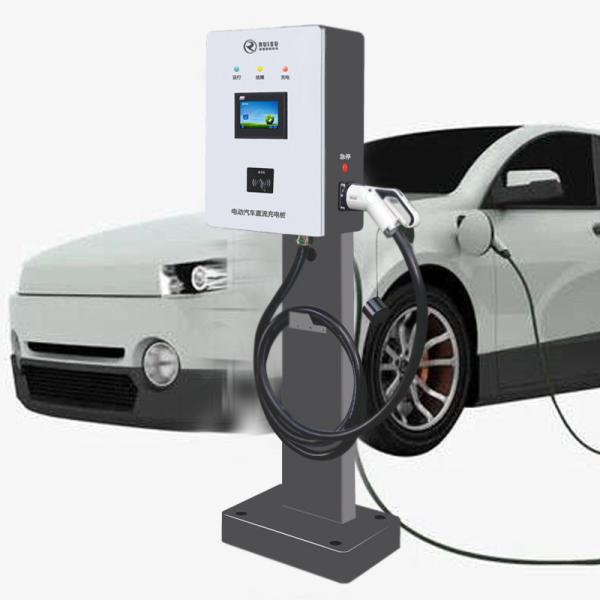

Commercial 30kw EV Charger Intelligent Waterproof With GbT Single Gun
Commercial 30kw EV Charger Intelligent Waterproof With GbT Single Gun
Specifications
Brand Name :
RUISU
Model Number :
RSDC1000-30KW
Certification :
CE ISO
Place of Origin :
GUANGZHOU,CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1500 Pcs Per Month
Delivery Time :
20-30 DAYS
Packaging Details :
Dimension (H*W*D): 473*280*1711 (mm)
AC Input Connection :
3 Phase+PE
L1+L2+L3+PE (America) :
480 Vac±15%
Max. Input Power :
50A @ 380V
Frequency :
50 /60 Hz
Max. Output Power :
30KW
Description

30Kw Commercial Ev Dc Fast Charger Manufacturers Station GbT Single Gun Electric Vehicle Dc Charging Pile

Advantage:

1. Ultra-wide charging range: 200-1000V, BMS power supply: 12/24V;

2. Support charging card, APR WeChat, Alipay and other payment methods;

3. Adopt efficient modules, with high power factor and an efficiency of more than 96%;

4.4.3" color touch screen, with friendly visual interface to present various information;

5. Multiple protection functions: protection against lightning, overload, short circuit, over temperature, current

leakage, emergency stop, etc.

6. Charging options: settings for charging time, SOC level, fee, appointment, etc.

7. Sheet metal shell, with a protection level of outdoor IP54

Technical Parameters:

Product Type 30KW American Standard DC Charger
Product Model RSDC1000-30KW
Dimension (H*W*D)(mm) 473*280*1711
Display Mode 4.3" Color Touch Screen / 7" Color Touch Screen
AC Input Voltage Range (V) 380±15%, 3 phases +N+PE
Frequency Range (Hz) 50/60Hz
Power Factor ≥0.99
Efficiency ≥95%
Output Voltage Range (V) 500-500Vdc
Output Voltage Range under Constant Power (V) 500-500Vdc
Output Power (Kw) 30
Max. Output Current (A) 80A@375V 30A@1000V
Charging Interface (Nos.) 1
Length of Charging Gun (m) 5
Noise (dB) <65
Altitude (m) ≤2000
Working Temperature (ºC) - 20~50ºC
Storage Temperature (ºC) - 40~70
Average Relative Humidity 5%~95%
Protective Function Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc.
Charging Selection Self-provided, timing, quantitation, fixed fee, appointment etc.
Payment Method RFID card, WeChat Official Account, Alipay
Communication Interface CAN with standard configuration, Ethernet, RS485, RS232, GPRS
Protection Grade / Shell Material Outdoor IP54 / sheet metal shell
Product Introduction 1. Friendly visual interface, multiple information displays, prompt information, IC card information etc.;
2. Electric-energy acquisition system and charge accounting system provides the records of earning and spending. IC card and WeChat can be used for payment;
3. When the electric vehicle is charging, the machine will automatically stop if the battery is full and remind the user through indicator light;
4. In case of over-voltage, under-voltage, short-circuit, electric leakage and connection fault, the machine will stop charging and alarm through indicator light;
5. Industrial design, superior temperature adaptability, it has the long service life with protection grader of IP54;
6. The whole industrial chain of production mode for charging pile can sure the reliability of hardware.

Commercial 30kw EV Charger Intelligent Waterproof With GbT Single Gun

Factory Show

Commercial 30kw EV Charger Intelligent Waterproof With GbT Single Gun

R&D and production

Commercial 30kw EV Charger Intelligent Waterproof With GbT Single Gun

Production and Quality

Commercial 30kw EV Charger Intelligent Waterproof With GbT Single Gun

Projects Case

Commercial 30kw EV Charger Intelligent Waterproof With GbT Single Gun
