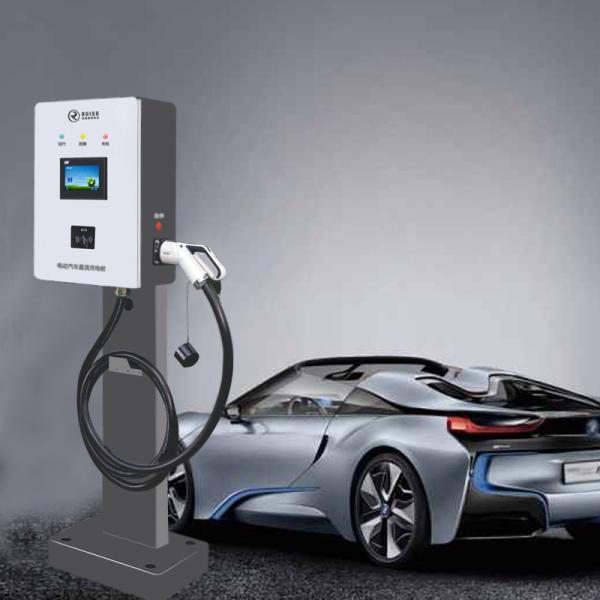

3 Phases Smart Car Charging Station , EVSE Outdoor Electric Car Charger 30kw
3 Phases Smart Car Charging Station , EVSE Outdoor Electric Car Charger 30kw
Specifications
Brand Name :
RUISU
Model Number :
RSDC1000-30KW
Certification :
CE ISO
Place of Origin :
GUANGZHOU,CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1500 Pcs Per Month
Delivery Time :
20-40 DAYS
Packaging Details :
Dimension (H*W*D)mm: 473*280*1711
AC Input Voltage Range (V) :
380±15%, 3 phases +N+PE
Output Voltage Range (V) :
500-500Vdc
Max. Output Current (A) :
80A@375V 30A@1000V
Frequency Range (Hz) :
50/60Hz
Description

30kw Ev Charger Station DC GB/T Ev Charger Supply Single Connector EVSE Electric Car Charging

Advantage:

1. Ultra-wide charging range: 200-1000V, BMS power supply: 12/24V;

2. Support charging card, APR WeChat, Alipay and other payment methods;

3. Adopt efficient modules, with high power factor and an efficiency of more than 96%;

4.4.3" color touch screen, with friendly visual interface to present various information;

5. Multiple protection functions: protection against lightning, overload, short circuit, over temperature, current

leakage, emergency stop, etc.

6. Charging options: settings for charging time, SOC level, fee, appointment, etc.

7. Sheet metal shell, with a protection level of outdoor IP54

Technical Parameters:

Product Type 30KW American Standard DC Charger
Product Model RSDC1000-30KW
Dimension (H*W*D)(mm) 473*280*1711
Display Mode 4.3" Color Touch Screen / 7" Color Touch Screen
AC Input Voltage Range (V) 380±15%, 3 phases +N+PE
Frequency Range (Hz) 50/60Hz
Power Factor ≥0.99
Efficiency ≥95%
Output Voltage Range (V) 500-500Vdc
Output Voltage Range under Constant Power (V) 500-500Vdc
Output Power (Kw) 30
Max. Output Current (A) 80A@375V 30A@1000V
Charging Interface (Nos.) 1
Length of Charging Gun (m) 5
Noise (dB) <65
Altitude (m) ≤2000
Working Temperature (ºC) - 20~50ºC
Storage Temperature (ºC) - 40~70
Average Relative Humidity 5%~95%
Protective Function Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc.
Charging Selection Self-provided, timing, quantitation, fixed fee, appointment etc.
Payment Method RFID card, WeChat Official Account, Alipay
Communication Interface CAN with standard configuration, Ethernet, RS485, RS232, GPRS
Protection Grade / Shell Material Outdoor IP54 / sheet metal shell
Product Introduction 1. Friendly visual interface, multiple information displays, prompt information, IC card information etc.;
2. Electric-energy acquisition system and charge accounting system provides the records of earning and spending. IC card and WeChat can be used for payment;
3. When the electric vehicle is charging, the machine will automatically stop if the battery is full and remind the user through indicator light;
4. In case of over-voltage, under-voltage, short-circuit, electric leakage and connection fault, the machine will stop charging and alarm through indicator light;
5. Industrial design, superior temperature adaptability, it has the long service life with protection grader of IP54;
6. The whole industrial chain of production mode for charging pile can sure the reliability of hardware.

3 Phases Smart Car Charging Station , EVSE Outdoor Electric Car Charger 30kw

Factory Show

3 Phases Smart Car Charging Station , EVSE Outdoor Electric Car Charger 30kw

R&D and production

3 Phases Smart Car Charging Station , EVSE Outdoor Electric Car Charger 30kw

Production and Quality

3 Phases Smart Car Charging Station , EVSE Outdoor Electric Car Charger 30kw

Projects Case

3 Phases Smart Car Charging Station , EVSE Outdoor Electric Car Charger 30kw
