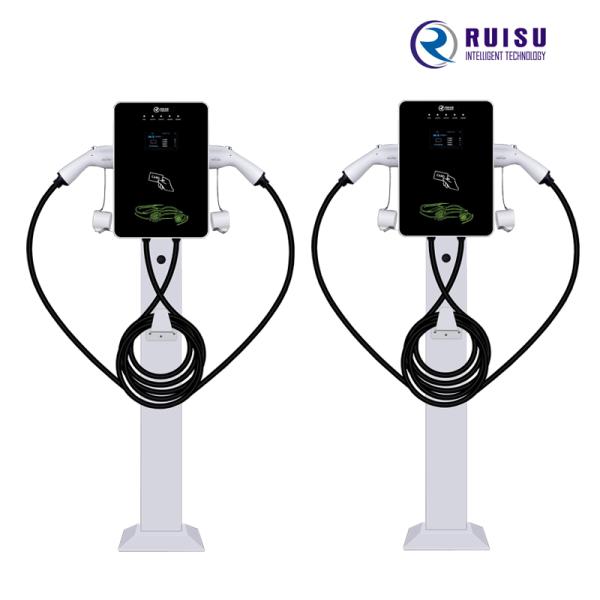

14KW 32A AC EV Charger Single Phase Type 2 Floor Stand With 5m Cable
14KW 32A AC EV Charger Single Phase Type 2 Floor Stand With 5m Cable
14KW 32A AC EV Charger Single Phase Type 2 Floor Stand With 5m Cable
14KW 32A AC EV Charger Single Phase Type 2 Floor Stand With 5m Cable
Specifications
Brand Name :
RUISU
Model Number :
RSAC220-14KW
Certification :
CE
Place of Origin :
GUANGZHOU,CHINA
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
20-30 DAYS
Packaging Details :
Dimension (H*W*D)(mm): 310*130*385mm
Version :
Operation
Dimension (H*W*D)(mm) :
220*110*355
Cable Length :
5m
Input Frequency :
45~55Hz
Installation Method :
Floor Stand
Box Materia :
Sheet Metal
Description

AC 14KW 32A Single Phase Type2 EV Charger Wall Box Operation Version Charging Station

Advantage:

1.4.3” LCD screen to present charging progress, fees to be charged and other information

2. Have high expandability and support 4G wireless communication;

3. Accurate measurement, time-of-usc billing; swiping card / scan code, support WcChat/Alipay payment;

4. High protection level: adopt sheet metal shell which is waterproof and dustproof, with a protection level of IP54, as well as protection against lightning, overload, short-circuit, over-temperature, current leakage, emergency stop, etc.;

5. Operation stably without noise;

6. Easy to install (wall/post-mounted) and maintain;

7. Support cloud management, and provide convenient and considerate operation management solutions for business users;

8. Charging options: settings for charging time, SOC level, fee and appointment;

9. Compatible with mainstream charging management platforms;

Technical Parameters:

Product Type 14KW AC Charger (Operation Version)
Product Model RSAC220-14KW
Dimension (H*W*D)(mm)

310*130*385mm
Height (mm) 1470mm high after mounted on the post
Display Mode LED Display
Input Voltage 220VAC, 1 phase + N+PE
Output Power (KW) 7
Input Frequency (HZ) 45~55Hz
Max. Output Current (A) 32
Length of Charging Gun (m) 5
Electric Leakage Protection (mA) 30
Human-machine Display 4.3" Color Screen
Charging Operation Swiping card / scanning code
Measuring and Accounting Time-sharing accounting
Running Indication Power supply, charging, fault
Heat Dissipation Control Natural cooling
Protection Function Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc
Charging Selection Self-provided, timing, quantitation, fixed fee, appointment etc.
Payment Method RFID card, WeChat Official Account, Alipay
Communication Interface CAN with standard configuration, Ethernet, RS485, RS232, GPRS
Protection Grade / Shell Material Outdoor IP54 / sheet metal shell
Optional Install the bracket when landing hanger
Product Introduction 1.14KW intelligent AC charger is capable of running status monitoring, fault monitoring, charging measuring and accounting, remote control during charging and other functions;
2. Humanized operation: the charging, accounting and other operations can be realized on phone APP;
3.Reliable material: sheet metal shell is adopted to make it can be used outdoor and resist against complex climate And environment, with the waterproof and dust-proof grade up to IP54;
4.Safe and stable: it's capable of lightning protection, over-load, short-circuit, electric leakage protection;

14KW 32A AC EV Charger Single Phase Type 2 Floor Stand With 5m Cable

After-sale Service:
1. Two years warranty for the whole body.
2. If any parts break during the period, it's free replacement.
3. Professional technical engineer support for installation&operation and communication connection assistance between your app and our OCPP platform.
Additional Options:
1. Customized cable length.
2. Customized charger connector.
3. Customized Box color and customized logo.

Factory Show

14KW 32A AC EV Charger Single Phase Type 2 Floor Stand With 5m Cable

R&D and production

14KW 32A AC EV Charger Single Phase Type 2 Floor Stand With 5m Cable

Production and Quality

14KW 32A AC EV Charger Single Phase Type 2 Floor Stand With 5m Cable

Produce Department

14KW 32A AC EV Charger Single Phase Type 2 Floor Stand With 5m Cable

Projects Case

14KW 32A AC EV Charger Single Phase Type 2 Floor Stand With 5m Cable

Using Applications

14KW 32A AC EV Charger Single Phase Type 2 Floor Stand With 5m Cable
