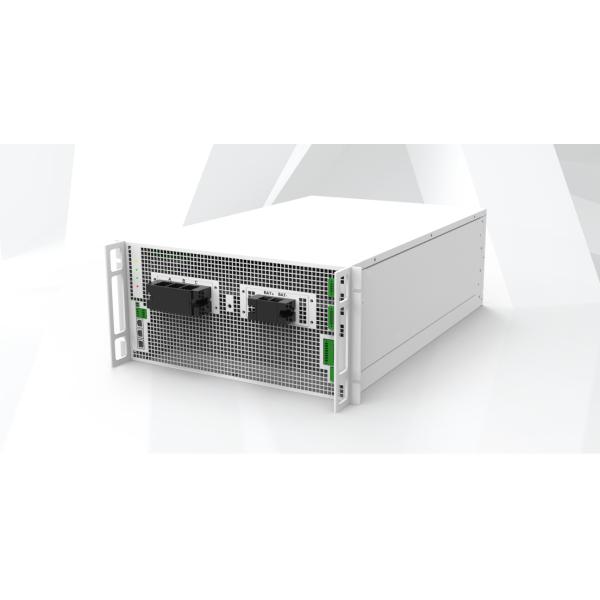

105 KW AC to DC Bidirectional Converter On-grid and Off-grid Type for Energy Storage System
105 KW AC to DC Bidirectional Converter On-grid and Off-grid Type for Energy Storage System
105 KW AC to DC Bidirectional Converter On-grid and Off-grid Type for Energy Storage System
105 KW AC to DC Bidirectional Converter On-grid and Off-grid Type for Energy Storage System
105 KW AC to DC Bidirectional Converter On-grid and Off-grid Type for Energy Storage System
105 KW AC to DC Bidirectional Converter On-grid and Off-grid Type for Energy Storage System
105 KW AC to DC Bidirectional Converter On-grid and Off-grid Type for Energy Storage System
105 KW AC to DC Bidirectional Converter On-grid and Off-grid Type for Energy Storage System
Specifications
Brand Name :
ANE
Model Number :
NESI-105KR1-1P
Place of Origin :
China
MOQ :
5
Price :
Exwork: 6,000~9,000 USD
Payment Terms :
T/T,
Supply Ability :
2000 Per month
Delivery Time :
45 work days
Packaging Details :
Wooden Box
Certification :
CE,G59
Rated power :
105kW
Voltage range :
DC600V~DC900V
Maximum current :
175A
Grid type :
3L+PE
Rated voltage :
AC380V/400V
Rated current :
159A
Rated frequency :
50Hz/60Hz
Power factor :
-1~+1
Dynamic response :
60ms@100% Linear load
Unbalanced load capacity :
100%
Overload capacity :
Overload≤110%, run ≥10min; Overload [110%~120%], run ≥ 1min
Maximum efficiency :
98.2%
Description

NESI-105 KW AC to DC Bidirectional Converter On-grid and Off-grid Type for Energy Storage System

105 KW AC to DC Bidirectional Converter On-grid and Off-grid Type for Energy Storage System
Product Overview
The 105kW on-grid and off-grid group series type energy storage converter is a single branch standard rack type product. It can be used in a variety of grid-connected and off-grid application scenarios, such as emergency power backup, mobile energy storage, transformer capacity expansion in platform area, peak-load shifting, or dynamic capacity increase, etc. At the same time, it can rapidly expand capacity according to user requirements, and conveniently realize the parallel networking of multiple devices to form a small and medium-sized energy storage system. Can be used independently off-grid, with strong load applicability; the power grid has strong adaptability and excellent usability; Easy integration, single module and a cluster of conventional standard batteries on the market to form a standardized 0.5C energy storage system, to achieve fine management of batteries.
105 KW AC to DC Bidirectional Converter On-grid and Off-grid Type for Energy Storage System

Features

Convenient multi-equipment grid connection; The multi-branch high-power energy storage system can be formed by multiple PCS in parallel.

The standard rack design can be perfectly combined with the lithium battery cabinet to form a distributed energy storage cabinet.

High power density, small size, easy handling, two people can be installed by hand

Three level design, low harmonics, good power quality.

Can be off-grid use, independent inverter for load.

105 KW AC to DC Bidirectional Converter On-grid and Off-grid Type for Energy Storage System

Product specification

ModelNESI-105KR1-1P


DC side parameters

Voltage rangeDC600V~DC900V
Rated power105kW
Maximum current175A
Number of DC channels1


AC grid-connection parameters

Grid type3L+PE
Rated power105kW
Rated voltageAC380V/400V
Rated current159A
Voltage range-15% ~ +15%
Rated frequency50Hz/60Hz
Frequency rangeRated frequency±3Hz
Power factor-1~+1
Output harmonic≤ 3%

wiring3L+PE
Rated power105kW


AC off-grid parametersRated voltageAC380V/400V
Rated frequency50Hz/60Hz
Maximum current159A
Output harmonic3%@ linear full load
Dynamic response60ms@100% Linear load
Unbalanced load capacity100%
Overload capacityOverload≤110%, run ≥10min; Overload [110%~120%], run ≥ 1min


System parameter

Rated frequency50Hz/60Hz
Frequency accuracy±0.1HZ
Voltage accuracy1%
Voltage range-15% ~ +15%
Maximum efficiency98.2%
Grid-connected and off-grid switchingManual

Environment		Working temperature-25℃～55℃(Derating when temperature is above 45 °C)
Storage temperature-40℃～70℃(No battery)
Relative humidity5％RH ~ 95％ RH ,No condensation
Working altitudeWhen the temperature is 45 °C, derating is not required for 2000m. Derating ranges from 2000m to 4000m
Noise＜68dB

Communications and
Management

Communication interfaceRS485,CAN, LAN, REPO, ETHERNET
Communication protocolCAN, ModBus TCP, ModBus RTU
InstallationRack type
Highest efficiency97.1%

EMC

Class A
CertificationCE,G59,CQC,TUV mark
Isolation methodNo isolation
Protection gradeIP20
Cooling wayAir cooling, intelligent fan speed control
Size (W*H*D)483*220*728mm
