Specifications
Brand Name :
EVPTC
Model Number :
QA
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
$1200-1500 per set
Payment Terms :
T/T
Supply Ability :
100 sets per 2 weeks
Delivery Time :
15-20days
Packaging Details :
carton or wooden case packing
Heat Output :
15-25KW
HV Voltage Range :
DC 250-870V
LV Voltage :
DC 24V nominal
Efficiency :
> 95 %
Controllability Steps :
1%
Dimensions :
365*313*123mm
Weight :
9kg
Temperature Range for Heating :
-40 to 90 ℃
Temperature Range for Ambient :
-40 to 125 ℃
Communication :
CAN OR LIN
Dielectric Strength :
3500 V (DC)
IP Protection Class :
IP 67
EMC :
ECE R10 Rev. 5
Insulation Resistance :
>500MΩ
Service Life :
10 years or 10,000 heating hours
Description

  1. Introduction to EVLINK Heaters:

  2. EVLINK's PTC liquid heater employs cutting-edge relay and IGBT technology to provide efficient and reliable heating solutions for electric buses. Specifically designed to maintain core warmth in extremely cold European climates while ensuring a warm interior, its intelligent PID system enhances the energy efficiency of electric buses, creating a more comfortable riding experience for passengers.

  3. PID PTC Coolant Heater 30KW For European Electric Bus , High Power PTC Electric Heaters

  4. Product Attributes:

  5. EVLINK's PTC liquid heater boasts an IP67 protection rating and supports multilingual technical coordination. Our dedicated team independently formulates heating solutions, ensuring exceptional product quality. The obtained EMC certificate validates the high performance and electromagnetic compatibility of the product.

  6. Applications:

  7. EVLINK's PTC liquid heater has been successfully introduced to the market, widely applied in electric buses and other fields. Compared to the traditional Thermo DC 200, our 30kW heater offers greater power at a more competitive price. This positions EVLINK with a unique competitive advantage in the international market.

  8. PID PTC Coolant Heater 30KW For European Electric Bus , High Power PTC Electric Heaters
  9. Service and Competitive Edge:

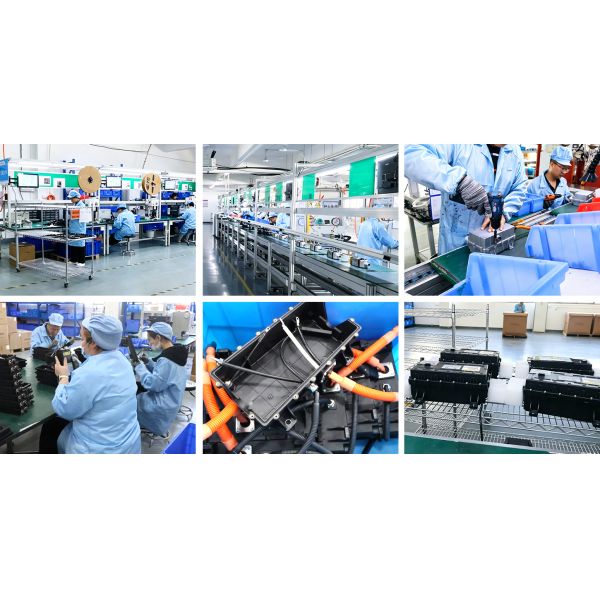

  10. In early 2024, EVLINK signed strategic cooperation agreements with major OEMs, customizing a semi-automatic production line for QA coolant heaters and driving improvements in production and quality levels. With unparalleled dedication and expertise, we provide customers with the highest quality service. We will continue to innovate, striving to meet the growing demands of the market.

PID PTC Coolant Heater 30KW For European Electric Bus , High Power PTC Electric Heaters

Specification:

HVCH QA01 Series
Heat Output 15-25kW
HV Voltage Range DC 250-870V

LV Voltage

DC 24V nominal
Efficiency > 95 %
Controllability Steps 100W
Dimensions 365*313*123mm
Weight 9kg
Temperature Range for Heating -40 to 90 ℃
Temperature Range for Ambient -40 to 125 ℃
Communication CAN or LIN2.1
Dielectric Strength 3500 V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance 500MΩ
Service Life 10 years or 10,000 heating hours

Service and Competitive Advantage:

At EVLINK, our dedication to quality extends beyond delivering outstanding products; it encapsulates a holistic commitment to customer satisfaction. We prioritize understanding and addressing the unique needs of our customers, aiming to establish industry standards for service excellence.

Our competitive edge is forged through an unwavering commitment to innovation, product quality, and customer-centric service. Looking ahead, EVLINK is poised to meet the dynamic demands of the market with unmatched dedication and expertise.
