220VAC Outdoor Level 2 Charger Outlet 7kw Charging Point Commercial
220VAC Outdoor Level 2 Charger Outlet 7kw Charging Point Commercial
220VAC Outdoor Level 2 Charger Outlet 7kw Charging Point Commercial
220VAC Outdoor Level 2 Charger Outlet 7kw Charging Point Commercial
220VAC Outdoor Level 2 Charger Outlet 7kw Charging Point Commercial
220VAC Outdoor Level 2 Charger Outlet 7kw Charging Point Commercial
220VAC Outdoor Level 2 Charger Outlet 7kw Charging Point Commercial
220VAC Outdoor Level 2 Charger Outlet 7kw Charging Point Commercial
Specifications
Brand Name :
Hongshunjin
Model Number :
GS7-AC-B01-NK
Certification :
CE,ROHS.FCC
Place of Origin :
Sichuan,China
MOQ :
1 pieces
Price :
$268.35-$295.15
Payment Terms :
T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability :
1000 Set/Sets per Week
Delivery Time :
3-30 work days
Packaging Details :
L175xW80xH55mm
Impact Protection :
K08
OCPP :
OCPP 1.6 Json (OCPP 2.0 Optional)
Communication :
RFID/Wi-Fi/4G
Ingress Protection :
IP66
RCD :
30mA Type A+6mA DC
Connector :
Type2 Plug
Description

Level 2 EV Charger Station 7kw Charging Point Commercial Type2 Plug 220V AC

Features

With Emergency stop button, and current switch, time book touch button
Product conforms to Low Voltage Directive 2014/35/EU, IEC61851-1:2019
IP54, Weather proof; Leakage current protection; Impact resistance
Charging status and working error simply displayed by LED indicators and LCD screen
Optional function of current choice button to switch current from 8A-32A / 8-16A

Arcing Design


Unique self-cleaning’ design ensures that impurities on the surface of the pins can be removed during each plug-in process.

Ergonomic Design


and Integrated Design
Angled horizontal bending design, in line with the habit of manual force which allows for convenient plugging & unplugging.

K10 rated with an integrated design ensuring that you can charge safely in all weather conditions.

Better Conductivity


Silver plating on the pins ensures greater conductivity, charging efficiency and reduces heat generation.

Temperature Monitoring


Detects if the temperature is higher than the ‘set safe’ value, if this occurs, the current will automatically be cut off.

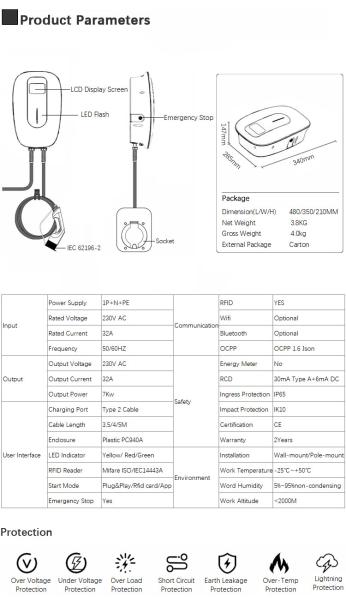

product details

Data
Model
GS7-AC-BO1
GS11-AC-BO1
GS22-AC-BO1
Input
Power Supply
1P+N+PE
3P+N+PE
3P+N+PE
Rated Voltage
230V AC
400V AC
400V AC
Rated Current
32A
16A
32A
Output
Output Voltage
230V AC
400V AC
400V AC
Output Current
32A
16A
32A
Rated Power
7KW
11KW
22KW
User Interface
Charging Port
Type 2
Cable Length
3.5M/4M/5M/10M
LED Indicator
Yellow/Green/Red
Start Mode
Plug&Play / RFID Card / APP
Emergency Stop
YES
Communication
WIFI
Optional
3G/4G/5G
Optional
OCPP
OCPP 1.6 Json (OCPP 2.0 Optional)
Package
Unit Size
340*285*147mm
Package Size
480*350*210mm
480*350*210mm
480*350*210mm
Net Weight
3.8KGS
4.5KGS
4.5KGS
Gross Weight
4KGS
5KGS
5KGS


220VAC Outdoor Level 2 Charger Outlet 7kw Charging Point Commercial220VAC Outdoor Level 2 Charger Outlet 7kw Charging Point Commercial

220VAC Outdoor Level 2 Charger Outlet 7kw Charging Point Commercial

PEN Fault Detection

-An additional CT is installed in the PE conductor to detect any fault current-If the fault current reaches a predetermined
threshold, all conductors are switched off.
-The load and henceforth dangerous PE are become isolated from the supply.

220VAC Outdoor Level 2 Charger Outlet 7kw Charging Point Commercial

Packing & Delivery

CAUTION


1. Don't submerge the EV charging cable in water.
2. Don't step on, fold or knot the cable.
3. Don't drop the EV charging box or place a heavy object on it.
4. Don't place the charging cable near high temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
the power distribution is done by the professionals.
7. Don't put fingers into the charging connector when the power plug is still connecting to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging using.
10. Don't use this device with other brand's extension cord or adapter.
