1 Phase 22KW AC EV Charger 2 Plug Model 3 Type 2 Cable OEM ODM
1 Phase 22KW AC EV Charger 2 Plug Model 3 Type 2 Cable OEM ODM
1 Phase 22KW AC EV Charger 2 Plug Model 3 Type 2 Cable OEM ODM
1 Phase 22KW AC EV Charger 2 Plug Model 3 Type 2 Cable OEM ODM
1 Phase 22KW AC EV Charger 2 Plug Model 3 Type 2 Cable OEM ODM
1 Phase 22KW AC EV Charger 2 Plug Model 3 Type 2 Cable OEM ODM
1 Phase 22KW AC EV Charger 2 Plug Model 3 Type 2 Cable OEM ODM
1 Phase 22KW AC EV Charger 2 Plug Model 3 Type 2 Cable OEM ODM
Specifications
Brand Name :
Hongshunjin
Model Number :
CB32A-M3
Certification :
CE RoHS FCC
Place of Origin :
Sichuan, China
MOQ :
1
Price :
＄ $374.51-$394.35 Pieces
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 pieces Per week
Delivery Time :
10-60 work days
Application :
Commercial or home use
Material :
Black Tempered Glass
Key word :
Ev Charging Station
Model :
7Kw 11Kw 22Kw
Rated Output Power :
Type 2
Charging control pattern :
LCD/ LED/RFID/Emergency stop button/APP
Description

Energy Mode 3 Type 2 AC EV Charger Charging Station 2 Plug 3 Phase 22KW 1 Phase

OTHER FUNCTIONS

1. o-pen protection
2. rcd: ac30ma+dc6ma
3. ingress protection
4. over current protection
5. ground protection
6. over/under voltage protection
7. over temperature protection
We have assembled three closely related factories to produce new energy charging equipment. The Chinese government undertakes projects, focusing on the research and development of wall-mounted charging stations and DC floor-standing charging stations, which can give you sufficient quality and after-sales technical support. The attachment is our product catalogue. We provide you with several options for your purchasing needs.
In addition, for OEM customization, we can provide logo printing and outer packaging customization for free, and can also perform CMS testing for you. Our factory is in Shenzhen, the transportation is very convenient, there are DHL, UPS, etc., which can help you receive the product within 5-8 days.

Benefit

EV Charger Model
CB32A-M3 (Type 2 wall mount 22KW ev charger)
Version
Home Charger (please contact if need the commerical ev charger)
Electric Features
Input
340-460VAC, 50/60Hz
Max Output Power
22kW (three phase)
Max Output Current
32A

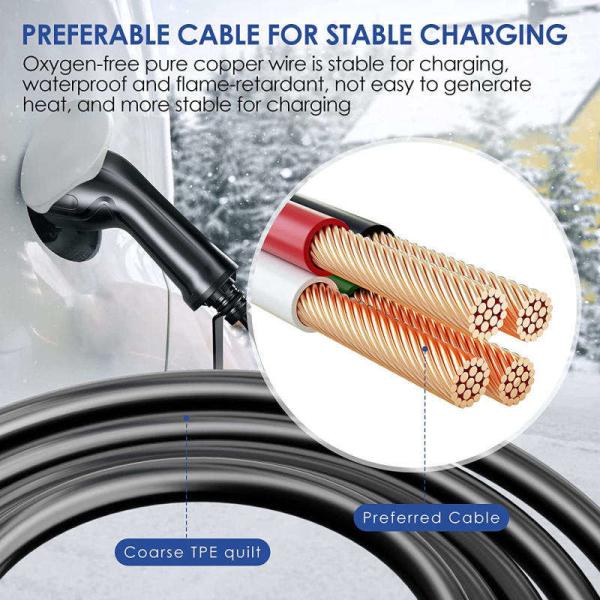

Standard Cable length
5m / 16.4ft (6m, 7m, 8m or customized length available )
Operation Environment
Storage Temperature
-25℃ ~ +85℃
Operation Temperature
-20℃ ~ +65℃
Relative humidity
0-95% non-condensing
Maximum altitude
<2000m
Waterproof Class
IP65
Cooling Method
Natural Air Cooling
Mounting way
Wall-mounting bracket/Ground-mounting pole (optional)
Function & Accessories
RFID
Yes(with NFC)
LCD
4.3-inch color display(3.0-inch display area )
RCD
Type A / Type A+6mA
LED Indicator light
Yes
Intelligent Power Ajustment
Yes
Ethernet / WIFI / 4G
Optional
Certification
CE RoHS
Machanical Drawing
Measures (LxWxH)
340x240x120mm (excluding the metal stand )
N.W./G.W.
12KG / 13KG
Master Carton Packing
540x340x180mm (LxWxH), 1pc each carton

1 Phase 22KW AC EV Charger 2 Plug Model 3 Type 2 Cable OEM ODM1 Phase 22KW AC EV Charger 2 Plug Model 3 Type 2 Cable OEM ODM1 Phase 22KW AC EV Charger 2 Plug Model 3 Type 2 Cable OEM ODM1 Phase 22KW AC EV Charger 2 Plug Model 3 Type 2 Cable OEM ODM

Features

1. The use of high-stability, high-performance ARM chips and powerful system resources make this product more stable and reliable;
2. The display interface is a 4.3-inch LED LCD screen that displays rich information, high-resolution display content is clear and rich, and the interface is beautiful;
3. It has complete protection functions: over-voltage and under-voltage protection, AC input and output over-current protection, output current limit, over-current protection, over-temperature protection, D-level lightning protection, etc.;
4. The panel is made of tempered glass, and the case is made of cast aluminum in one-time molding, which is compact, exquisite and durable; 5. The structure of the whole machine adopts rainproof and dustproof design, and the protection grade is IP55, which meets the requirements of outdoor operation.

1. Function test:
A.charging function control test,
B.communication function test,
C.insulation detection function test,
D.vehicle plug locking function test,
E.pre-charging function test
2. Charging output test:
A.four ui large constant power output test,
B.power control test,
C.low-voltage auxiliary power test,
D.output current response time test,
E.transmission out current stopping rate test,
F.efficiency test,
G.power factor test.
3. control guide test:
A.charging control state test,
B.charging connection control timing test,
C.control guide voltage limit test,
D.communication interruption test,
E.protection grounding continuity loss test,
F.connection detection signal disconnection test,
G.battery voltage and communication message match test,
H.battery voltage exceeds the charger range test,
I.draw battery two protection function vehicle zu high allowable total voltage mismatch test,
J.charging demand is greater than Battery parameters test.
