AC 380V 220V 1P 7kw Car Charger Level 2 Ev Chargers 3.5m Cable
AC 380V 220V 1P 7kw Car Charger Level 2 Ev Chargers 3.5m Cable
AC 380V 220V 1P 7kw Car Charger Level 2 Ev Chargers 3.5m Cable
AC 380V 220V 1P 7kw Car Charger Level 2 Ev Chargers 3.5m Cable
AC 380V 220V 1P 7kw Car Charger Level 2 Ev Chargers 3.5m Cable
AC 380V 220V 1P 7kw Car Charger Level 2 Ev Chargers 3.5m Cable
AC 380V 220V 1P 7kw Car Charger Level 2 Ev Chargers 3.5m Cable
AC 380V 220V 1P 7kw Car Charger Level 2 Ev Chargers 3.5m Cable

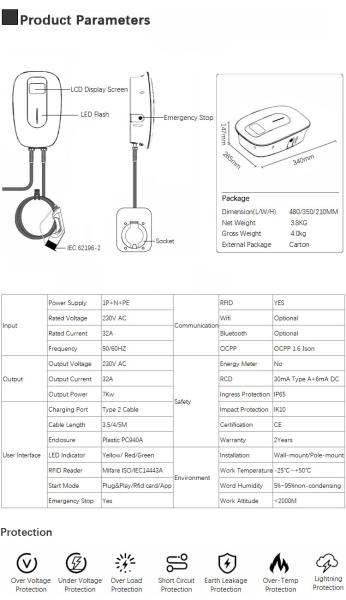

Specifications
Brand Name :
Hongshunjin
Model Number :
GS7-AC-B01-NK
Certification :
CE,ROHS.FCC
Place of Origin :
Sichuan,China
MOQ :
1 pieces
Price :
$268.35-$295.15
Payment Terms :
T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability :
1000 Set/Sets per Week
Delivery Time :
3-30 work days
Packaging Details :
L175xW80xH55mm
Charging Standard :
IEC 62196-2 (Type 2)
Input voltage :
220V AC
Communication :
RFID/Wi-Fi/4G
Ingress Protection :
IP66
RCD :
30mA Type A+6mA DC
Connector :
Type2 Plug
Description

7kw Car Charger Level 2 Wallbox 32A 1P 3.5 Meters 220V AC 380V type 2

About us

Honghsunjin Electric is a specialist in EV charging station installations around China in multiple different scenarios.
Our products possess the top-graded materials to withstand extreme conditions, namely being temperature-resistant, water-proof, and dust-proof, which comply with the IP55 and IP65 certification.
We can install wall or floor-mounted EV Chargers, which are applied in both indoor and outdoor settings, such as garages at home or villa, carports, on-street parking and driveways.
Those charging stations can interconnect with payment systems and back-office support through the OCPP platform for residential management and commercial use.
Hongshunjin Electric incorporates solar PV systems or energy storage systems into our products. Meanwhile, all EV chargers are qualified with level II charging speed. Therefore, people can efficiently charge their electric vehicles by using solar energy.


Note

1.Don ' t use the EVSE with an extension cord or adaptor.
2.The EVSE is only for EV charging using.
3.Don't step on, fold or knot the cable.
4.Don't touch the EVSE contact surface with heat dirt or water.
5.Don't drop the EVSE or place a heavy object on it.
6.The PE terminal of the EVSE must be reliably grounded.


product details

Data
Model
GS7-AC-BO1
GS11-AC-BO1
GS22-AC-BO1
Input
Power Supply
1P+N+PE
3P+N+PE
3P+N+PE
Rated Voltage
230V AC
400V AC
400V AC
Rated Current
32A
16A
32A
Output
Output Voltage
230V AC
400V AC
400V AC
Output Current
32A
16A
32A
Rated Power
7KW
11KW
22KW
User Interface
Charging Port
Type 2
Cable Length
3.5M/4M/5M/10M
LED Indicator
Yellow/Green/Red
Start Mode
Plug&Play / RFID Card / APP
Emergency Stop
YES
Communication
WIFI
Optional
3G/4G/5G
Optional
OCPP
OCPP 1.6 Json (OCPP 2.0 Optional)
Package
Unit Size
340*285*147mm
Package Size
480*350*210mm
480*350*210mm
480*350*210mm
Net Weight
3.8KGS
4.5KGS
4.5KGS
Gross Weight
4KGS
5KGS
5KGS


AC 380V 220V 1P 7kw Car Charger Level 2 Ev Chargers 3.5m CableAC 380V 220V 1P 7kw Car Charger Level 2 Ev Chargers 3.5m Cable

AC 380V 220V 1P 7kw Car Charger Level 2 Ev Chargers 3.5m Cable

PEN Fault Detection

-An additional CT is installed in the PE conductor to detect any fault current-If the fault current reaches a predetermined
threshold, all conductors are switched off.
-The load and henceforth dangerous PE are become isolated from the supply.

AC 380V 220V 1P 7kw Car Charger Level 2 Ev Chargers 3.5m Cable

Packing & Delivery

We have rich experiences in EV Charging field. Thanks to cooperation with many clients from different continents and countries, We have customized lots of products for many clients. Thus we know how to provide more suitable products and solutions according to different regions. We are totally ready to provide our customers with timely, effective and full of care service to help them solve most of the EV Charging issues.
