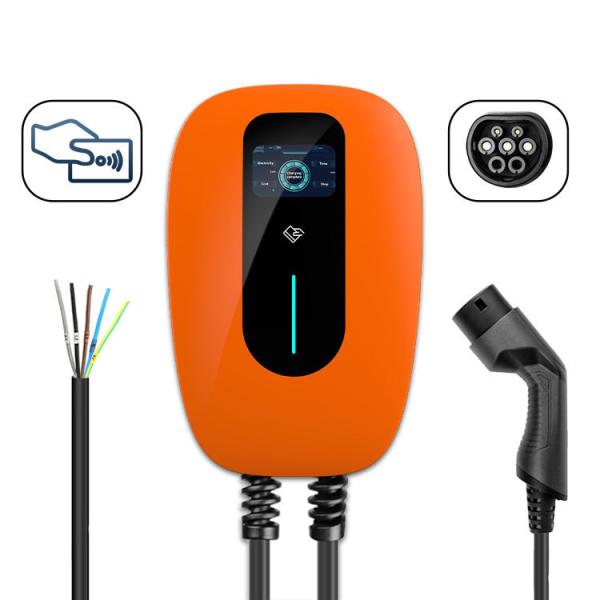

400V AC Level 2 Car Charging Station EVSE Box For Home Residental
400V AC Level 2 Car Charging Station EVSE Box For Home Residental
400V AC Level 2 Car Charging Station EVSE Box For Home Residental
400V AC Level 2 Car Charging Station EVSE Box For Home Residental
400V AC Level 2 Car Charging Station EVSE Box For Home Residental
400V AC Level 2 Car Charging Station EVSE Box For Home Residental
400V AC Level 2 Car Charging Station EVSE Box For Home Residental
400V AC Level 2 Car Charging Station EVSE Box For Home Residental
Specifications
Brand Name :
Hongshunjin
Model Number :
CB32A-M3
Certification :
CE RoHS FCC
Place of Origin :
Sichuan, China
MOQ :
1
Price :
＄ $374.51-$394.35 Pieces
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 pieces Per week
Delivery Time :
10-60 work days
Packaging Details :
Packing A: 1). 2 yellow straps 2). Shrink wrap surrounding the entire box 3). Specially for the express delivery Packing B: 1). Box + mater carto
Application :
Commercial or home use
Material :
Black Tempered Glass
Key word :
Residental Ev Charging Pile
Charging control mode :
WIFI + RFID Card
Rated Output Power :
Type2: 22 kw
Working temperature :
-30℃~+50℃
Description

level 2 car charging station 22kw 400V AC 32A evse ev charger box

400V AC Level 2 Car Charging Station EVSE Box For Home Residental

workshop

At present have production workshop 35000 square meters,staff 358 , with more than 1million sets( electric vehicle charging interface) and 20million pcs/year(battery connector) production capacity. Equipped with precision mold, CNC machining, plastic molding, metal stamping, finished product assembly whole chain of production line.

All products must pass the following inspection before leaving the factory:


1. Function test:
A.charging function control test,
B.communication function test,
C.insulation detection function test,
D.vehicle plug locking function test,
E.pre-charging function test
2. Charging output test:
A.four ui large constant power output test,
B.power control test,
C.low-voltage auxiliary power test,
D.output current response time test,
E.transmission out current stopping rate test,
F.efficiency test,
G.power factor test.
3. control guide test:
A.charging control state test,
B.charging connection control timing test,
C.control guide voltage limit test,
D.communication interruption test,
E.protection grounding continuity loss test,
F.connection detection signal disconnection test,
G.battery voltage and communication message match test,
H.battery voltage exceeds the charger range test,
I.draw battery two protection function vehicle zu high allowable total voltage mismatch test,
J.charging demand is greater than Battery parameters test.

Benefit

EV Charger Model
CB32A-M3 (Type 2 wall mount 22KW ev charger)
Version
Home Charger (please contact if need the commerical ev charger)
Electric Features
Input
340-460VAC, 50/60Hz
Max Output Power
22kW (three phase)
Max Output Current
32A
Standard Cable length
5m / 16.4ft (6m, 7m, 8m or customized length available )
Operation Environment
Storage Temperature
-25℃ ~ +85℃
Operation Temperature
-20℃ ~ +65℃
Relative humidity
0-95% non-condensing
Maximum altitude
<2000m
Waterproof Class
IP65
Cooling Method
Natural Air Cooling
Mounting way
Wall-mounting bracket/Ground-mounting pole (optional)
Function & Accessories
RFID
Yes(with NFC)
LCD
4.3-inch color display(3.0-inch display area )
RCD
Type A / Type A+6mA
LED Indicator light
Yes
Intelligent Power Ajustment
Yes

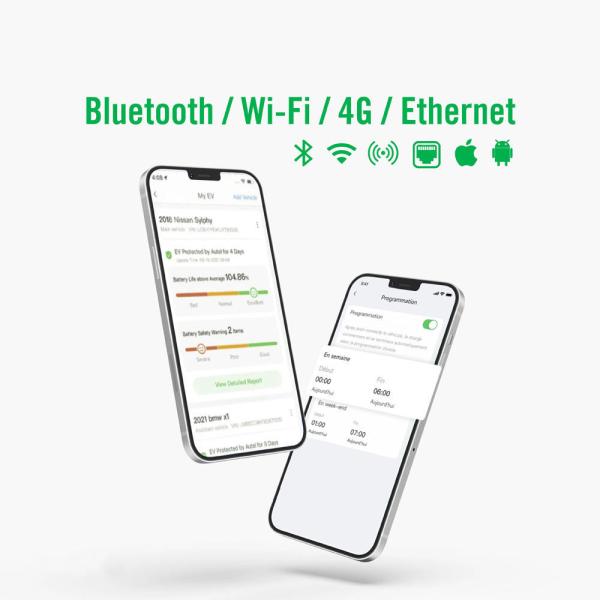

Ethernet / WIFI / 4G
Optional
Certification
CE RoHS
Machanical Drawing
Measures (LxWxH)
340x240x120mm (excluding the metal stand )
N.W./G.W.
12KG / 13KG
Master Carton Packing
540x340x180mm (LxWxH), 1pc each carton

400V AC Level 2 Car Charging Station EVSE Box For Home Residental400V AC Level 2 Car Charging Station EVSE Box For Home Residental400V AC Level 2 Car Charging Station EVSE Box For Home Residental

Our main products are 7KW/11KW/22KW AC charging piles
There are also 60KW/80KW/120KW/160KW DC charging piles
3. Portable charging gun of 5KW/7KW/11KW, etc.
We also support OEM
Are you interested in our products? Looking forward to your reply ~
