16A 3.5KW Home EV Charging Station Portable Type 2 Four Gears Adjustable
16A 3.5KW Home EV Charging Station Portable Type 2 Four Gears Adjustable
16A 3.5KW Home EV Charging Station Portable Type 2 Four Gears Adjustable
16A 3.5KW Home EV Charging Station Portable Type 2 Four Gears Adjustable
16A 3.5KW Home EV Charging Station Portable Type 2 Four Gears Adjustable
16A 3.5KW Home EV Charging Station Portable Type 2 Four Gears Adjustable
16A 3.5KW Home EV Charging Station Portable Type 2 Four Gears Adjustable
16A 3.5KW Home EV Charging Station Portable Type 2 Four Gears Adjustable
Specifications
Brand Name :
Hongshunjin
Model Number :
HSJ7-AC-P02
Certification :
CE,FCC.ROHS
Place of Origin :
Sichuan,China
MOQ :
1 pieces
Price :
USD 112-125/Negotiate
Payment Terms :
T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability :
1000 Set/Sets per Week
Delivery Time :
3-30 work days
Packaging Details :
L175xW80xH55mm
Protection :
OCP/OVP/SCP/OTP
Input Voltage :
230VAC±15%, 50/60Hz
Charging control pattern :
LED , Select button
Protection grade :

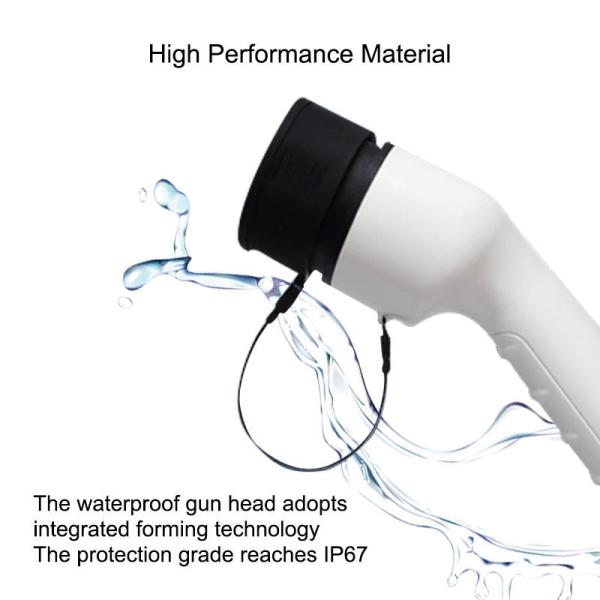

gun head IP67 / control box IP55
Rated power :
1.8 KW -3.5 KW
Cable length :
5M (customized)
Display :
Numerical display + display light
Warranty :
12 months
Description

16A 3.5KW Home EV Charging Station European standard Four gears adjustable

​

Company introduction

Sichuan hongshunjin Co.,Ltd. was founded in 2019.We provide EV Charging solution,including all kinds of EV plugs,sockets,extension cables,connecters and charging equipment with different models with different features for home,business and destination charge points.All of our products are with CE,TUV FCC and UL approval.Our goal is not just providing product,but also providing the cinstantly updated products,perfect project solutions and efficient after-sales service to ensure our customers rank top in the market.

Product Description:

This product is a 3.5KW Portable EV Charging Station,mainly used for AC charging of electric vehicles.This product adopts industrial design principle, easy to install and easy to use.The performance of the charger meets the requirements<IEC 62196-2-2011 Plugs,socket-outlets,vehicle connectors and vehicle inlets-Conductive charging of electric vehicles Part 2>relevant regulation.According to <IEC 61851-1-2012 Electric Vehicle Conductive Charging System Part 1>relevant regulation, and with reference to the "Electric Vehicle Charging Facilities Typical Design" part of the function of the design.The products fully meets the national and industrial standards for electric vehicles.

product details

EV Charger Model
CB16A (3.5KW Type 2 portable ev charger)
Version
Home Charger (please contact if need the commerical ev charger)
Electric Features
Input
230VAC±15% (Single Phase), 50/60Hz
Max Output Power
3.5kW(single phase)
Max Output Current
16A
Standard Cable length
5m / 16.4ft (6m, 7m, 8m or customized length available )
Operation Environment
Storage Temperature
-25℃ ~ +85℃
Operation Temperature
-20℃ ~ +65℃
Relative humidity
0-95% non-condensing
Maximum altitude
<2000m
Waterproof Class
IP67
Cooling Method
Natural Air Cooling
Mounting way
Portable / Wall mounted(optional)
Function & Accessories
RFID
No
LCD
2.7-inch color display
RCD
Type A / Type A+6mA
LED Indicator light
Yes
Intelligent Power Ajustment
6A-16A
Ethernet / WIFI / 4G
No
Certification
CE RoHS
Machanical Drawing
Measures (LxWxH)
L235xW92xH53mm
N.W./G.W.
3.0KG / 3.8KG
Master Carton Packing
420x420x98mm (LxWxH), 1pc each carton
16A 3.5KW Home EV Charging Station Portable Type 2 Four Gears Adjustable16A 3.5KW Home EV Charging Station Portable Type 2 Four Gears Adjustable16A 3.5KW Home EV Charging Station Portable Type 2 Four Gears Adjustable
Type Type 1 (J1772) Type 2 (IEC 62196)
Current 16Amp 32Amp 40Amp 50Amp 16Amp 32Amp
Charging Power 3.84kW 7.68kW 9.6W 12kW 3.84kW 7.68kW
Cable Length 20ft/6m 20ft/6m 20ft/6m 20ft/6m 20ft/6m 20ft/6m
Item Weight 3.5kg 3.5kg 4.0kg 4.5kg 3.5kg 3.5kg
Phase Single-phase Single-phase Single-phase Single-phase Single-phase Single-phase
