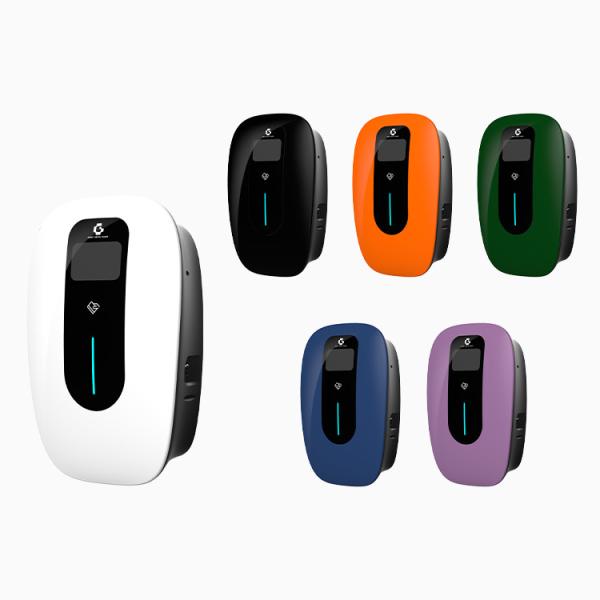

32A 16A Type 1 Charging Station AC Wallbox Ev Charging Pile OEM
32A 16A Type 1 Charging Station AC Wallbox Ev Charging Pile OEM
32A 16A Type 1 Charging Station AC Wallbox Ev Charging Pile OEM
32A 16A Type 1 Charging Station AC Wallbox Ev Charging Pile OEM
32A 16A Type 1 Charging Station AC Wallbox Ev Charging Pile OEM
32A 16A Type 1 Charging Station AC Wallbox Ev Charging Pile OEM
32A 16A Type 1 Charging Station AC Wallbox Ev Charging Pile OEM
32A 16A Type 1 Charging Station AC Wallbox Ev Charging Pile OEM
Specifications
Brand Name :
Hongshunjin
Model Number :
HSJ-GS7-A22
Certification :
CE,ROHS.FCC
Place of Origin :
Sichuan,China
MOQ :
1 pieces
Price :
USD 259-289/piece
Payment Terms :
T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability :
1000 Set/Sets per Week
Delivery Time :
3-30 work days
Packaging Details :
L175xW80xH55mm
Application :
Home EV Charging Pile
Output Power :
7Kw/11KW/22KW
Charging Standards :
type 1&type 2&Tesla
Protection :
OCP OVP OTP SCP
OCPP :
OCPP 1.6 Json (OCPP 2.0 Optional)
Waterproof :
IP66
Description

Type 2 Type 1 16A 32A Electric Wallbox Charger Car Station Ev Charge Wallbox

product details

Data
Model
HSJ-GS-H7
HSJ-GS-H11
HSJ-GS-H22
Input
Power Supply
1P+N+PE
3P+N+PE
3P+N+PE
Rated Voltage
230V AC
400V AC
400V AC
Rated Current
32A
16A
32A
Output
Output Voltage
230V AC
400V AC
400V AC
Output Current
32A
16A
32A
Rated Power
7KW
11KW
22KW
User Interface
Charging Port
Type 2
Cable Length
3.5M/4M/5M/10M
LED Indicator
Yellow/Green/Red
Start Mode
Plug&Play / RFID Card / APP
Emergency Stop
YES
Communication
WIFI
Optional
3G/4G/5G
Optional
OCPP
OCPP 1.6 Json (OCPP 2.0 Optional)
Package
Unit Size
340*285*147mm
Package Size
480*350*210mm
480*350*210mm
480*350*210mm
Net Weight
3.8KGS
4.5KGS
4.5KGS
Gross Weight
4KGS
5KGS
5KGS

Dynamic Load Balancing

For safely balance the energy usage between your electric car chargers and other home appliances to make your car chargers in the most efficient way.
Balance: DLB allows you to use your available power wherever you need it, for regular consumption during the day and for charging during the night.
Optimisation: The charge of the EV by automatically adapts to the maximum available power of the installation.
Speed: DLB technology allows the EV/PHEV to charge as fast as possible.
Safety: DLB technology protects the main fuse and ensures that your household appliances can access the electricity when needed.You won’t need to worry about safety or overloading your circuit board.
Economy: There is no need to invest in increased power supply for your home.
Please remember: The amount of power you get for charging depends on a few factors. The wall charger, charging lead and EV all limit the quantity of Amps available.

PEN Fault Detection

-An additional CT is installed in the PE conductor to detect any fault current-If the fault current reaches a predetermined
threshold, all conductors are switched off.
-The load and henceforth dangerous PE are become isolated from the supply.

32A 16A Type 1 Charging Station AC Wallbox Ev Charging Pile OEM

Packing & Delivery

Model Number
HSJ-GS-B7
HSJ-GS-B11
HSJ-GS-B22
Packing Information
1 Unit Per Box
Carton Box size: 48*35*21cm
N.W/G.W: 6.5KGS/7.5KGS
Accessries
EV Charging Plug,Dummy socket Holder,Manual
Shipping Way
UPS/FEDEX/DHL
By Air
By Sea / CR Express
Shipping Time
3-7 Days
5-10 days
5-60 days
Sample order
Fast Shipping high cost
Fast Shipping high cost
Mass Order
Fast Shipping high cost
Cheap Shipping Low cost
Model Number
HSJ-GS-B7
HSJ-GS-B11
HSJ-GS-B22
Packing Information
1 Unit Per Box
Carton Box size: 48*35*21cm
N.W/G.W: 6.5KGS/7.5KGS
Accessries
EV Charging Plug,Dummy socket Holder,Manual
Shipping Way
UPS/FEDEX/DHL
By Air
By Sea / CR Express
Shipping Time
3-7 Days
5-10 days
5-60 days
Sample order
Fast Shipping high cost
Fast Shipping high cost
Mass Order
Fast Shipping high cost
Cheap Shipping Low cost

WHY US?


1. First, Ours chargers Compatibility with most global Electric Vehicles charging interface. we has the CE, ROHS, REACH certificate for European Market. and we are the first company that got the UL Listed of EV charger in China! We also have KFW Listed for Germany market.
2. We has a series of EV chargers to meet different customer’s needs. such as for home use or for commercial.
3. We are the directly manufacturer, our main products are AC Wallbox, AC Integrated EV Charger, DC fast charging stations, EV connectors. There is no the middleman, you can get the best price and services. We has strong R&D Capability, OEM and ODM are available.
4. How to promise the quality? First, produce the chargers in strict accordance with quality management system standard (ISO9000). Second, in the production, we will age and test the EV CHARGER 3 times; Third, through the Digital Factory, production can be traced and visualized, so as to ensure the stability of products.
5. Our mission is: Create higher value for customers with innovative products and services. Come and be our customers!
