32A 7KW Home EV Charging Station 3 Phase OCPP Type 2 Type B
32A 7KW Home EV Charging Station 3 Phase OCPP Type 2 Type B
32A 7KW Home EV Charging Station 3 Phase OCPP Type 2 Type B
32A 7KW Home EV Charging Station 3 Phase OCPP Type 2 Type B
32A 7KW Home EV Charging Station 3 Phase OCPP Type 2 Type B
32A 7KW Home EV Charging Station 3 Phase OCPP Type 2 Type B
32A 7KW Home EV Charging Station 3 Phase OCPP Type 2 Type B
32A 7KW Home EV Charging Station 3 Phase OCPP Type 2 Type B
Specifications
Brand Name :
Hongshunjin
Model Number :
NK-GS7-AC-B01
Certification :
CE,ROHS.FCC
Place of Origin :
Sichuan,China
MOQ :
1 pieces
Price :
USD 229-282/PCS
Payment Terms :
T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability :
1000 Set/Sets per Week
Delivery Time :
3-30 work days
Packaging Details :
L175xW80xH55mm
Warranty :
1 Year
Input Voltage :
230V AC
Input Current: :
32 A
RCD :
30mA Type A+6mA DC
Start Method :
RFID Card/APP
OCPP :
OCPP 1.6 Json (OCPP 2.0 Optional)
Cable length: :
3.5M
Weight :
8KG
Description

32A 7KW Ev Charger Home Charging Station OCPP Type 2 3 Phase Type B

32A 7KW Home EV Charging Station 3 Phase OCPP Type 2 Type B

Function

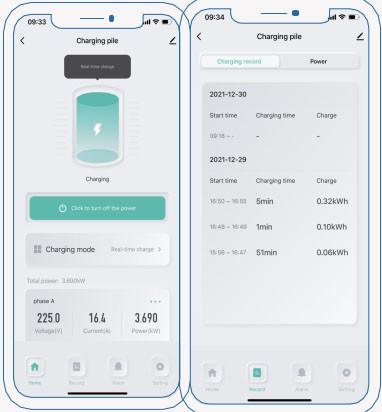

1. APP Control
* Setting Current: you can set the current when the power grid is overload.
* Controlling Stop & Start: Control the Stop & Start by your phone, you can control it in anywhere.
* Making an Appointment of Charging: If you want the electric vehicle to be charged in night, it is a good choice that you make an appointment of the charging by APP, it is very convenient.
* Record: you can check the charging record by APP in any time.
* The best Choice for home market
2. Load balance management:
* Restricting the total charging load protects the local grid
* Sharing the charging load cuts costs for the required electricity connection
* Choose an open type CT (current transformer) as the current sensor, It is no physical wiring between the devices, which has the advantage of open and close installation, convenient and fast wiring, no extra infrastructure or installation costs.
3. Specification
* Material: The front panel is tempered glass, which has the advantage of Anti- scratch and high-quality visual effects. The back cover is high quality plate metal with Special Integral molding, it is safe for indoor and outdoor applications.
* OEM or ODM Available: Logo, brand, design, size, color, function, etc, customization available;
* 3 inch highlight LCD display: Shows live charging current, voltage, power consumption, time
* Versatile Installation wall mount or pedestal applications

product details

Data
Model
GS7-AC-HO1
GS11-AC-HO1
GS22-AC-HO1
Input
Power Supply
1P+N+PE
3P+N+PE
3P+N+PE
Rated Voltage
230V AC
400V AC
400V AC
Rated Current
32A
16A
32A
Output
Output Voltage
230V AC
400V AC
400V AC
Output Current
32A
16A
32A
Rated Power
7KW
11KW
22KW
User Interface
Charging Port
Type 2
Cable Length
3.5M/4M/5M/10M
LED Indicator
Yellow/Green/Red
Start Mode
Plug&Play / RFID Card / APP
Emergency Stop
YES
Communication
WIFI
Optional
3G/4G/5G
Optional
OCPP
OCPP 1.6 Json (OCPP 2.0 Optional)
Package
Unit Size
340*285*147mm
Package Size
480*350*210mm
480*350*210mm
480*350*210mm
Net Weight
3.8KGS
4.5KGS
4.5KGS
Gross Weight
4KGS
5KGS
5KGS

32A 7KW Home EV Charging Station 3 Phase OCPP Type 2 Type B32A 7KW Home EV Charging Station 3 Phase OCPP Type 2 Type B32A 7KW Home EV Charging Station 3 Phase OCPP Type 2 Type B

HONGSHUNJIN Electric is a specialist in EV charging station installations around China in multiple different scenarios.

Our products possess the top-graded materials to withstand extreme conditions, namely being temperature-resistant, water-proof, and dust-proof, which comply with the IP55 and IP65 certification.

We can install wall or floor-mounted EV Chargers, which are applied in both indoor and outdoor settings, such as garages at home or villa, carports, on-street parking and driveways.

Those charging stations can interconnect with payment systems and back-office support through the OCPP platform for residential management and commercial use.

HONGSHUNJIN Electric incorporates solar PV systems or energy storage systems into our products. Meanwhile, all EV chargers are qualified with level II charging speed. Therefore, people can efficiently charge their electric vehicles by using solar energy.

Charge more quickly and with greater security with this handy charger!

32A 7KW Home EV Charging Station 3 Phase OCPP Type 2 Type B

Type Type 1 (J1772) Type 2 (IEC 62196)
Current 16Amp 32Amp 40Amp 50Amp 16Amp 32Amp
Charging Power 3.84kW 7.68kW 9.6W 12kW 3.84kW 7.68kW
Cable Length 20ft/6m 20ft/6m 20ft/6m 20ft/6m 20ft/6m 20ft/6m
Item Weight 3.5kg 3.5kg 4.0kg 4.5kg 3.5kg 3.5kg
Phase Single-phase Single-phase Single-phase Single-phase Single-phase Single-phase
