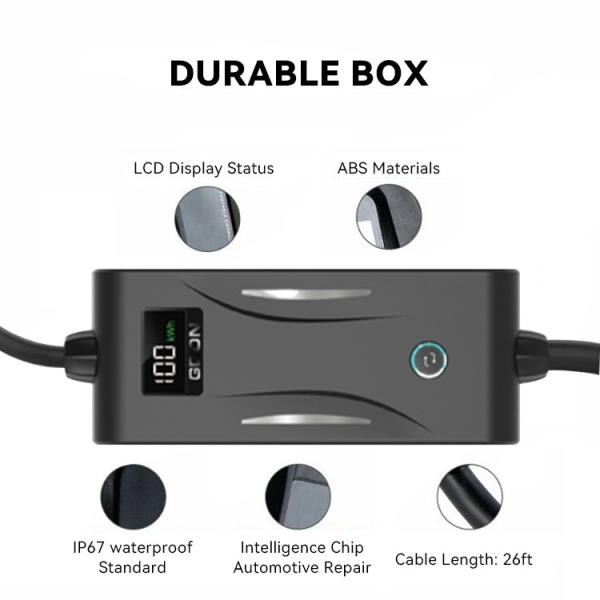

EU Standard 3.3kW Portable Electric Car Charger 6 To 16 Amp Type 2 Charger
EU Standard 3.3kW Portable Electric Car Charger 6 To 16 Amp Type 2 Charger
EU Standard 3.3kW Portable Electric Car Charger 6 To 16 Amp Type 2 Charger
EU Standard 3.3kW Portable Electric Car Charger 6 To 16 Amp Type 2 Charger
EU Standard 3.3kW Portable Electric Car Charger 6 To 16 Amp Type 2 Charger
EU Standard 3.3kW Portable Electric Car Charger 6 To 16 Amp Type 2 Charger
Specifications
Brand Name :
Hongshunjin
Model Number :
HSJ7-AC-P03
Certification :
CE,FCC.ROHS
Place of Origin :
Sichuan,China
MOQ :
1 pieces
Price :
USD 118-135/piece
Payment Terms :
T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability :
1000 Set/Sets per Week
Delivery Time :
3-30 work days
Packaging Details :
L235xW92xH53mm
Adjustable current :
6-16A
Protection :
OCP/OVP/SCP/OTP
Input Voltage :
230VAC±15%, 50/60Hz
Charging control pattern :
LED , Select button
Waterproof class :
IP67
Output :
16A / 3.5KW
Charging cable :
5m (customized length available)
Charging pattern :
Supper 4.3'' LCD/LED/Select button
Description

16A EU Standard Portable Electric Vehicle Charging Cable Adjustable 6-16 Amp 3.3kW Type 2

EU Standard 3.3kW Portable Electric Car Charger 6 To 16 Amp Type 2 Charger

EV Charger Model
CB16A (3.5KW Type 2 portable ev charger)
Version
Home Charger (please contact if need the commerical ev charger)
Electric Features
Input
230VAC±15% (Single Phase), 50/60Hz
Max Output Power
3.5kW(single phase)
Max Output Current
16A
Standard Cable length
5m / 16.4ft (6m, 7m, 8m or customized length available )
Operation Environment
Storage Temperature
-25℃ ~ +85℃
Operation Temperature
-20℃ ~ +65℃
Relative humidity
0-95% non-condensing
Maximum altitude
<2000m
Waterproof Class
IP67
Cooling Method
Natural Air Cooling
Mounting way
Portable / Wall mounted(optional)
Function & Accessories
RFID
No
LCD
2.7-inch color display
RCD
Type A / Type A+6mA
LED Indicator light
Yes
Intelligent Power Ajustment
6A-16A
Ethernet / WIFI / 4G
No
Certification
CE RoHS
Machanical Drawing
Measures (LxWxH)
L235xW92xH53mm
N.W./G.W.
3.0KG / 3.8KG
Master Carton Packing
420x420x98mm (LxWxH), 1pc each carton

Type Type 1 (J1772) Type 2 (IEC 62196)
Current 16Amp 32Amp 40Amp 50Amp 16Amp 32Amp
Charging Power 3.84kW 7.68kW 9.6W 12kW 3.84kW 7.68kW
Cable Length 20ft/6m 20ft/6m 20ft/6m 20ft/6m 20ft/6m 20ft/6m
Item Weight 3.5kg 3.5kg 4.0kg 4.5kg 3.5kg 3.5kg
Phase Single-phase Single-phase Single-phase Single-phase Single-phase Single-phase

Morec plug uses the whole mold technology,there is no screws on the plug,only one screw for connecting the wire at the bottom.There is no possibility of malicious removal,and avoid the situation of screw loose.
