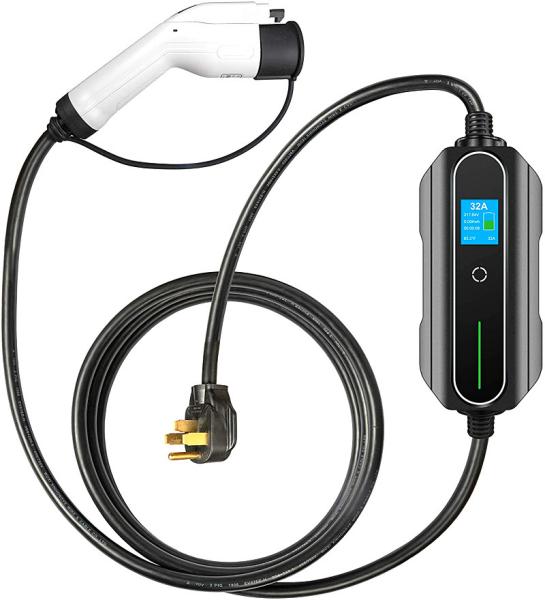

7kw Portable EV Charging Station Type 1 SAE J1772
7kw Portable EV Charging Station Type 1 SAE J1772
7kw Portable EV Charging Station Type 1 SAE J1772
7kw Portable EV Charging Station Type 1 SAE J1772
7kw Portable EV Charging Station Type 1 SAE J1772
7kw Portable EV Charging Station Type 1 SAE J1772
Specifications
Brand Name :
Hongshunjin
Model Number :
HSJ7-AC-P02
Certification :
CE,FCC.ROHS
Place of Origin :
Sichuan,China
MOQ :
1 pieces
Price :
USD 118-135/piece
Payment Terms :
T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability :
1000 Set/Sets per Week
Delivery Time :
3-30 work days
Packaging Details :
L260*W95*H52.3mm
Adjustable current :
10A-16A-20A-24A-32A
Protection :
OCP OVP OTP SCP
Input Voltage :
230VAC±15%, 50/60Hz
Charging control pattern :
LED , Select button
Waterproof class :
IP67
Gun type :
Type 1 SAE J1772
Description

7kw 32A Portable EV Charger Type 1 SAE J1772 Level 2 NEMA14-50

Adjustable Current: 10A-16A-20A-24A-32A

Power: 7kw

Rated supply voltage: 230VAC

Connector: Type 1 SEA J1772 with NEMA 14-50

Charging control pattern: LED , Select button

Waterproof Class: IP67

Box dimension: L260xW95xH52.3mm

Weight: 4kg

7kw Portable EV Charging Station Type 1 SAE J1772
EV Charger Model
CB32A (Type 2 7KW portable ev charger)
Version
Home Charger (please contact if need the commerical ev charger)
Electric Features
Input
230VAC±15% (Single Phase), 50/60Hz
Max Output Power
7.0kW(single phase)
Max Output Current
32A
Standard Cable length
5m / 16.4ft (6m, 7m, 8m or customized length available )
Operation Environment
Storage Temperature
-25℃ ~ +85℃
Operation Temperature
-20℃ ~ +65℃
Relative humidity
0-95% non-condensing
Maximum altitude
<2000m
Waterproof Class
IP66
Cooling Method
Natural Air Cooling
Mounting way
Portable / Wall mounted(optional)
Function & Accessories
RFID
No
LCD
2.7-inch color display
RCD
Type A / Type A+6mA
LED Indicator light
Yes
Intelligent Power Ajustment
8A-32A
Ethernet / WIFI / 4G
No
Certification
CE RoHS
Machanical Drawing
Measures (LxWxH)
L175xW80xH55mm
N.W./G.W.
3.0KG / 4.0KG
Master Carton Packing
420x420x98mm (LxWxH), 1pc each carton

7kw Portable EV Charging Station Type 1 SAE J17727kw Portable EV Charging Station Type 1 SAE J1772

Morec plug uses the whole mold technology,there is no screws on the plug,only one screw for connecting the wire at the bottom.There is no possibility of malicious removal,and avoid the situation of screw loose.

7kw Portable EV Charging Station Type 1 SAE J1772

7kw Portable EV Charging Station Type 1 SAE J1772
