IPX9 High Temperature And Pressure Water Jet Test System SN4412C-F

Specifications

Brand Name :

Sinuo

Model Number :

SN4412C-F

Certification :

Calibration Certificate (Cost Additional)

Place of Origin :

China

MOQ :

Price :

Customized

Payment Terms :

T/T

Supply Ability :

1 sets/month

Delivery Time :

30 days

Packaging Details :

Plywood box

Complied Standard :

IEC 60068 & IEC60529

Test Grade :

IPX9 class

User Maximum Sample :

1500× 1000× 500mm

Jet Water Temperature :

RT ~ 80℃ can be set

Jet Pressure :

8000～10000Kpa

Spray Flow :

14～16L/min

Distance to Sample :

175±25mm

Spray Time :

30S/m²

Description

IPX9 High Temperature And Pressure Water Jet Test System SN4412C-F

Complied Standards & Clauses for EV Charging Pile IPX9 High Temperature And Pressure Water Jet Test System

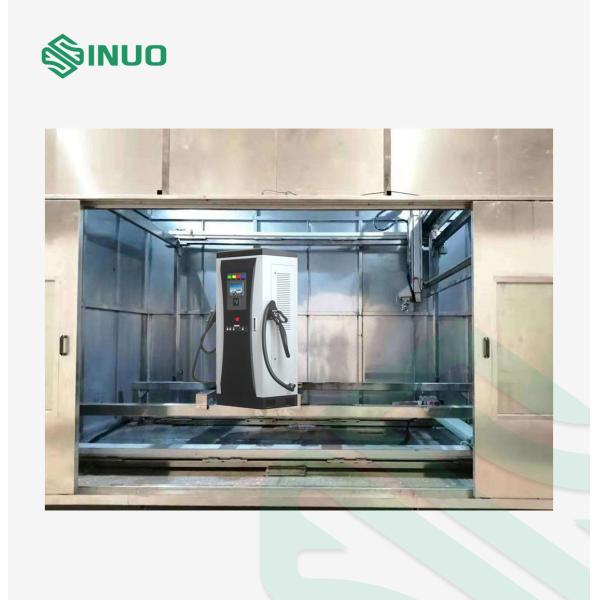

The IPX9 Open Rain Room SN4412C-F conforms to the standard requirements of IEC 60068: 2022, IEC60529:2020 etc.

Technical Parameter for EV Charging Pile IPX9 High Temperature And Pressure Water Jet Test System

The main technical parameters
Inner Frame Dimension	Depth 2000× width 2500× height 4000mm
Outer Frame Dimension	Approx. Depth 2500× Width 45,000 × height 4500mm (glass house, drainage tank and ground engineering users handle by user).
User Maximum Sample	Depth 1500× width 1000× height 500mm, sample weight: 650KG.
Spray System	It is composed of an Italian high pressure and high temperature water pump, high pressure and high temperature water pressure meter, high pressure and high temperature solenoid valve and high pressure and high temperature hydraulic pipe.
Jet Water Temperature	RT ~ 80℃ can be set (RT is the ambient temperature)
Injection Angle	The spray can cover the entire surface of the sample, and the spray Angle is perpendicular to the sample surface.

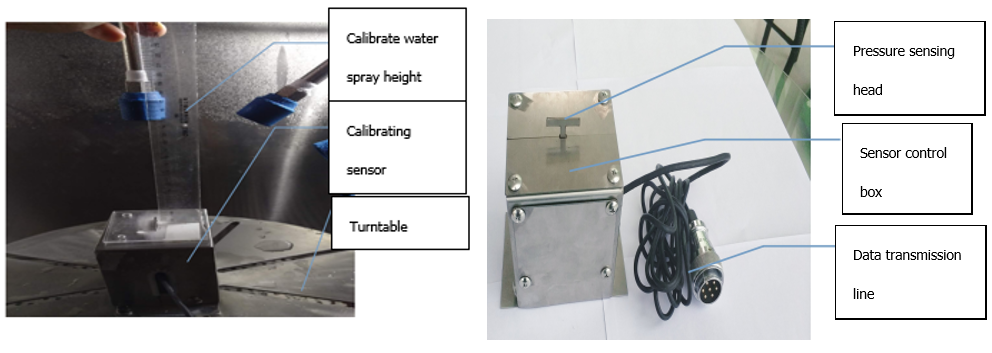

Jet Pressure	8000～10000Kpa
Spray Flow	14～16L/min
Distance from Nozzle to Sample	175±25mm
Spray time	30S/m2 (configurable)
Run Time Control	1s ~ 9999h59min59s(adjustable)
Receiver Surface	Top and sides of the product
Water Jet Pressure gauge	Water spray pressure can be displayed
Control System	The company independently developed touch screen control system
Heating Tank (incubator)	one
Sample Car Load	650kg
Number of Sprinkler Heads	2 PC, one installed on the top of the spray sample top surface; One is mounted on the sides of the jet sample around the plane;
Jet Trajectory	Based on the principle of running S-shaped trajectory, a four-way servo motor is used to design a robotic arm to spray water on five sides. The spraying time of 60S per M2 meter is the basic reference test time, and the completion time of the entire trajectory can be set, which can be set between 150-300S (5 m2). When setting, the size can be entered according to the overall dimensions of the product. The robot system automatically completes the test trajectory for orderly testing. After the test, the arm returned to the original point of the device sound and light prompt.
Sample Arrangement	① Use forklift to load and unload samples, forklift customers (suppliers to provide specifications), ② use truck to lift samples to move to the door of the equipment, and then ask the manual sample truck to push to the test space. After closing the door, the system prompts you to conduct a formal test.
Pure Water System	Provide 50L/H pure water equipment to provide water for heating, spray water recycling.
Power Source	AC380V three-phase five wire, 50Hz power: about 100KW (no load); Make a 120A air switch separately, the air switch should have wiring terminals, and the power line should be ≥50 square.
Water does not Circulate in the System	1) The water source cannot be recycled (because the water source is dirty after the battery test, it is recommended to discharge the used water to the sewage tank). 2) If the user considers water recycling, please make the return pool and clear pool in advance; 3) Pipeline users are prepared in advance; 4) Water tank size: depth 2000× width 1000× height 1000mm.
Structural material
Nozzle	304 stainless steel hydraulic pipe
Cistern	304 stainless steel
Electrical Control Accessories	International well-known brands such as Schneider and Omron are selected

Technical Advantage for EV Charging Pile IPX9 High Temperature And Pressure Water Jet Test System

Heating system

The heating wire used in high frequency is very important in this system, the improper material selection of the heating pipe, short service life, easy to produce funnel short circuit phenomenon, for the user with high requirements is extremely inconvenient and distressed, and seriously affect the production and inspection progress. To this end, the company has developed the latest new type of ceramic heating rack, ceramic material high temperature resistance, good insulation, will not produce leakage short circuit phenomenon, the middle through the German imported heating wire, thick wire diameter, high temperature resistance, dry burning resistance. The quartz glass tube is inserted in the middle of the heating wire, and its important function is to prevent the heating wire from burning red, soft and falling, and produce the heating wire and the inner box metal contact resulting in short circuit and other fault phenomena. This technology is the first in China.

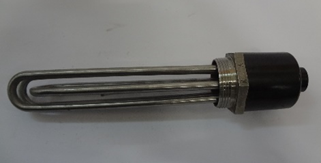

(Tank heating pipe)
