1000A EV Battery Testing Equipment UL2580 Cells External Short Circuit Testing Equipment
1000A EV Battery Testing Equipment UL2580 Cells External Short Circuit Testing Equipment
1000A EV Battery Testing Equipment UL2580 Cells External Short Circuit Testing Equipment
1000A EV Battery Testing Equipment UL2580 Cells External Short Circuit Testing Equipment
Specifications
Brand Name :
Sinuo
Model Number :
SN551
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
30 days
Price :
Customized
Supply Ability :
30 sets/month
Packaging Details :
Plywood Case
Applied Standard :
UL 2580, IEC 62133-2012, UN38.3, UL 2054
Maximum Short circuit Current :
1000A
Temperature Range :
0～80℃
Temperature Deviation :
≦±2.0℃
Remote Control Distance :
Without Solid barrier 7m
Electrical Endurance :
Resistance load 50000 times
Internal Resistance :
80±20mΩ
Mechanical Endurance :
300,000 times
Description

UL2580 Electric Vehicle Lithium-Ion Cells External Short Circuit Testing Equipment

Complied Standards & Clauses

UL2580 BATTERIES FOR SAFETY Batteries for Use In Electric Vehicles Annex B2.7 and D3.1

IEC 62133-2012clause 7.3.2

GB31241-2014clause 6.1, 6.2

UN38.3 ,UL 2054,QC/T 744-2006,QC/T 743-2006 and etc.

Equipment Overview

Test Principle: This battery external short circuit testing equipment is temperature controlled type, it meets the requirement that the short circuit device must conform to the range of internal resistance ≤5mΩ, to obtain the maximum short-circuit current required by the test, In addition, the circuit design of the short-circuit device must also be able to withstand the impact of large currents, so the industrial grade DC electromagnetic contactors, all-copper terminals, internal copper plate diversion and thick copper plate are adopted, to effectively improve the cooling effect, thus, the large current short circuit device is safer, and can effectively reduce the loss of test equipment and ensuring the accuracy of test data.

Structure: One machine structure, the door uses explosion-proof lock + explosion-proof chain

Use Environment: Power supply: AC220V±10%/50Hz 3KW
Environment temperature: 5℃～+35℃
Humidity:≦85%RH There should be no high concentration dust, corrosive gas and flammable and explosive atmosphere.

Technical Parameters

Control and Operation PLC touch screen intelligent control system with remote control device
Dimensions

Inner Dimension WDH=600×500×600mm,304 stainless steel(thickness 1.0mm)
Outer Dimension WDH=940×780×1620mm,A3 Cold-Rolled Steel with paint-baking treatment (gray-white color)
(thickness 1.0mm)
Observation Window WH=390×360,20mm Three-layer vacuum glass, easy for specimen observation
Temperature Range 0～80℃
Temperature Deviation ≦±2.0℃
Temperature fluctuation ±1.0℃
Maximum short circuit current 1000A
Internal Resistance System 80±20mΩ
Remote Control Distance Without Solid barrier 7m
Mechanical Endurance 300,000 times
Electrical Endurance Resistance load 50000 times

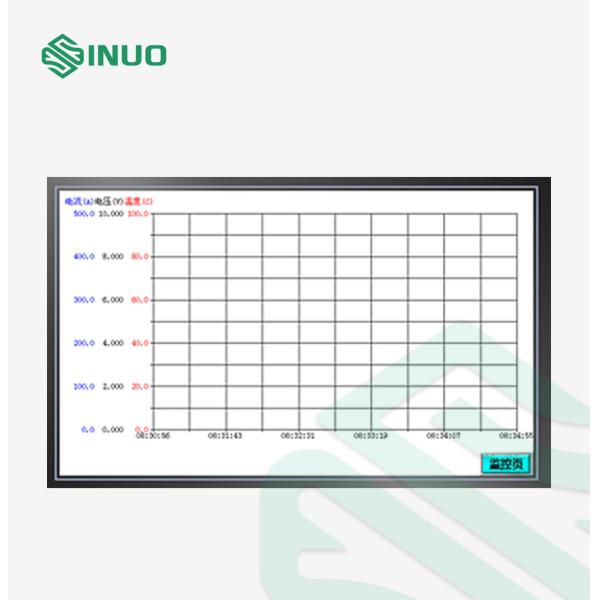

Data output The current voltage temperature can display records with interfaces, and test data can be directly deflated with U disk cross.
Safety Protection System Explosion-proof relief device, exhaustive device, fire extinguishing system, electronic door lock system, safe stop switch
Purchase Piece Temperature capture, voltage collection system, video surveillance system

Equipment Overview

Q: What temperature can this device reach?
A: The equipment can reach 0～80℃.
Q: What is the Maximum short circuit current for this device?
A: It is 1000A.
