Specifications
Brand Name :
Sinuo
Model Number :
SN4411-2
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
30 days
Supply Ability :
30 sets/month
Packaging Details :
Plywood Case
Price :
Customized
Applied Standard :
IEC 60529
IP Code :
IPX8
Water Tank Size :
Ф600×1200mm
Water Depth Simulation :
0-50 m
Air Pressure :
0-0.5MPa
Valve Pressure :
0.55MPa
Control Method :
PLC and touch screen
Test Duration :
0-9999 min
Description

IEC 60529 IPX8 Continuous Immersion Water Ingress Testing Equipment

Complied Standards & Clauses

IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX8

Equipment Overview

Samples and Restrictions: Electrical and electronic products, automobiles, motorcycle parts, communication products, household appliances, outdoor lighting and signal devices, etc

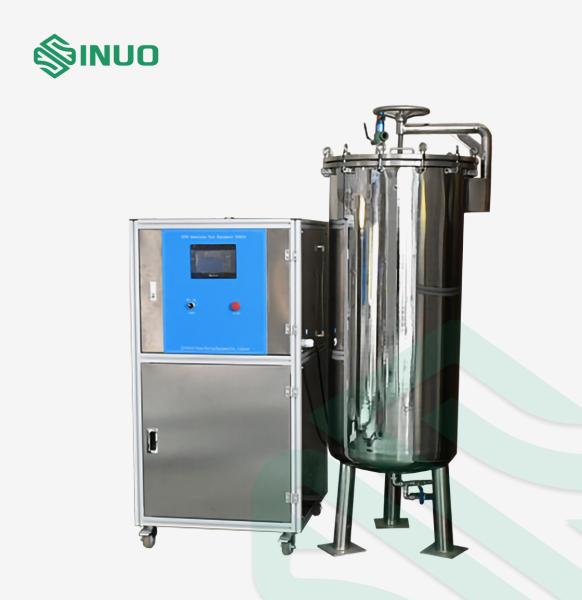

Structure: The test chamber is made of stainless steel, and the cover is automatically lifted by a cylinder. It is easy for operation, with functions of safety valve protection and automatic pressure relief.

Application: To verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under continuous immersion in water at degree IPX8.

Principle: By controlling the depth of the sample in the water to achieve a standard equivalent pressure, and simulating water depth pressure by applying a certain pressure of air pressure, to produce water pressure across the entire surface of the specimen enclosure. The water depth range simulation of IPX8 is harsher than IPX7.

Use Environment:

Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting, the ground needs to be flat, and the water intake and drainage function should be good.

Water source: clean water or tap water without impurities, equipped with water cleaning filter.

Technical Parameters

Control & Operation PLC and touch screen
Water Tank Size

Inner size: Ф600×1200mm,

outer size: WDH=800×980mm×1850mm
Water Depth Simulation 0-50 m
Air Pressure Corresponding Adjustment Range 0-0.5MPa, can be automatically adjusted by pressure sensor, accuracy: 0.001MPa
Safety Valve Discharge Pressure 0.55MPa
Test Duration 0-9999 min
Safety Protection Leakage protection, short circuit protection, safety valve overpressure protection
