Specifications
Brand Name :
Sinuo
Model Number :
SN448-E1
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
1 sets/month
Delivery Time :
45 days
Packaging Details :
Other
Water spray flow :
12.5±0.625(L/min)
Water spray pressure :
30～100kpa
Turntable diameter :
4000 mm
Nozzle diameter :
φ6.3 mm
Turntable load :
1T
Turntable speed :
1～5 R/min
Water tank size :
1000×3000×1000mm（W*D*H)
Water tank material :
SUS304 stainless steel
Description


ISO20653 Outdoor ESS System IPX5 Waterproof Spray Test System

Complied Standards & Clauses

Conforms to IEC 60529:2013, ISO20653:2006, IEC60068-2-18:2000, etc.

Equipment Overview

This product is designed for testing electrical products to assess whether the enclosures and seals can maintain the equipment and components' performance in rain environments. The product adopts a scientific design, enabling it to realistically simulate various environmental conditions such as drip, rainfall, splash, and water spray. With an advanced control system and the application of variable frequency technology, the rotation angle of the rainfall specimen rack, the swing angle of the spray arm, and the spray volume frequency can all be automatically adjusted.


Technical Parameters

IPX5 parameters
Number of spray nozzles Six IPX5 nozzles.
Inner diameter of spray hole

φ6.3 mm(IPX5)

ISO20653 Outdoor ESS System IPX5 Waterproof Spray Test System

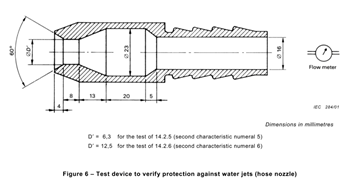

IPX5 spray nozzle ISO20653 Outdoor ESS System IPX5 Waterproof Spray Test System
Water spray flow 12.5±0.625(L/min)(IPX5)
Spray distance The sample is 2.5 to 3 meters away from the nozzle, and the distance is controlled by the tester.
Pipe diameter One piece of 1/2-inch soft pressure pipe and one piece of 1-inch soft pressure pipe.
Nozzle connection hose Imported transparent hose with stainless steel wire
IPX5 nozzle bracket Nozzle height and angle can be adjusted manually
Water spray test time At least 3 minutes or more (adjustable)
Water spray pressure 30～100kpa (adjust according to required flow rate)
Automatic spray system

1. The spray rack is made of formed aluminum profiles, with a set of IPX5 up and down swinging nozzles, which are independently controlled.

2.The movable IPX5 spray nozzle system includes a total of 6 pcs of spray nozzles. One of the IPX5 spray nozzles is positioned at the top for testing the top of the energy storage cabinet. The remaining 5 pcs of IPX5 spray nozzles are located in the middle of the system, each capable of vertical (up and down) swinging with a swing angle of ±15°.

3.There are 6 pcs nozzles in total, each equipped with a mechanical flow meter, with individual flow meters controlling the flow for each nozzle.

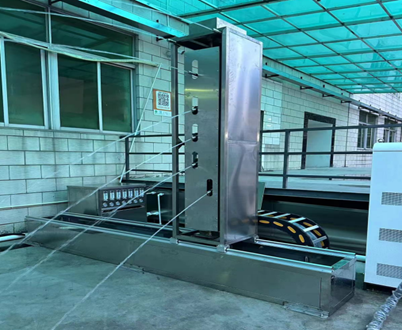

ISO20653 Outdoor ESS System IPX5 Waterproof Spray Test System

(The picture for reference only)
Turntable system
Turntable diameter 4000 mm
Turntable load 1T
Turntable speed 1～5 R/min (adjustable)
Water tank parameters
Water tank size 1000×3000×1000mm(W*D*H)
Water tank material SUS304 stainless steel
Water level Transparent hose, with stainless steel ruler to observe water level, ruler height 1.5m, ruler accuracy: 1mm
Water tank level control Stainless steel float, overflow hole
Mobility Four pcs swivel casters for easy movement, with brakes.
Water tank cover 1 pcs

Details

ISO20653 Outdoor ESS System IPX5 Waterproof Spray Test SystemISO20653 Outdoor ESS System IPX5 Waterproof Spray Test System
