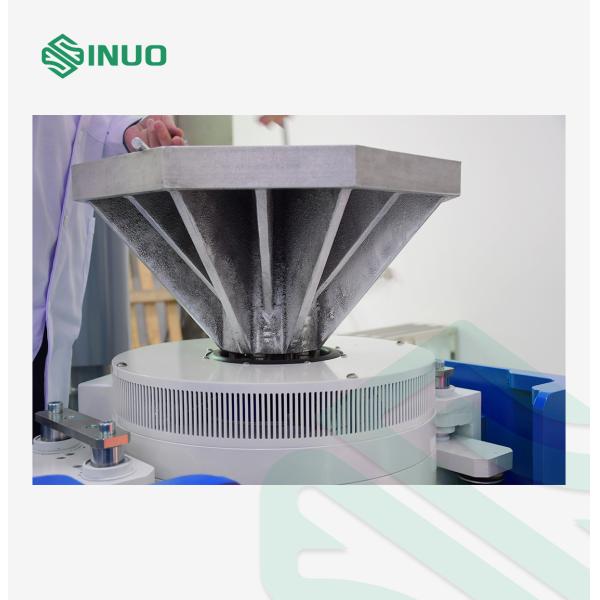

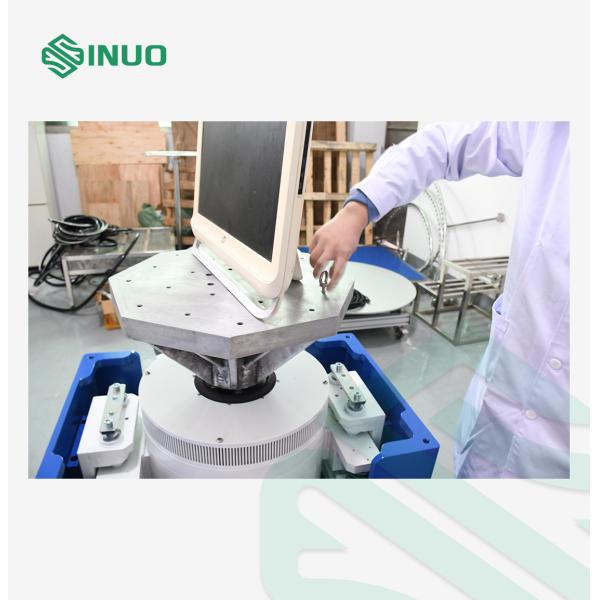

Vertical Sine Vibration Test System EV Battery Testing Equipment
Vertical Sine Vibration Test System EV Battery Testing Equipment
Vertical Sine Vibration Test System EV Battery Testing Equipment
Vertical Sine Vibration Test System EV Battery Testing Equipment
Vertical Sine Vibration Test System EV Battery Testing Equipment
Vertical Sine Vibration Test System EV Battery Testing Equipment
Vertical Sine Vibration Test System EV Battery Testing Equipment
Vertical Sine Vibration Test System EV Battery Testing Equipment
Specifications
Brand Name :
Sinuo
Model Number :
SN553-EV101VT20SM.VCS-2
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
1 sets/month
Delivery Time :
45 days
Packaging Details :
Other
Test type :
Sine sweep; random;
Frequency range :
1～6000Hz
Maximum displacement :
25mm
Maximum speed :
1.3m/s
Maximum load :
50 kg
Dynamic weight :
1.5 kg
Moving coil diameter :
Ф120 mm
Allowable eccentric moment :
220.N.M
Description

Vertical Sine Vibration Test System EV Battery Testing Equipment

Complied Standards & Clauses

Sinuo can provide you with the entire excitation and testing solution, and certify the quality of your products according to national and international standards such as GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM.

Equipment Overview

Vibration testing is to stimulate or impact a component or device to see how it will react in a real environment. The application range of vibration testing is extremely wide, from industrial products such as circuit boards, aircraft, ships, rockets, missiles, automobiles and household appliances.

Technical Parameters

Vibration generator A01S12
Rated sinusoidal thrust (Pk) 100Kg.f peak (1000N)
Rated random thrust (RMS) 100Kg.f r.ms (1000N) @ISO5344
Impact thrust (Pk) 200Kg.f peak (2KN) @6ms
Frequency range 1～6000Hz
Maximum displacement (p-p) 25mm (1inch)
Maximum speed 1.3m/s
Maximum acceleration Sine:60g (588 m/s2) ；Random:60g(588m/s2)
Maximum load 50 kg
Moving coil diameter Ф120 mm
Dynamic weight 1.5 kg
Allowable eccentric moment 220.N.M
Fundamental Resonance Frequency (Bare table) 4700Hz (nom.) +/- 5%
Moving coil mounting screw hole Stainless Steel Inserts of M6 . (7PCS)
Vibration machine body size 370L×460D×500H mm
Weight 140Kg
Power amplifier PA103EF
Rated output power 1KVA
Signal-to-Noise Ratio Greater than 70 dB
Amplifier efficiency Greater than 90%
Amplifier weight 15Kg
Amplifier size 430L×308D×117H mm
Protection function

●Input Over/Under Voltage ●Logic Fault ●Output Over

Voltage/Current ●Control Power ●External ●Module O/T ● Shaker Temp ●Shaker Travel
Electrical requirements:
Power supply 3-phase 380V/50Hz, 15KVA
Ground resistance ≤4Ω
Details

Vertical Sine Vibration Test System EV Battery Testing EquipmentVertical Sine Vibration Test System EV Battery Testing Equipment
