EVSE IK Impact Test High Energy Pendulum Hammer Impact Test Apparatus
EVSE IK Impact Test High Energy Pendulum Hammer Impact Test Apparatus
EVSE IK Impact Test High Energy Pendulum Hammer Impact Test Apparatus
EVSE IK Impact Test High Energy Pendulum Hammer Impact Test Apparatus
EVSE IK Impact Test High Energy Pendulum Hammer Impact Test Apparatus
EVSE IK Impact Test High Energy Pendulum Hammer Impact Test Apparatus
EVSE IK Impact Test High Energy Pendulum Hammer Impact Test Apparatus
EVSE IK Impact Test High Energy Pendulum Hammer Impact Test Apparatus
Specifications
Brand Name :
Sinuo
Model Number :
SN2212C
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
1 sets/month
Delivery Time :
45 days
Packaging Details :
Other
Striking Elements :
1J, 2J, 5J, 10J, 20J
Equivalent Mass :
0.2/0.25kg 1.7kg ,500g,5 kg,5 kg
Pendulum tube length :
1000mm
Pendulum tube diameter :
15.9 mm
Pendulum tube thickness :
1.5 mm
Height of Fall :
0-500mm
Impact stroke :
200-800mm
Base plate :
Thicken load-bearing steel base plate
Description

EVSE IK Impact test High Energy Pendulum Hammer Impact Test Apparatus

Equipment Overview

This test apparatus is used for the impact resistance test of household and similar electronic and electrical products and their accessories such as plugs and sockets and wall mounted mounting boxes, screw glands, covers, switches, lamps, etc., to assess the safety performance and strength level of the products.

It conforms to standards:

IEC60068-2-75:2014 “Environment testing for electric and electronic products Part2: Test methods -Test Eh: Hammer tests IDT”

IEC60884-1:2013 “Plugs and socket-outlets for household and similar purposes- Part1: General requirements” clause 24.1 and figure22-26

IEC60669-1:2017 “Switches for household and similar fixed-electrical installations - Part1: General requirements” clause 20.1

IEC62262:2002 “Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code)”

Technical Parameters

Technical Parameters
Striking Elements (Energy/J) 1J (IK01 to IK06), 2J (IK07), 5J (IK08),10J(IK09), 20J(IK10)

Equivalent Mass

kg

0.2/0.25kg

1.7kg ,500g,5 kg,5 kg are for 2J,5J, 10J,20J

Sharp edged hammer

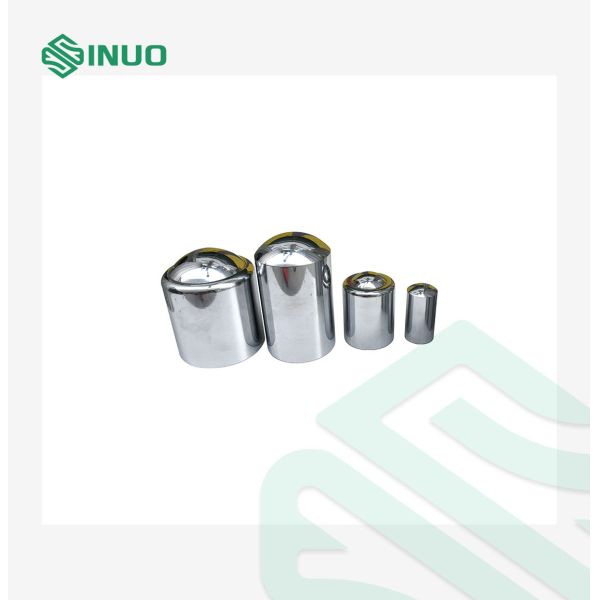

Striking Elements Material

1J hammer: steel with polyamide tip

2J,5J, 10J,20J hammers: steel

Sharp edged hammer, steel
Pendulum Tube Length 1000㎜,outer diameter 15.9 mm, wall thickness 1.5 mm steel pipe
Impact Point Can be electrically adjustable up and down, stroke: 200-800mm
Height of Fall

0-500mm, scale display

The height can be adjusted by handwheel
Lifting Manually lifting by rotate the handle wheel
Impact element release method Manually release by pulling out the latch
Base plate Thicken load-bearing steel base plate
Way of moving With casters, it can be moved to the position of the impact point of the sample
Anti-secondary impact function Yes, automatic electric brake to prevent secondary impact
Details

EVSE IK Impact Test High Energy Pendulum Hammer Impact Test ApparatusEVSE IK Impact Test High Energy Pendulum Hammer Impact Test Apparatus
