Water Cooling Walk-in Constant Temperature and Humidity Test Chamber 18m³
Water Cooling Walk-in Constant Temperature and Humidity Test Chamber 18m³
Water Cooling Walk-in Constant Temperature and Humidity Test Chamber 18m³
Water Cooling Walk-in Constant Temperature and Humidity Test Chamber 18m³
Water Cooling Walk-in Constant Temperature and Humidity Test Chamber 18m³
Water Cooling Walk-in Constant Temperature and Humidity Test Chamber 18m³
Water Cooling Walk-in Constant Temperature and Humidity Test Chamber 18m³
Water Cooling Walk-in Constant Temperature and Humidity Test Chamber 18m³
Water Cooling Walk-in Constant Temperature and Humidity Test Chamber 18m³
Water Cooling Walk-in Constant Temperature and Humidity Test Chamber 18m³
Specifications
Brand Name :
Sinuo
Model Number :
SN886-18F
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
30 sets/month
Delivery Time :
20 days
Packaging Details :
Plywood Case
Inner box size :
W3000 mm*H2000 mm*D3000mm
Outer box size :
W3800 mm*H2530 mm*D3690 mm
Effective volume :
18m³
Temperature range :
0°～ +100℃
Cooling method :
Water cooling
Humidity range :
20%-98%RH
Temperature fluctuation :
±0.5℃
Temperature deviation :
±2.0℃
Description

Water Cooling Walk-in Constant Temperature and Humidity Test Chamber 18m³

Complied Standards & Clauses

Conforms to:

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”

Equipment Overview

The walk-in constant temperature and humidity test room is suitable for safety performance testing of electronic components, providing reliability testing, product screening testing, etc. At the same time, through this test, the reliability of the product is improved and the quality control of the product is carried out. The walk-in constant temperature and humidity laboratory is an essential test equipment in the fields of aviation, automobiles, home appliances, scientific research, etc. It assesses and determines the parameters and performance of electrical, electronic, semiconductor, communication, optoelectronics, electrical appliances, automotive electrical appliances, materials and other products after the temperature environment changes rapidly during high and low temperature and humidity tests, and the adaptability of use. It is suitable for schools, factories, military industry, research and development and other units.

Technical Parameters

Volume and size
Effective volume 18m³
Inner box size W3000 mm*H2000 mm*D3000mm
Outer box size About W3800 mm*H2530 mm*D3690 mm(Excluding unit size)
Performance
Cooling method Water cooling
Temperature range 0°～ +100℃
Humidity range 20%-98%RH
Heating rate 0°～ +100℃ About 2～3℃/min (no load, average)
Cooling rate +100℃~0℃ About 0.7～1℃/min (no load, average)
Analysis accuracy 0.01℃
Temperature fluctuation ±0.5℃
Temperature deviation ±2.0℃
Humidity deviation ≤±5.0%RH below 75%RH, ≤+2/-3%RH above 75%RH
Humidity fluctuation ≤±2.0%R.H

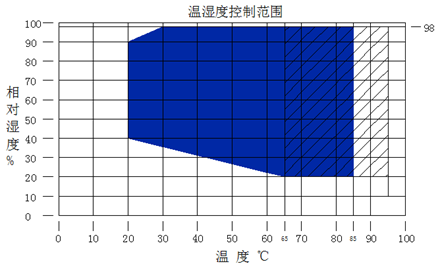

Temperature and humidity control capability range diagram Water Cooling Walk-in Constant Temperature and Humidity Test Chamber 18m³
Power supply AC3￠5W 380V 50Hz (R, STN three-phase five-wire plus ground wire) (voltage fluctuation ≤±10%)
Details

Water Cooling Walk-in Constant Temperature and Humidity Test Chamber 18m³Water Cooling Walk-in Constant Temperature and Humidity Test Chamber 18m³
