Specifications
Brand Name :
Sinuo
Model Number :
SN441-1000L
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Metal mesh wire :
50um
Dust concentration :
2kg/m³
Dust blowing method :
Top-down
Talc dosage :
2～5kgm³
Fine dust :
Below 75um
Coarse dust :
Below 150um
Outer chamber size :
1250*1450*2200 mm (W*D*H)
Inner chamber size :
1000*1000*1000mm(W*D*H)
Description

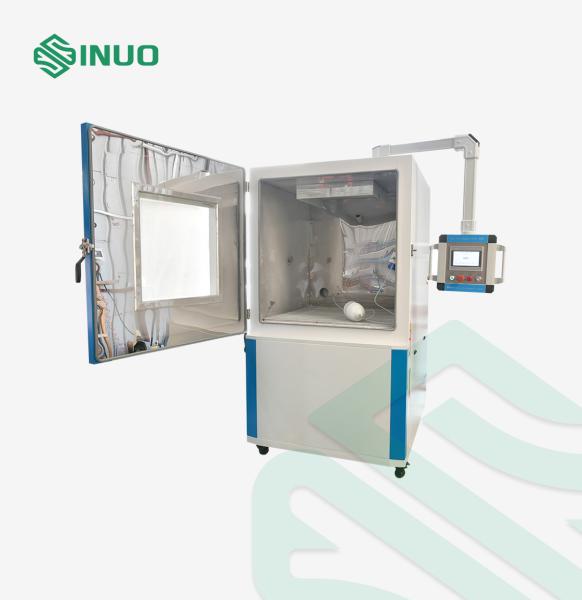

EN 364 Sand and Dust Test Chamber 1000L for Testing Electronic Products

Complied Standards & Clauses

Conforms to EN 364, IEC60068-2-68-La2, ISO20653-La2, IEC60529, etc.

Product Overview

This equipment is suitable for testing electrical and electronic products, automobile and motorcycle parts, and seals to prevent sand and dust from entering the seals and shells in a sand-and-dust environment. It is used to test the performance of electronic and electrical products, automobile and motorcycle parts, and seals in the use, storage, and transportation of sand and dust environments. The purpose of the test is to determine the possible harmful effects of particles carried by airflow on electrical products. The test can be used to simulate open sand and dust air environment conditions induced by natural environment or artificial disturbances such as vehicle movement.

Technical Parameters

Inner chamber size 1000*1000*1000mm(W*D*H)
Outer chamber size About 1250*1450*2200 mm (W*D*H)
Dust baking temperature range RT+10℃～60℃
Fine dust Below 75um
Coarse dust Below 150um
Air flow rate No more than 2m/s
Dust concentration 2kg/m³
Talc dosage 2～5kgm³
Dust blowing method Top-down
Air flow meter 1-20L/M
Negative pressure differential range -10～0kPa adjustable, air pressure can be freely set at -2kPa, -5kPa, -10kPa
Metal mesh wire diameter 50um
Nominal spacing between lines 75um or below 150um
Shock time 1s～99h (adjustable)
Test time timing 1s～99h (adjustable)
Dust-blowing control cycle 1s～99h (adjustable)
Vacuum time 1s～99h (adjustable)
Test method

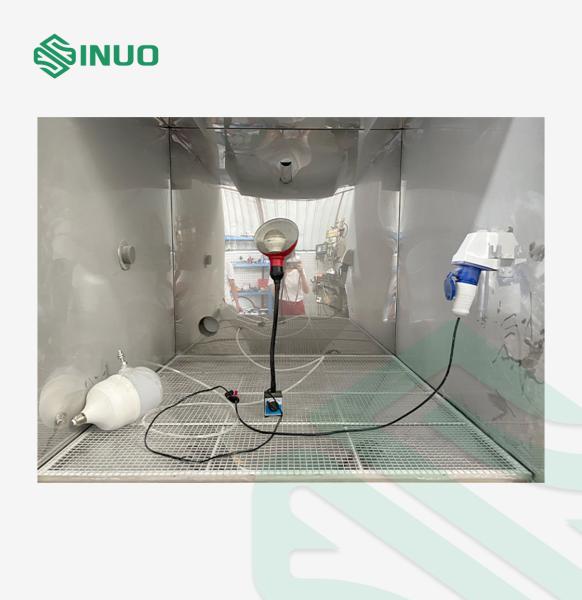

EN 364 Sand And Dust Test Chamber 1000L For Testing Electronic Products
Controller control function (1) Dust blowing time (stop, blow) h/m/s adjustable; (2) Cycle period adjustable; (3) Preset test time: 0s~999h99m99s adjustable; (4) Power-on mode: off-on-off
Circulation fan Closed alloy low-noise motor. Multi-blade centrifugal fan

Details

EN 364 Sand And Dust Test Chamber 1000L For Testing Electronic ProductsEN 364 Sand And Dust Test Chamber 1000L For Testing Electronic Products
