Specifications
Brand Name :
Sinuo
Model Number :
SN4417
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Dripping aperture :
￠0.4mm
Hole distance :
20mm
Water dripping height :
200mm
Needle hole :
Φ0.4mm
Tank material :
Stainless steel
Body material :
Industrial aluminum alloy
Rain area :
1000mmX1000mm
Dimensions :
1100X1200X2800mm
Description


Integrated IPX1~6 Waterproof Degree Test System for Waterproof Performance Test


Complied Standards & Clauses


Conforms to IEC 60529:2013, etc.

Product Overview

This test device is used to verify protection against vertically falling water drops. It is designed and manufactured in accordance with the standard requirement of IEC60529 IPX1 and IPX2.

1. The rise and fall of the drip box is controlled by the motor.

2. Stainless steel fine filter for dirt filtration.

3. Adopts compressed air to blow the needle water, to prevent water-reactive substances and atmospheric blocking needle.

4. Stainless steel general medical needle nozzle, easy to buy, not easy to rust.

5. The needle nozzle and needle nozzle seat using a taper connection, can be easily replaced without the tool, individual damage to the needle nozzle can be easily replaced quickly.


Technical Parameters

No. Name IP Code Remark
1.

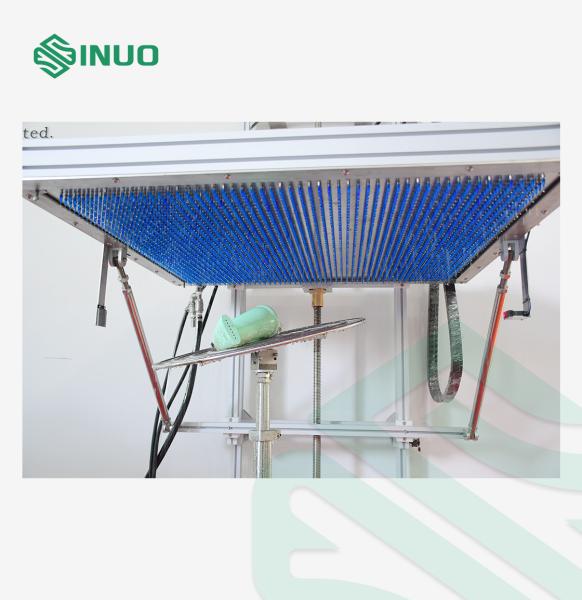

Vertical Rain Drip Test Apparatus

 IPX1~2

Drip area: 1000mm*1000mm

Controlled by Control Cabinet on IPX7

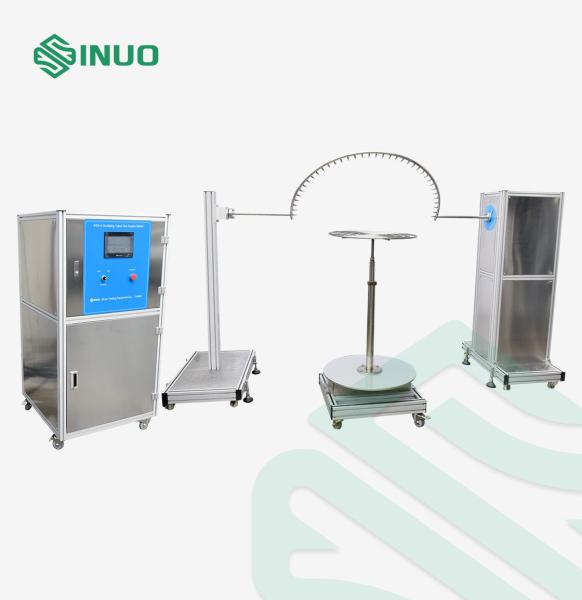

2 Oscillating Tubes Test Apparatus IPX3~4

Oscillating Tubes: R200mm, R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm

Controlled by Control Cabinet on IPX7
3 Spray Nozzle IPX3~4 Controlled by Control Cabinet on IPX7
4 Hose Nozzle IPX5~6 Controlled by Control Cabinet on IPX7
5 Integrated Immersion Chamber & Water Supply Tank & Control Cabinet

Inner chamber size:

650mm*600mm*1500mm

Controlled by Control Cabinet
6 Turntable & Nozzle Support Accessory for IPX1~IPX6

Turntable diameter:φ600mm,controlled by Control Cabinet

Nozzle support: for fixing the IPX3~6 spray nozzle and hose nozzle

Application Applies to conduct IPX1, IPX2 testing.
Rain area 1000mmX1000mm
Tank material Stainless steel
Dripping aperture ￠0.4mm
Hole distance 20mm
Rainfall Flow 1mm/Min, 3mm/Min, user-set parameters (error: + 0.5mm / min).
Water dripping height 200mm (automatically control by the test equipment)
Test time 10Min, can be set according to the need
Draining Automatically emptying the tank water after the test is completed
Body material Industrial aluminum alloy
Dimensions (LxDxH) 1100X1200X2800mm
Machine structure Wall Mount
Air compressor Silent air compressor

Details

Integrated IPX1~6 Waterproof Degree Test System For Waterproof Performance TestIntegrated IPX1~6 Waterproof Degree Test System For Waterproof Performance TestIntegrated IPX1~6 Waterproof Degree Test System For Waterproof Performance Test
