Specifications
Brand Name :
Sinuo
Model Number :
SN2217A
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Temperature fluctuation range :
±1℃
Input voltage :
AC380V,12KW
Inner box material :
Stainless steel 304
Effective volume :
DWH=900×1100×600mm
Heating control method :
Non-contact solid state relay
Temperature measuring thermocouple :
Adopt waterproof high-precision PT100
Cycle mode :
Built-in high temperature pump circulation method
Test hole :
Two test holes each with a diameter of 60mm and 100mm.
Description

UL2594-2016 12KW AC380V Constant Temperature Water Bath Chamber

Complied Standards & Clauses

Conforms to UL2594-2016.

Product Overview

Samples and restrictions: Elevator cable center core.

Application: The constant temperature water bath chamber is equipment designed for testing the electrical performance of PVC plastic cables. An instrument suitable for testing AC withstands voltage, insulation resistance, water immersion capacitance increase rate, etc. on wires and cables.

It can be used in situations where the insulation resistance coefficient of 70°C or 90°C is specified in IEC502-83 "Measurement of Extruded Solid Dielectric Insulated Power Cables with Rated Voltage 1-30KV" or "National Standard for Plastic Cables".

This machine adopts a stainless steel inner tank, has a large container volume, is easy to operate and has good temperature stability. It is a plastic cable insulation testing equipment.

Technical Parameters

Constant temperature range

If the room temperature is lower than 10℃, 10-100℃

If the room temperature is higher than 10℃, the room temperature is -100℃
Temperature fluctuation range ±1℃
Input voltage AC380V,12KW
Heating control method Non-contact solid-state relay
Temperature measuring thermocouple Adopt waterproof high-precision PT100
Cycle mode Built-in high-temperature pump circulation method
Effective volume DWH=900×1100×600mm. Inner box materials stainless steel 304

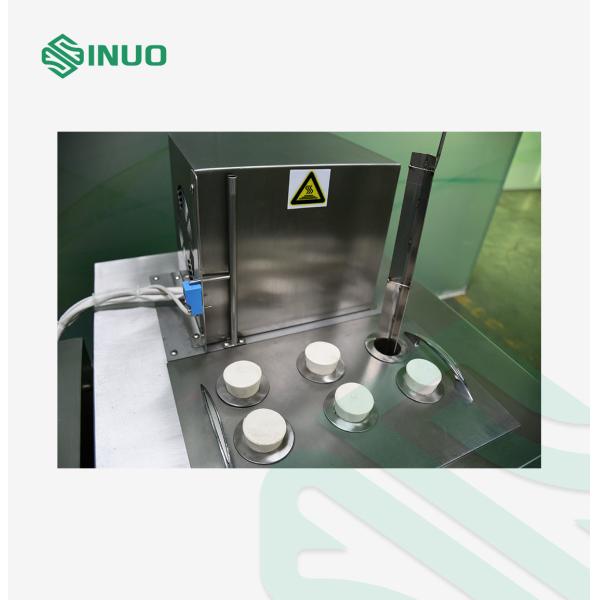

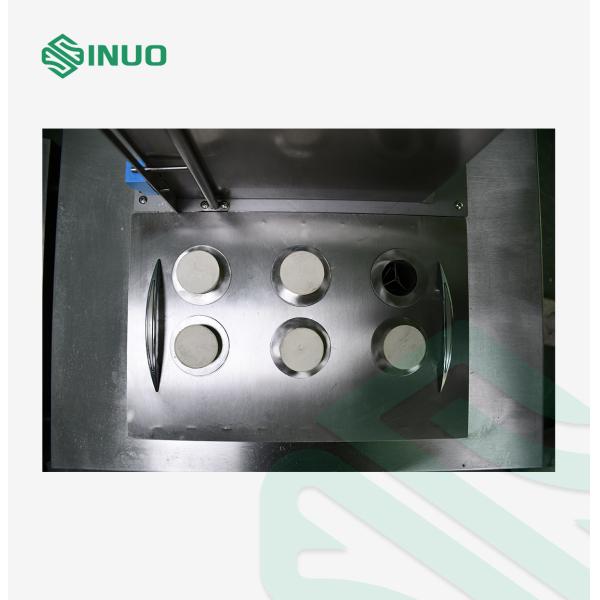

Test hole There are two test holes each with a diameter of 60mm and 100mm.
