IEC60309-1 Charging Interface Cable Tension and Torque Test Equipment

Complied Standards & Clauses

Conforms to IEC 62196-1:2022, IEC60309-1:2012.

Product Overview

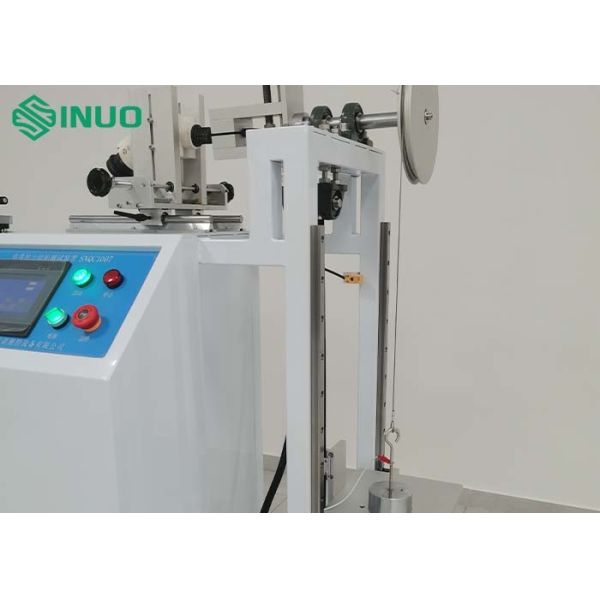

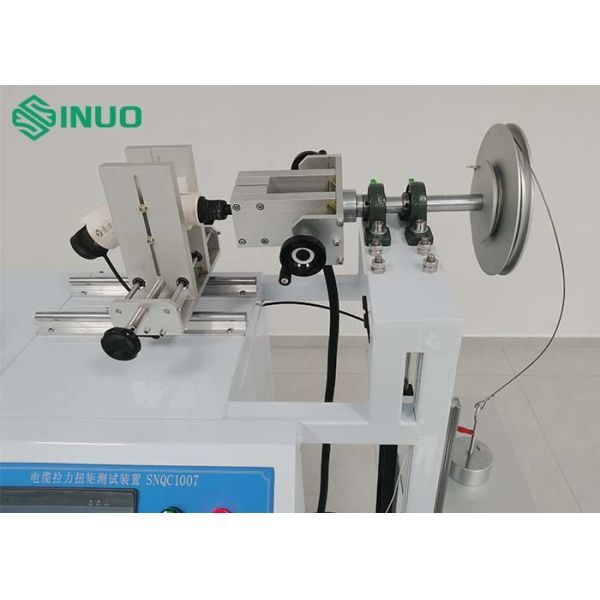

The pulling force is realized by using a motor-driven eccentric mechanism or screw mechanism, and the motor speed is adjustable to ensure that the time of each pulling force is accurate; the torque is realized by using a cylinder/motor, a tray, a weight and a time relay.Used to test the ability of charging vehicle plug and socket connection cable accessories to withstand specified tensile forces and moments. Weights are used to apply tension, and the weights and torque arms achieve torque. Use PLC to control the number of times of tension applied and the torque test time. The equipment will automatically stop when the number of tests or the test time is reached. After the test, the maximum allowable displacement of the flexible cable of the charging gun connector shall not exceed the standard required value.

Technical Parameters

Dimensions About W1600*D600*H1450mm
Weight About 180kg
Test items Tensile and torque tests on supply plug and/or vehicle plug cables

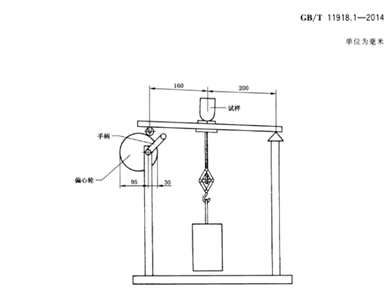

Equipment structure schematic diagram

Refer to Figure 1 schematic diagra

IEC60309-1 Charging Interface Cable Tension And Torque Test Equipment

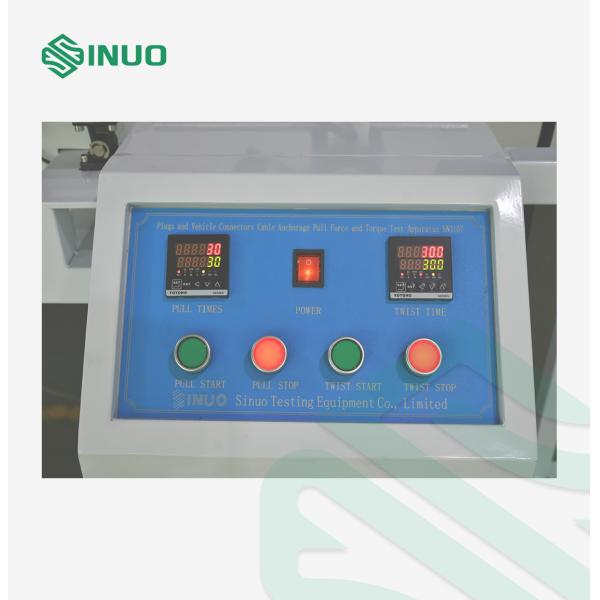

Control operation mode PLC automatic control, touch screen operation
Drive mode Electric
Apply tension Meet the specifications of 160N, 200N, 240N, 250N and 500N.
Apply torque One each meets the specifications of 0.6N·m, 0.7N·m, 1.2N·m, 1.5N·m, 2.3N·m, and 11.0N·m
Torque wheel 100mm(Ф200mm) ±0.5mm
Tension frequency 1 time/s, detect the actual tension time through electrical signal
Number of pulls 1-999999 times, can be preset, default is 100 times ±1 time
Torque application time 0-99H59M59S, can be preset
Power outage protection With power-off data storage and memory function
Fixture A set of universal clamps

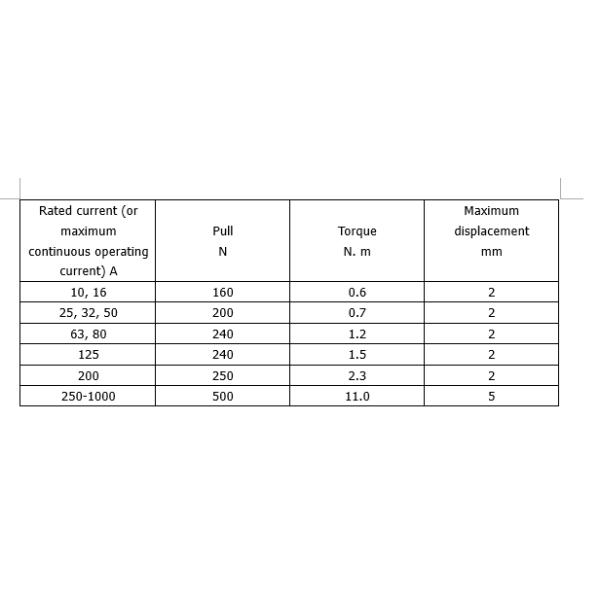

Weight matching selection table
