Specifications
Brand Name :
Sinuo
Model Number :
SN448-E4
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
1 sets/month
Delivery Time :
45 days
Packaging Details :
Other
Spray distance :
2.5 to 3 meters
Testing time :
1s to 9999h,59 min, and 59s
Water spray pressure :
30～150kPa
Water spray flow :
12.5±0.625(L/min)
Water tank material :
SUS304 stainless steel
Water tank size :
1000×3000×1000mm（W*D*H)
Customer sample specifications :
3*2.5*3m(L*W*H)
Existing room size :
6*8m(L*W)
Description


Charging Station Waterproof Testing Spray Test System IEC 60529 IPX5 IPX6

Complied Standards & Clauses

Conforms to IEC 60529:2013, ISO20653:2006, IEC60068-2-18:2000, etc.

Equipment Overview

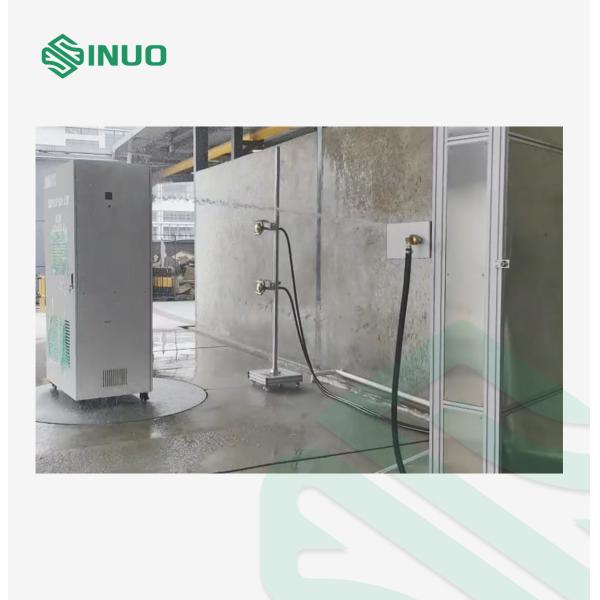

The equipment consists mainly of a water collection pool, water storage tank, water replenishment system, drainage system, spraying system, electrical control system, and pump system.

The equipment occupies a floor area of 6.5m (length) × 6.5m (width) × 3m (height), with a door opening size of 2000mm × 2800mm, featuring manual double doors made of tempered glass. Please have the user provide the site layout plan. (Refer to the construction site plan for details.)

Application: used for conducting IPX5 waterproof testing on outdoor ESS systems, the automatic spraying system is applied to the front, rear, left, right, and top surfaces of the outdoor ESS system.


Technical Parameters

Water spray pressure 30～150kPa
Inner diameter of spray hole

φ6.3 mm(IPX5),Ф12.5mm (IPX6)

Charging Station Waterproof Testing Spray Test System IEC 60529 IPX5 IPX6
Movement speed

The movement speed of the support frame is adjustable.
Existing room size at user site 6*8m(L*W)
Customer sample specifications 3*2.5*3m(L*W*H)
Pre-set testing time Adjustable from 1s to 9999h,59 min, and 59s.
Tested surface The five surfaces of the outdoor ESS system, excluding the bottom.
Spray coverage requirements

The automatic spraying system needs to cover the front, rear, left, right, and top surfaces.
Spray method

The entire test process involves fully automatic spraying, and the movement path of the spraying system does not interfere with the object being tested.

The test process complies with the IPX5 protection level requirements as specified in IEC 60529:2013.
Testing time Adjustable from 1s to 9999h,59 min, and 59s.
Side-moving spraying frame
Main parameters of side movable spray rack The frame is made of 40*40*3mm aluminum
The sealing plate is made of 1.2mm stainless steel 304# plate
IPX5 mobile device: servo motor gear connected to the rack for transmission
Swing transmission spray device: adjustable eccentric wheel swing mechanism (swing angle is achieved by adjusting the eccentric distance)
Spraying frame stroke: Equipped with a servo motor gear rack mechanism, the movable stroke is 3 m.
Swing motor Servo motor and reducer
Mobile Motor Servo motor and reducer
Gear Stainless steel gear
Rack Stainless steel rack

Details

Charging Station Waterproof Testing Spray Test System IEC 60529 IPX5 IPX6Charging Station Waterproof Testing Spray Test System IEC 60529 IPX5 IPX6
