ISO 6270-2 Motor Vehicle Components Condensation Environmental Test Chamber
ISO 6270-2 Motor Vehicle Components Condensation Environmental Test Chamber
ISO 6270-2 Motor Vehicle Components Condensation Environmental Test Chamber
ISO 6270-2 Motor Vehicle Components Condensation Environmental Test Chamber
ISO 6270-2 Motor Vehicle Components Condensation Environmental Test Chamber
ISO 6270-2 Motor Vehicle Components Condensation Environmental Test Chamber
ISO 6270-2 Motor Vehicle Components Condensation Environmental Test Chamber
ISO 6270-2 Motor Vehicle Components Condensation Environmental Test Chamber
Specifications
Brand Name :
Sinuo
Model Number :
SN8817
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
10 sets/month
Delivery Time :
60 days
Packaging Details :
Plywood case
Working area :
600*500*830mm(W*D*H)
External size :
1200*750*1300mm(W*D*H)
Temperature range :
Ambient～60℃
Temperature fluctuation :
≤1℃
Heating Rate :
≥10℃/30min
Cooling Rate :
≥65℃/75min
Timing range :
1～9999 mins/hours
Lead hole :
2 Φ100mm
Description

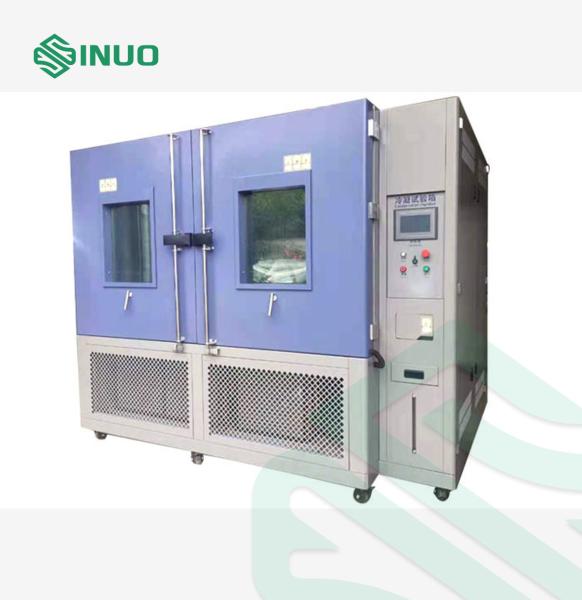

ISO 6270-2 Motor Vehicle Components Condensation Environmental Test Chamber

Complied Standards & Clauses

DIN 50017: atmospheres and their technical application-Condensation water test atmospheres

IEC 61300-2-48 Fibre optic interconnecting devices and passive components-Basic test and measurement procedures-Part 2-48: Tests-Temperature-humidity cycling and etc.

VW80000 clause 12.6 Electric and Electronic Components in Motor Vehicles up to 3.5t General Requirements, Test Conditions, and Tests

ISO 6270-2 Paints and varnishes — Determination of resistance to humidity — Part 2: Procedure for exposing test specimens in condensation-water atmospheres

Equipment Overview

The sample is placed in the test box and subjected to several temperature-humidity cycles defined in the relevant specifications. During the entire test, the attenuation of the sample is monitored. This testing machine is mainly used for the influence of humidity and temperature changes that may occur during operation, storage or transportation of optical fiber interconnection devices, electronics, communications, and aerospace products.

Technical Parameters

Size Working area

600*500*830mm(W*D*H)

Can be customized
External size

Approx. 1200*750*1300mm(W*D*H)

Or according to actual design
Performance Temperature range Ambient～60℃ (common used temperature: 38℃/49℃/60℃)
Temperature deviation ±2℃
Temperature accuracy 0.1 ℃
Heating rate ≥10℃/30min (with load of 20KG steel,meet condensation test of VW80000-2013)
Temperature fluctuation ≤1℃ (≤±0.5℃, tested according to GB/T5170-2008)
Heating method Electric heating, PID adjustment, actuator: solid state relay
Cooling rate ≥65℃/75min (with load of 20KG steel,meet condensation test of VW80000-2013)
Dehumidification system Using evaporator coil dew point temperature laminar flow contact dehumidification method
Heating system New-type ceramic heating frame, with heating wire imported from Germany in the middle, thick wire diameter, high-temperature resistance, dry burning resistance

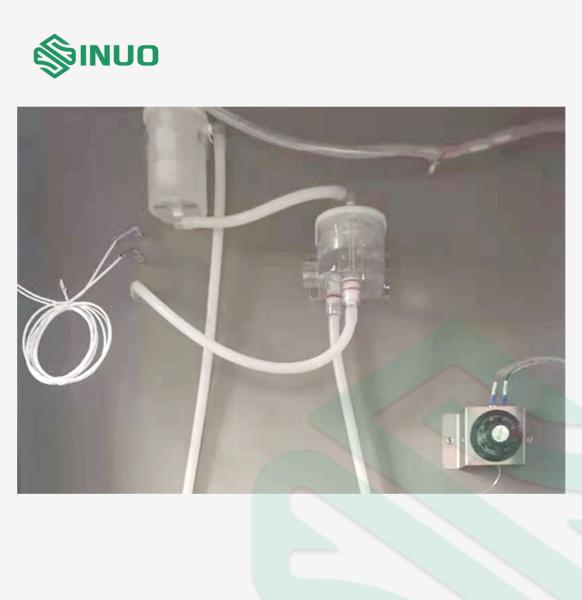

Humidification system For external humidification, the humidification tube adopts a U-shaped design and over-temperature probe hole,
Water supply system The humidification water supply adopts automatic control, and the residual water can be recycled, saving water and reducing consumption
Cooling System Fully enclosed Tecumseh compressor imported from France, using R404 and R23 DuPont environmentally friendly refrigerant
Condensate outlet With outlet holes for studio condensate and unit condensate
Humidity range 100%RH (+0%, -5%, during condensation)
Timing range 1～9999 mins/hours
Materials Inner wall material SUS304 Stainless steel plate
Outer wall material A3 iron plate sprayed
Insulation material Rigid polyurethane foam
Humidification tank High-quality 304 stainless steel water tank
Sample rack 2PCS, SUS304 stainless steel material, adjustable spacing storage track, sample rack can be adjusted up and down according to needs, evenly bearing 30KG/layer.
Light There is a lighting lamp on the top of the observation window, which is controlled by the switch outside the door, which is convenient and clear to observation
Movable casters

4 movable casters
Observation window Three-layer explosion-proof tempered glass window
Details

ISO 6270-2 Motor Vehicle Components Condensation Environmental Test ChamberISO 6270-2 Motor Vehicle Components Condensation Environmental Test Chamber
