CODT 5-years warranty sport light led stadium flood lights for football field lighting stadium lighting fixtures

• Applications:

Uranus series sports light can be used in outdoor sports arena, exhibition hall, sports center, stadium, large square, shipyard, logistic center, etc.

• Features:

IP66 ingress protection rating, ideal for wet locations.

Great impact resistance, ideal for harsh environment.

Modular design meets different project requirements and flexibility.

No mercury, friendly to environment.

High efficacy - up to 140 lumens per watt.

• Temperature performance data:

Ambient temperature : -40°C to 45°C (-40°F to 113°F)

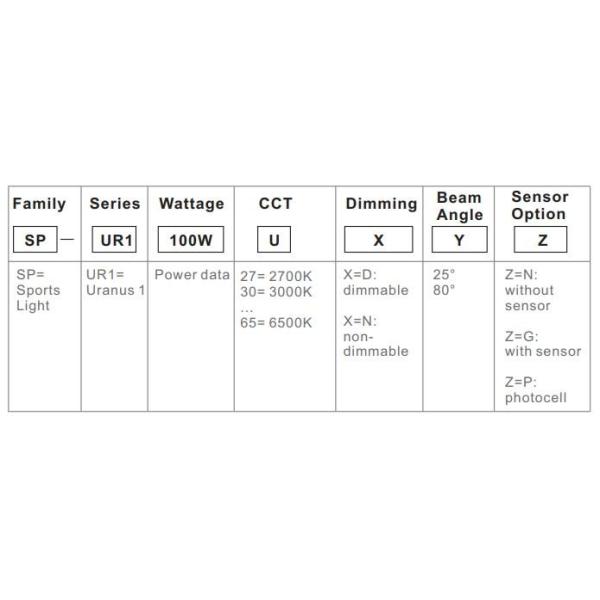

• Ordering information:

Part number example

Example: SP-UR1 110W UXYZ

• Technical datas:

• Packing information:

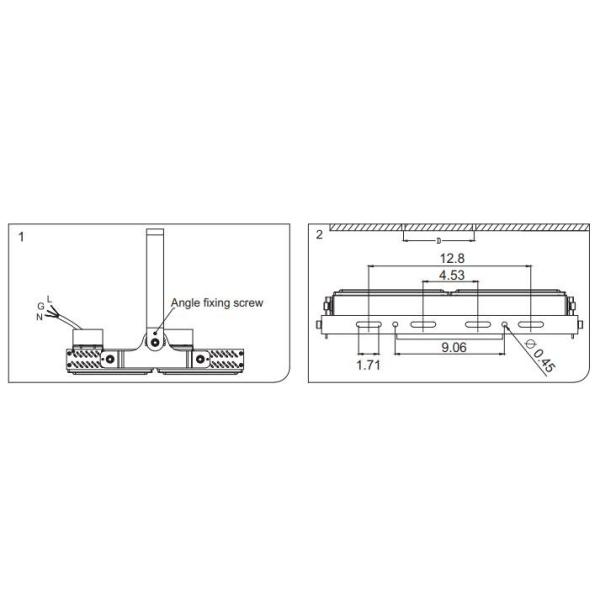

• Installation:

1. Drill appropriate knockout according to the size of the mounting bracket.

2. Once fixture is positioned, secure the fixture with screws tightly.

3. Make all necessary wiring connections, observing proper voltage and polarity. Ensure that wires are seated properly and not being pinched.

4. Once connections are completely made, carefully push all wires down into the housing and secure it tightly.

5. Use aiming sight to orient desired mounting angle.

6. Installation and service of luminaires should be performed by a qualified licensed electrician.

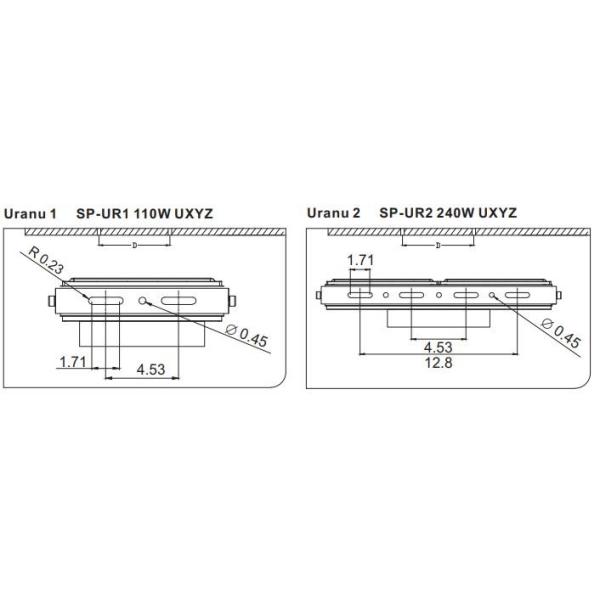

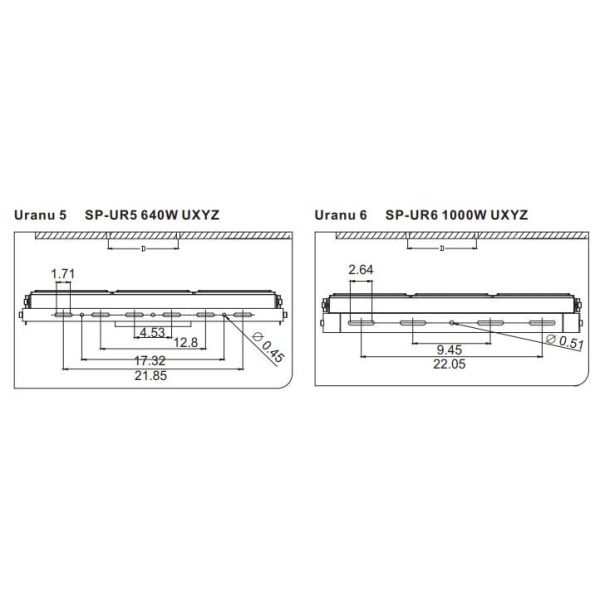

* Remark: the unit of datas in installation diagrams is all in inches.

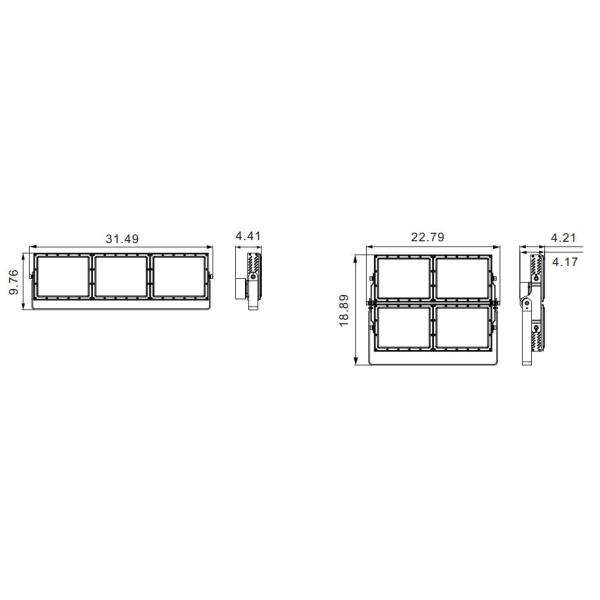

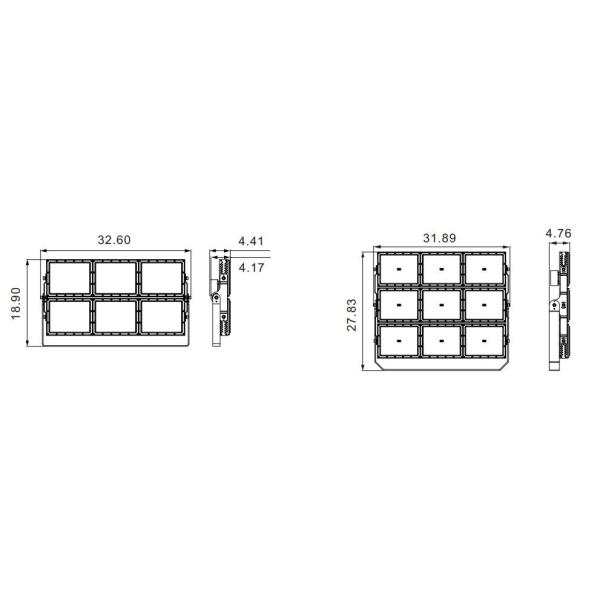

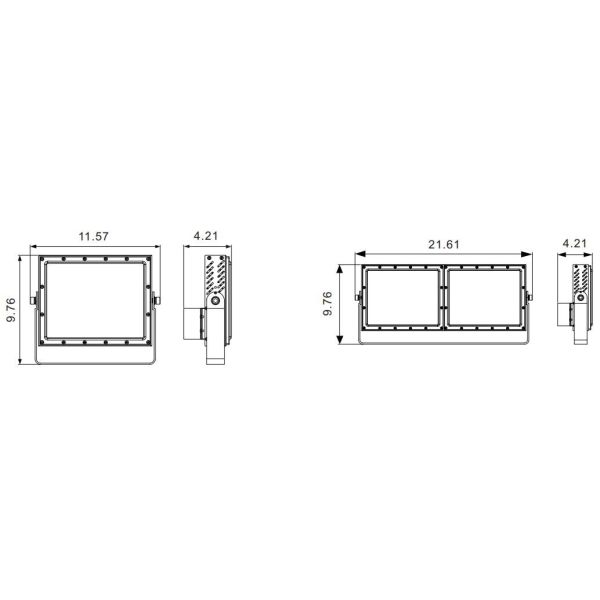

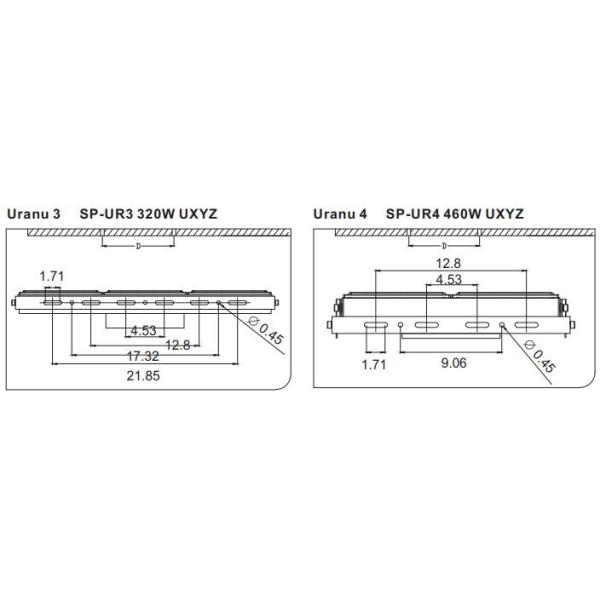

• Dimensions (in inches):

Uranu 1 SP-UR1 110W UXYZ Uranu 2 SP-UR2 240W UXYZ

Uranu 3 SP-UR3 320W UXYZ Uranu 4 SP-UR4 460W UXYZ

Uranu 5 SP-UR5 640W UXYZ Uranu 6 SP-UR6 1000W UXYZ

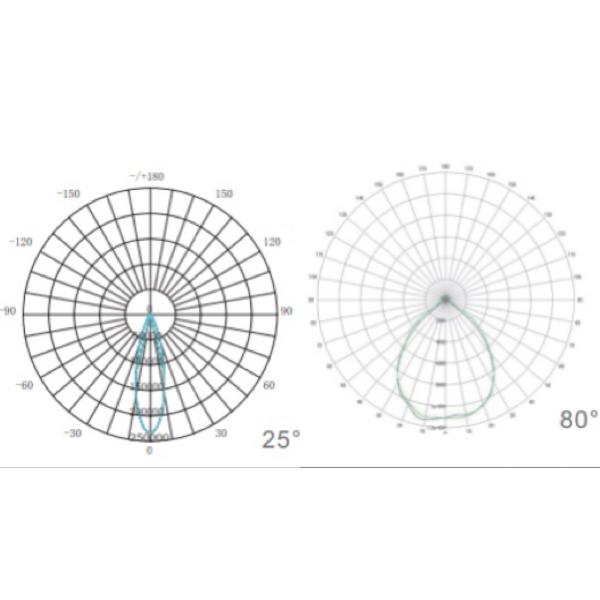

• Photometrics:

• QA:

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.
